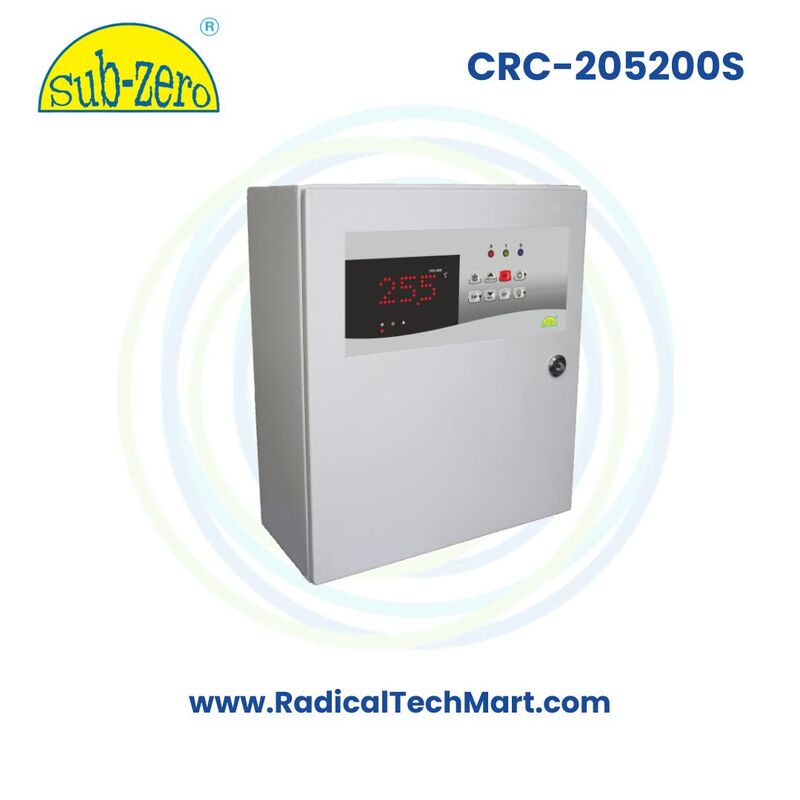

CRC-205200S Electrical Panel for Low Temperature Cold Room | 7.5–10 HP | Dot Matrix Display
The CRC-205200S Electrical Panel is designed for low temperature cold rooms (7.5–10 HP), featuring a 4-digit dot matrix display, auto/manual defrost, compressor protection, quick freeze, and RS-485 Modbus connectivity. Built with rugged metal housing for reliable cold storage operation.
Product Summary
The CRC-205200S Electrical Panel is a robust and efficient solution for negative temperature cold rooms. With a 4-digit, 1” dot matrix display, time/temperature-based defrost, and multiple safety protections, this panel ensures accurate temperature control and reliable performance for critical cold storage applications.
Key Features
Capacity: 7.5–10 HP
4-digit, 1” dot matrix display for clear monitoring
Temperature range: –50°C to +50°C with 0.1°C resolution
Auto/Manual defrost with selectable time & temperature modes
Quick Freeze mode for faster cooling
HP/LP, OPS, AUX, Door input fault protections
Compressor current sensing (0–20A / 50A) & protection
R, Y, B phase indication and fault sensing
RS-485 Modbus RTU communication for integration
Last 10 fault record memory
Internal & external buzzer for alerts
Rugged powder-coated steel housing, wall-mountable
Applications
Negative temperature cold rooms
Food & beverage cold storage
Pharma & biotech cold chains
Frozen goods & ice cream storage
Industrial refrigeration systems
Product Benefits
High reliability: Protects compressor and refrigeration system from faults
Energy efficiency: Smart defrost and quick freeze reduce power consumption
Easy operation: User-friendly interface with dot matrix display
Industrial safety: Multi-layer protections including MCB & phase monitoring
Connectivity ready: RS-485 Modbus RTU for SCADA/BMS integration
FAQs
Q1. What is the supported temperature range?
It supports –50°C to +50°C with 0.1°C resolution.
Q2. Can this panel integrate with automation systems?
Yes, it has RS-485 Modbus RTU connectivity for SCADA/BMS.
Q3. What protections are included?
Compressor current sensing, HP/LP, OPS, AUX faults, door open input, and phase monitoring.
Q4. Is it suitable for pharmaceutical storage?
Yes, it is widely used in pharma cold chains requiring precise and reliable control.
