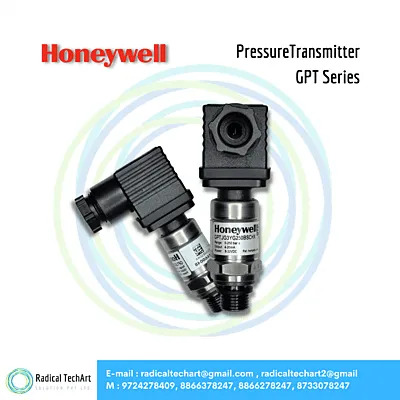

GPT Series Pressure Transmitter
Non-returnable
₹2,600.00 ₹3,200.00
FEATURES:
- Fully media isolated
- Pressure range: 5MPa to 35MPa (absolute and sealed gage)
- Output: 0-10 Vdc, 1 to 6Vdc , 4-20mA or 0.5Vdc to 4.5Vdc
- Fully calibrated and temperature compensated
- Total Error Band: ±2.0 %FSS from 0 °C to 70 °C
- Insulation resistance: >100 Mohm, 500 Vdc
- Dielectric strength: 750 Vac, 1 min.
- EMC: Heavy Industrial Level
- Ingress protection up to IP67
- Response time: <2 ms
- RoHS, REACH, and CE compliant
Product Details
