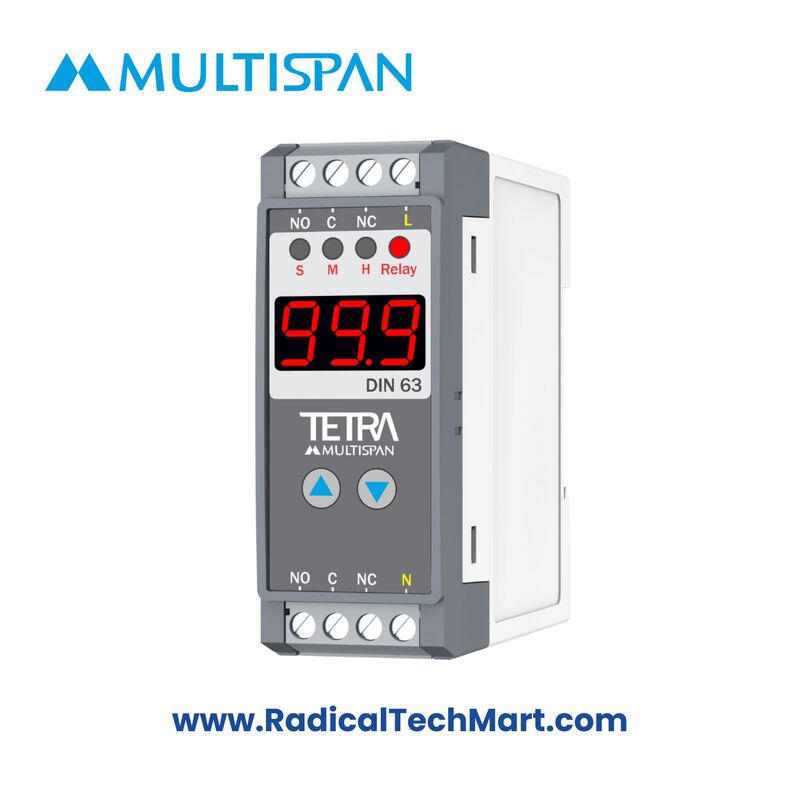

Multispan DIN 63 Multi-Range DIN Rail Timer (0–999 Sec/Min/Hr)
Compact DIN-rail timer with 0–999 sec/min/hr range, 3-digit LED display, relay output, and multi-mode delay functions for automation and industrial process timing.
The Multispan DIN 63 is a compact industrial timer designed for DIN rail installation, offering flexible time ranges (0–999 sec/min/hr), a bright 3-digit LED display, and reliable relay output. Ideal for automation, packaging, and process machinery where accurate and configurable timing control is required.
Key Features (Bulleted)
3-digit 7-segment LED display for clear visibility
Up/Down counting direction selectable
Wide 0–999 sec/min/hr time range
Decimal point option for fine timing accuracy
One relay output: 2 C/O contacts (5A @ 230V AC)
Wide supply range: 100–270V AC
Compact DIN rail design for quick installation
Operates in high humidity up to 95% RH
Rugged ABS body for industrial durability
Technical Specifications (Table)
| Parameter | Specification |
|---|---|
| Model | Multispan DIN 63 |
| Display | 3-digit 7-segment LED |
| Timing Range | 0–999 sec/min/hr |
| Timer Mode | Up/Down selectable |
| Decimal Selection | Yes |
| Output Relay | 2 C/O, 5A @ 230V AC |
| Supply Voltage | 100–270V AC |
| Mounting | DIN Rail |
| Dimensions | 76 × 28 × 85 mm |
| Humidity | Up to 95% RH, non-condensing |
| Enclosure | ABS industrial body |
Applications
Packaging and sealing machines
Printing and labeling equipment
Furnaces, boilers & heat processes
Industrial automation panels
Food & beverage production systems
What’s in the Box?
1 × Multispan DIN 63 Timer
DIN rail mounting clip
Quick installation leaflet
Warranty information
FAQ
Q1. What is the timing range of the DIN 63 timer?
It supports 0–999 seconds, minutes, or hours, selectable via internal settings.
Q2. Does it work in humid environments?
Yes, it operates reliably up to 95% RH (non-condensing).
Q3. Can I mount it directly on a DIN rail?
Yes, it is designed for 35 mm DIN rail mounting.
Q4. What type of relay output does it provide?
It includes a 2 C/O relay rated at 5A, 230V AC.
Q5. Can this timer be used for automation panels?
Absolutely—it is widely used in packaging, process automation, and industrial panels.
