(DPG) pa/Kpa

Pressure Limits: -20" Hg to 15 PSI (-0.677 bar to 1.034 bar)

Media Compatibility: Air and compatible gasses Accuracy: +/- 2% full scale (+/- 3% on -0 and +/-4% on -00) throughout range at 70°F (21°C)

Temperature Ranges: 20° to 140°F (-7° to 60°C)

Housing Material: Die cast aluminum case and bezel, with acrylic cover

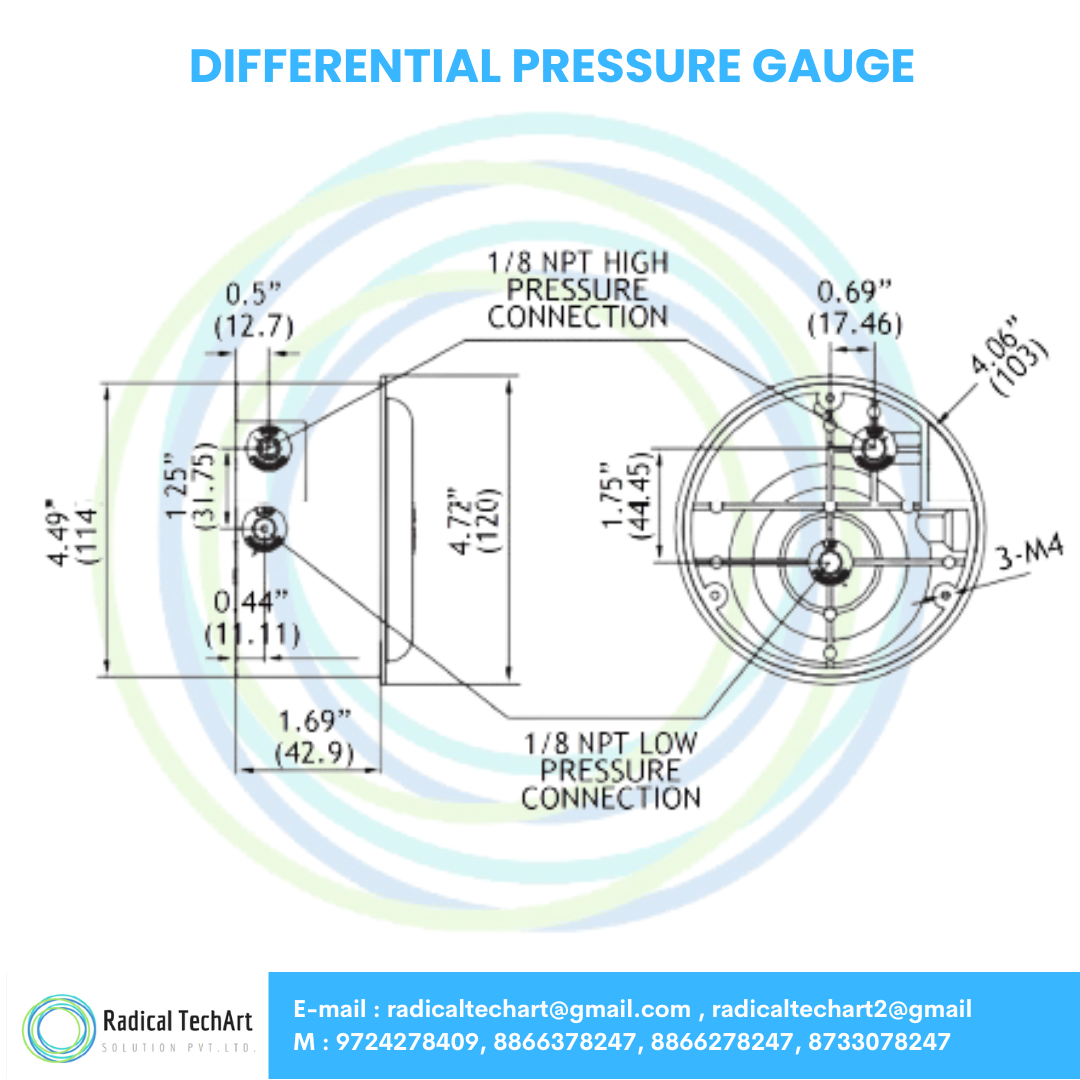

Process Connection: 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back.

Weight: 1 lb 2 oz (510 g)

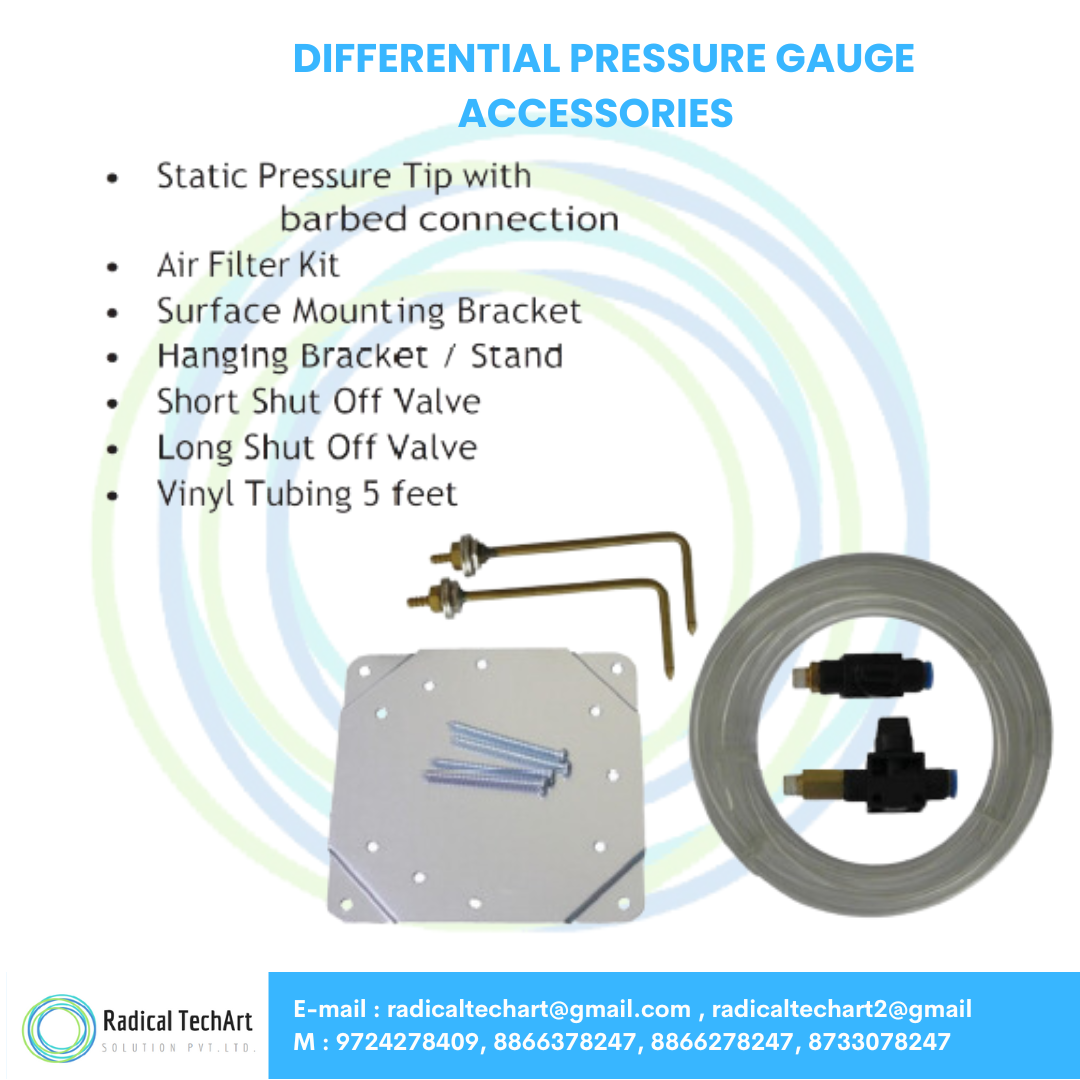

Accessories: Two 1/8" NPT barbed fittings, two 1/8" NPT plugs, and three mounting tabs and screws

Warranty: 1 years

Approvals: RoHS, CE
