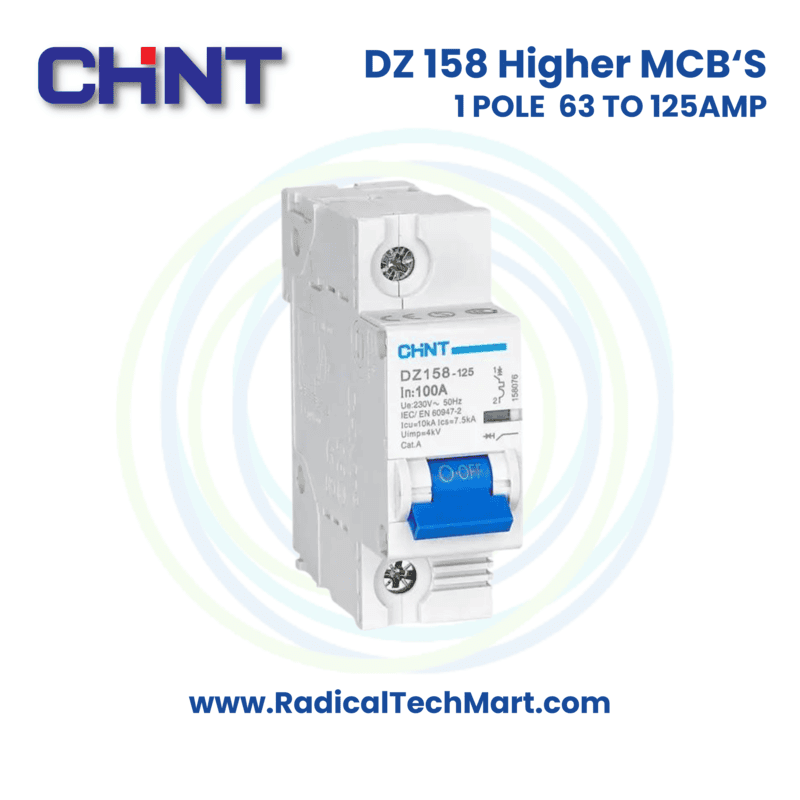

DZ 158 10kA 1 Pole Higher AMP MCB

Product Summary:
 The DZ 158 10kA 1 Pole MCB is designed for effective overload and short-circuit protection. It offers high performance in critical applications, including industrial machinery, electrical panels, and power distribution systems.

Key Features:

Rated Current: 63A, 80A, 100A, 125A

Breaking Capacity: 10 kA

Voltage: 240/415V AC

Compliance with IEC/EN 60947-2 standards

Compact design for easy installation

Thermal-magnetic tripping for high-performance protection

Flame retardant casing for enhanced safety

Long operational life and reliable performance

Application:

Industrial machinery and equipment protection

Electrical panels in factories and warehouses

Commercial buildings with heavy electrical loads

Power distribution networks

Backup protection for generators and transformers

HVAC systems in large-scale industries

Product Benefits:

Provides consistent overload and short-circuit protection

Ensures operational safety and compliance with global standards

Compact design allows for easier installation and space-saving

High breaking capacity ensures protection in high-load scenarios

Long-lasting performance reduces the need for frequent replacements

FAQs:

Q1: What is the breaking capacity of the DZ 158 MCB?
A1: The DZ 158 MCB has a breaking capacity of 10 kA, ensuring protection against high-energy faults.

Q2: What is the rated current range for the DZ 158 1 Pole MCB?
A2: The DZ 158 1 Pole MCB is available in 63A, 80A, 100A, and 125A ratings.

Q3: Can this MCB be used in residential applications?
A3: Yes, the DZ 158 MCB is suitable for both industrial and residential applications, especially where high electrical loads are present.
