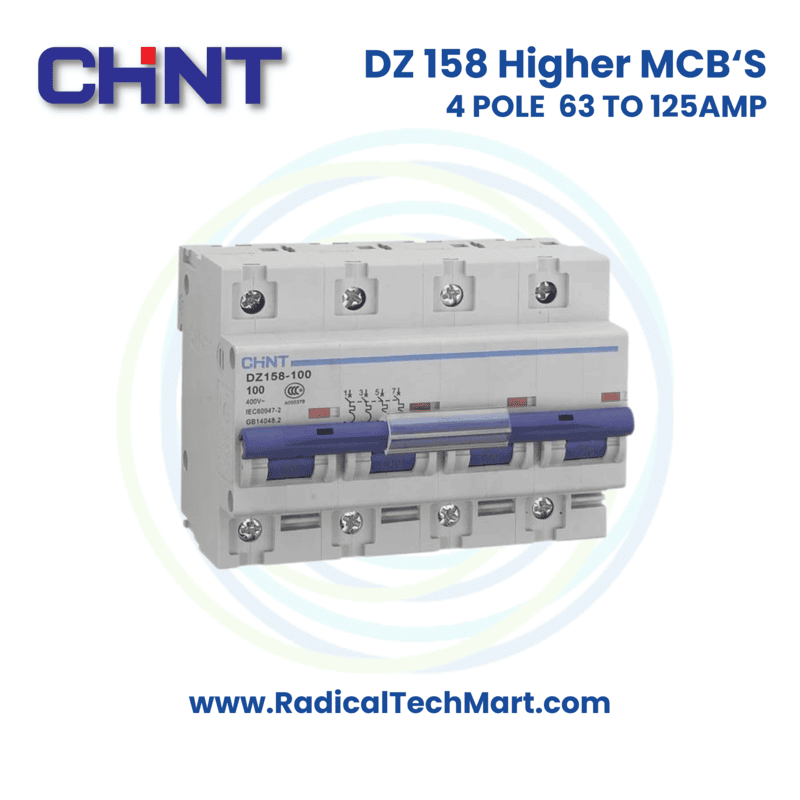

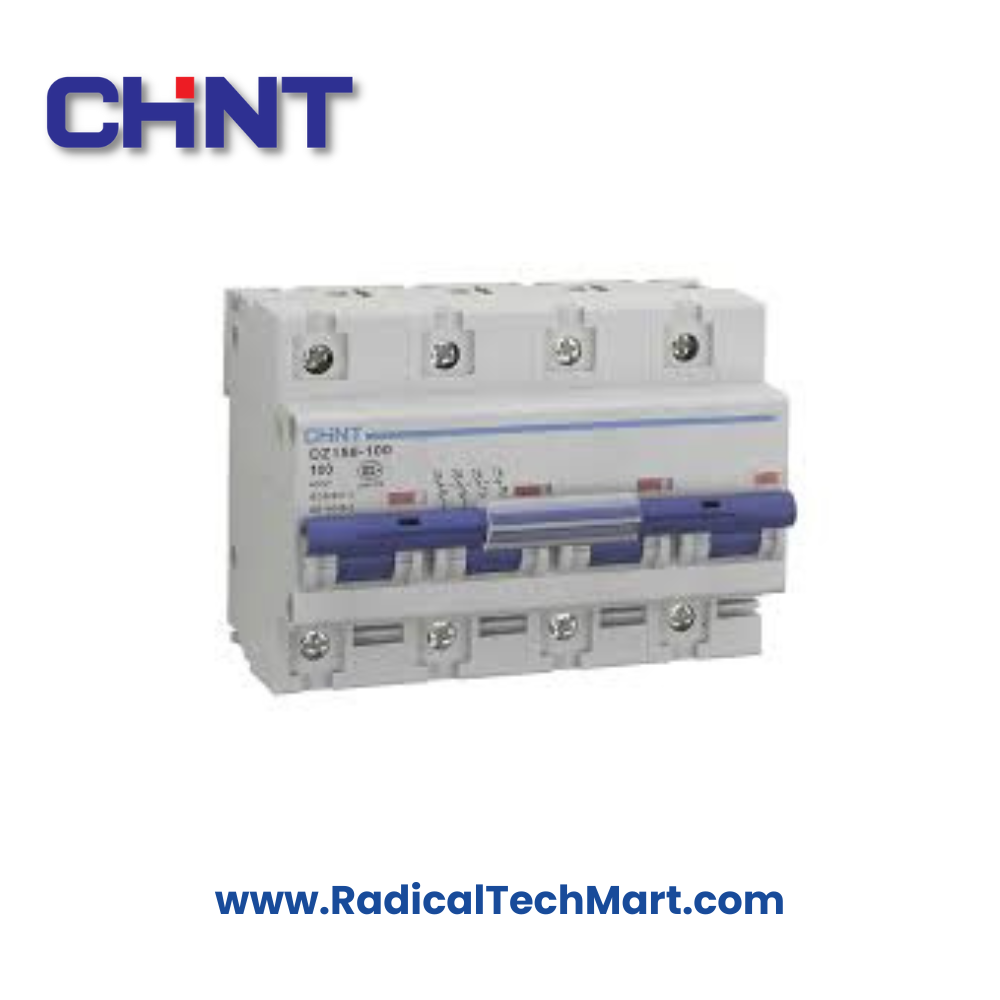

DZ 158 10kA 4 Pole (Higher AMP MCB)

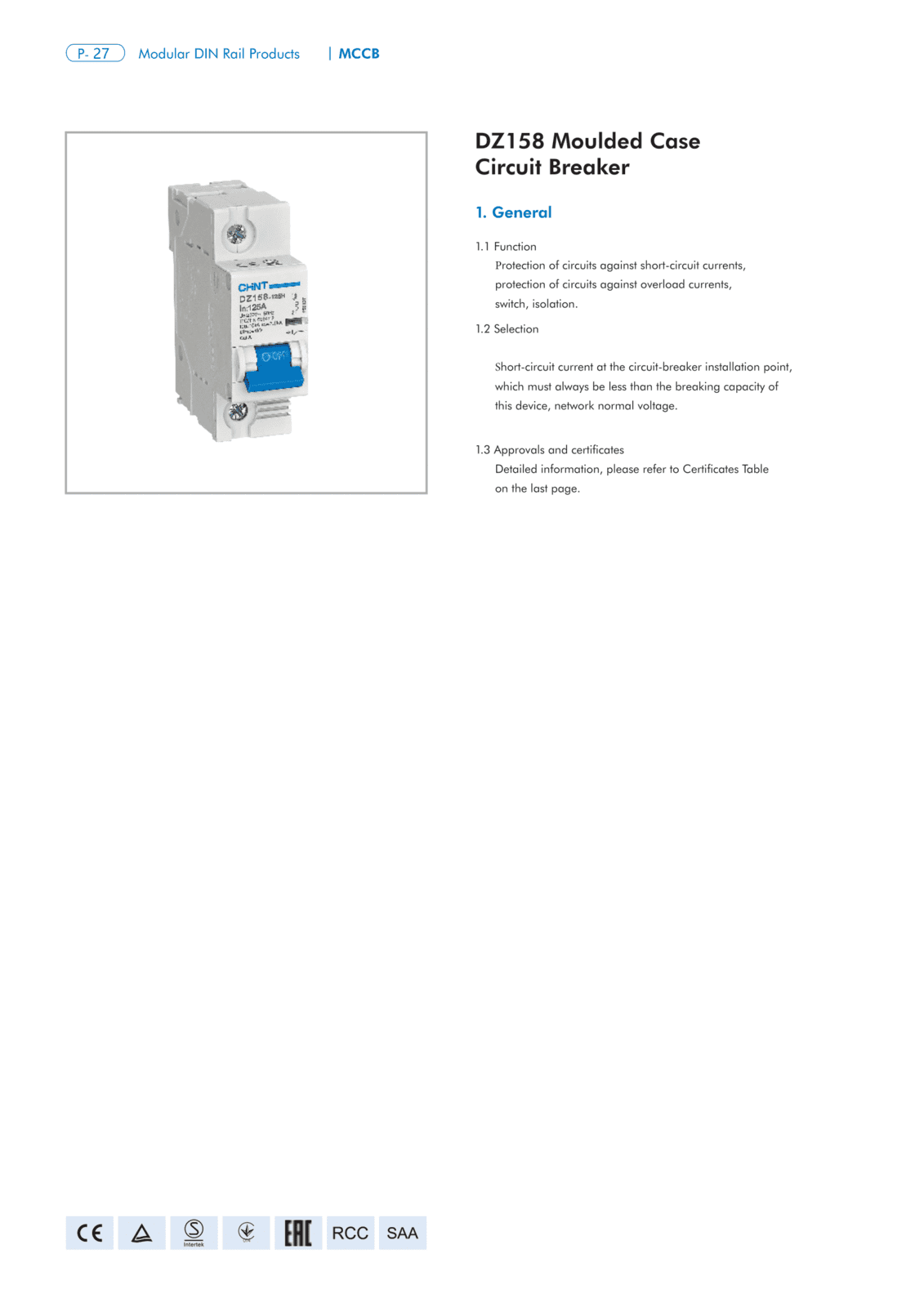

A. Product Overview
CHINT DZ158 series is a higher-ampere DIN-rail mounted circuit breaker positioned between conventional MCBs and MCCBs. The DZ158 10kA 4-pole variant is designed to protect three-phase systems with neutral (3P+N) against overload and short-circuit faults while also serving as a switching and isolation device. According to the catalog, the DZ158 frame supports rated currents above typical 63 A MCB limits, with variants up to 125 A and a rated breaking capacity of 10 kA for the “H” version. It complies with IEC/EN 60947-2, making it suitable for industrial LV distribution where fault levels are higher and cable cross-sections are larger than standard final circuits.

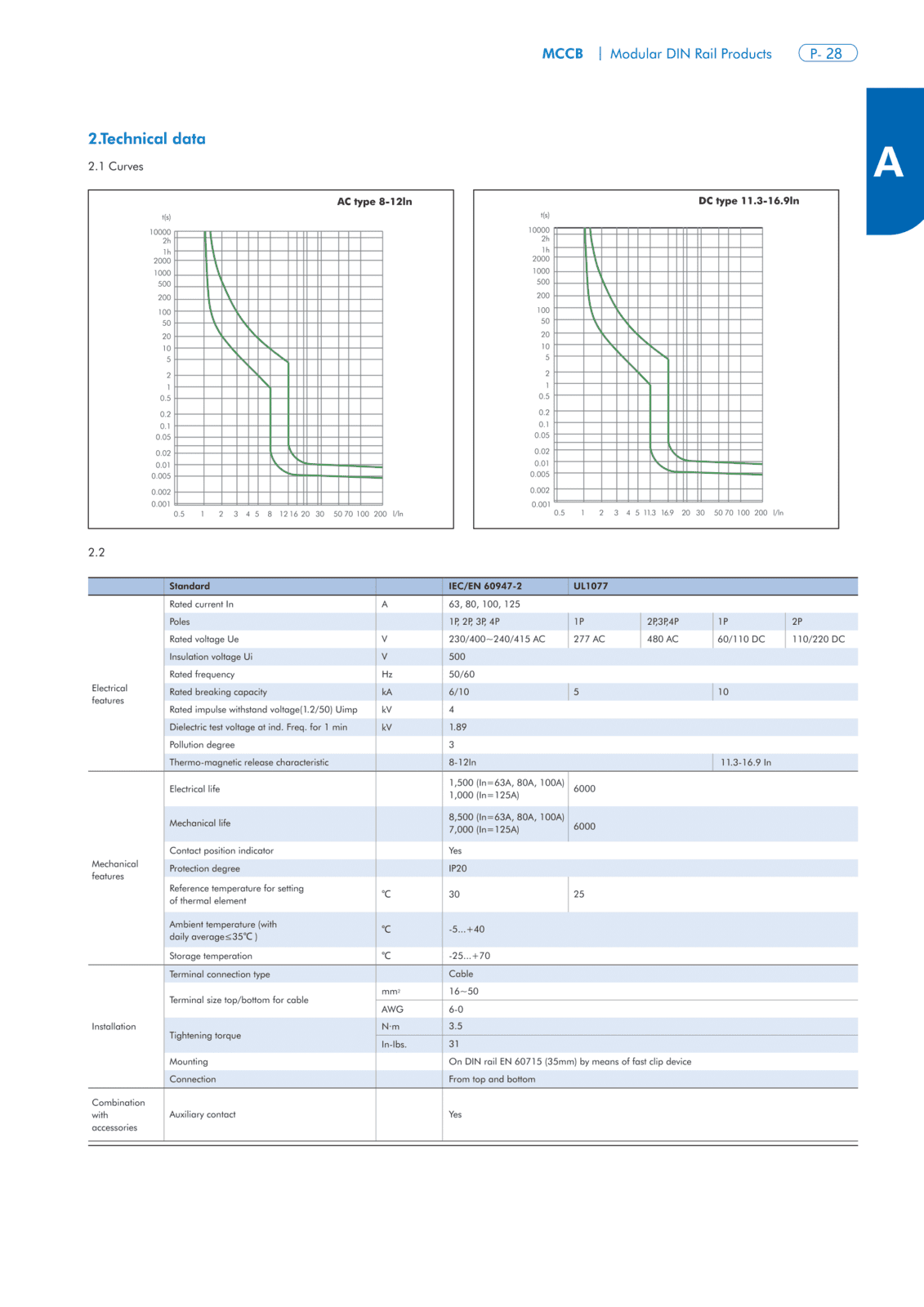

B. Working Principle
The DZ158 operates using a thermo-magnetic release system. Under overload conditions, the thermal element responds to sustained overcurrent and trips the breaker to prevent conductor overheating. Under short-circuit conditions, the magnetic release trips instantaneously to rapidly isolate the fault and limit let-through energy. The 4-pole configuration ensures simultaneous disconnection of all live conductors and neutral, which is critical in TN-S / TN-C-S systems to avoid neutral shift, equipment damage, or unsafe maintenance conditions. The device also allows manual ON/OFF switching for isolation during maintenance activities.

C. Key Applications

• Oil & Gas: Utility distribution boards in control rooms, analyzer shelters, skid-mounted packages

• Chemical & Process: Main and sub-distribution feeders supplying MCCs, heater panels, and utility loads

• Power & Utilities: Auxiliary LT distribution panels, station service feeders

• Pharma: Clean utility and facility DBs feeding HVAC, utilities, and process auxiliaries

• Food & Beverage: Process utility feeders, cold storage and refrigeration sub-distribution

• Water & Wastewater: Pump house DBs, MCC incomers/outgoings for medium-current feeders

• HVAC & Utilities: Chiller panels, AHU distribution boards, large HVAC auxiliary feeders

D. Why Industries Use This Product
In many industrial installations, standard MCBs are insufficient due to higher continuous currents and higher prospective fault levels. The DZ158 10kA series provides a compact DIN-rail solution where an MCCB footprint is not desired, while still delivering adequate short-circuit breaking capacity. Industries use this product to reduce fire risk, prevent cable insulation damage, and ensure reliable fault isolation. Incorrect selection—such as underestimating fault current, ignoring ambient temperature derating, or using undersized conductors—can lead to nuisance tripping, thermal stress at terminals, or failure to clear faults. The catalog specifies installation on 35 mm DIN rail, copper conductors only, and defined tightening torque to minimize overheating and long-term reliability issues.

E. Suitable Buyers

• OEMs: Panel builders designing compact LV distribution boards with higher current outgoing feeders

• EPC Contractors: Industrial electrical packages where standardized IEC 60947-2 breakers are specified

• Maintenance & Utilities Teams: Commonly used for replacement in existing DZ158-based panels and standardized DBs

• Plant Engineering & Procurement: Preferred in retrofit projects where higher current protection is needed without migrating to full MCCB systems, supporting easier spares management and DIN-rail layouts

Quick Answers

What is DZ158 10kA 4 Pole MCB?
It is a CHINT high-current DIN-rail circuit breaker designed for overload and short-circuit protection of three-phase four-wire LV circuits, with a rated breaking capacity of 10 kA.

Where is DZ158 10kA 4 Pole used?
Used in industrial and commercial low-voltage distribution boards as incomers or outgoing feeders supplying medium-current loads and utility panels.

Why is DZ158 required in industry?
It bridges the gap between standard MCBs and MCCBs, offering higher current ratings and fault-level handling while retaining compact DIN-rail mounting.

Who typically uses DZ158 4P breakers?
Panel OEMs, EPC contractors, plant maintenance teams, and industrial procurement engineers for standardized LV distribution and retrofit applications.

FAQ Section

1) Is DZ158 considered an MCB or MCCB?
DZ158 is often referred to as a higher-ampere MCB, but it is technically aligned with IEC/EN 60947-2 like MCCBs. It offers higher current ratings and breaking capacity than IEC 60898 MCBs while retaining DIN-rail mounting.

2) What is the advantage of a 4-pole breaker in industrial panels?
A 4-pole device disconnects all three phases and neutral simultaneously. This improves safety during maintenance, avoids neutral imbalance issues, and is recommended for sensitive industrial loads and utility feeders.

3) What current range is typically selected in DZ158 10kA series?

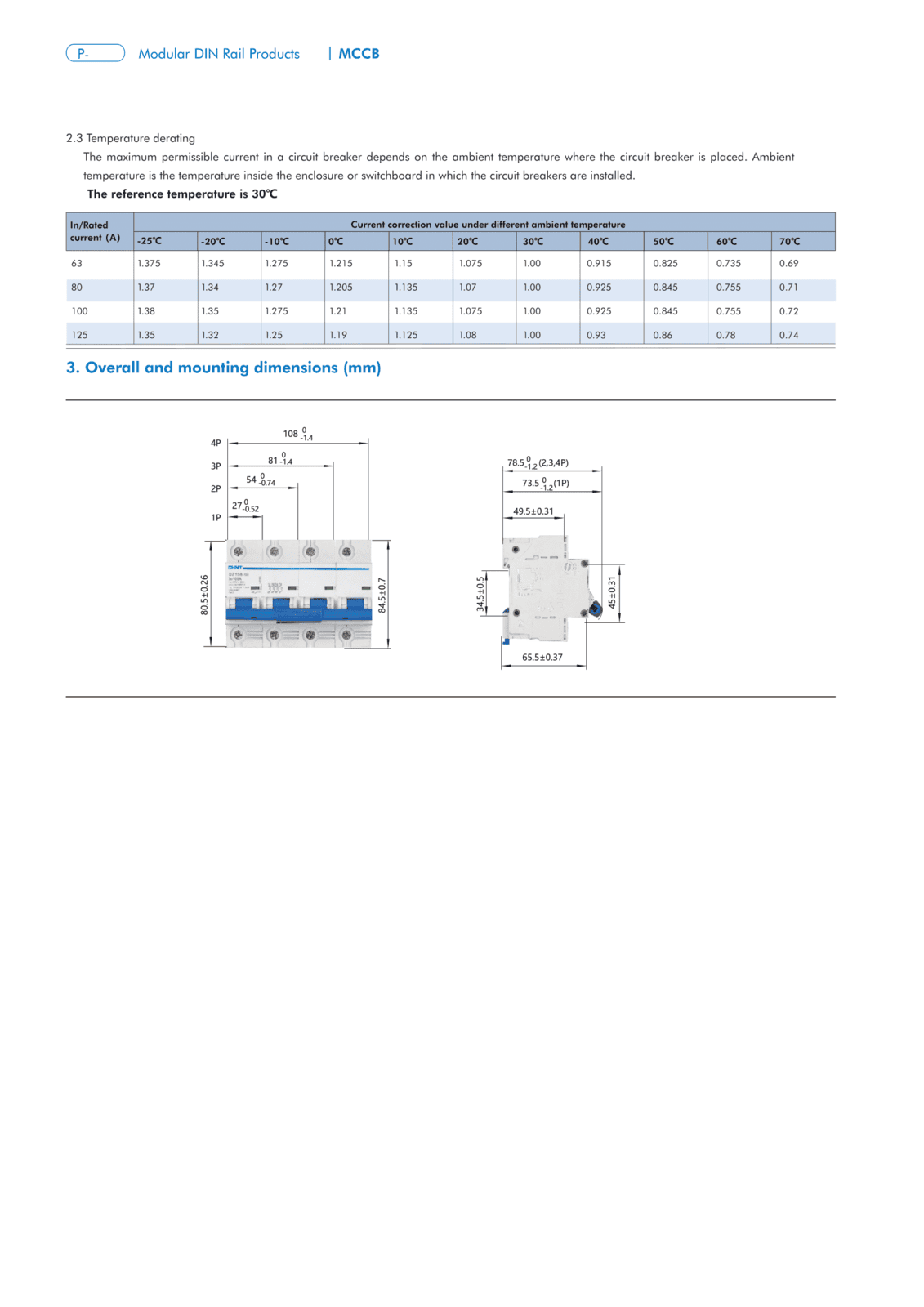

The catalog lists rated currents commonly used in industrial distribution such as 63 A, 80 A, 100 A, and 125 A, selected based on feeder load and ambient temperature derating.

4) Can DZ158 be used as a main incomer breaker?
Yes, it is commonly used as a main or sub-incomer in compact distribution boards where fault levels are within 10 kA and DIN-rail mounting is preferred over MCCB chassis mounting.

5) What installation practices are critical for reliability?
Use copper cables within the specified cross-section range, apply the recommended tightening torque, allow for ambient temperature derating, and ensure the available short-circuit current does not exceed the rated breaking capacity.
