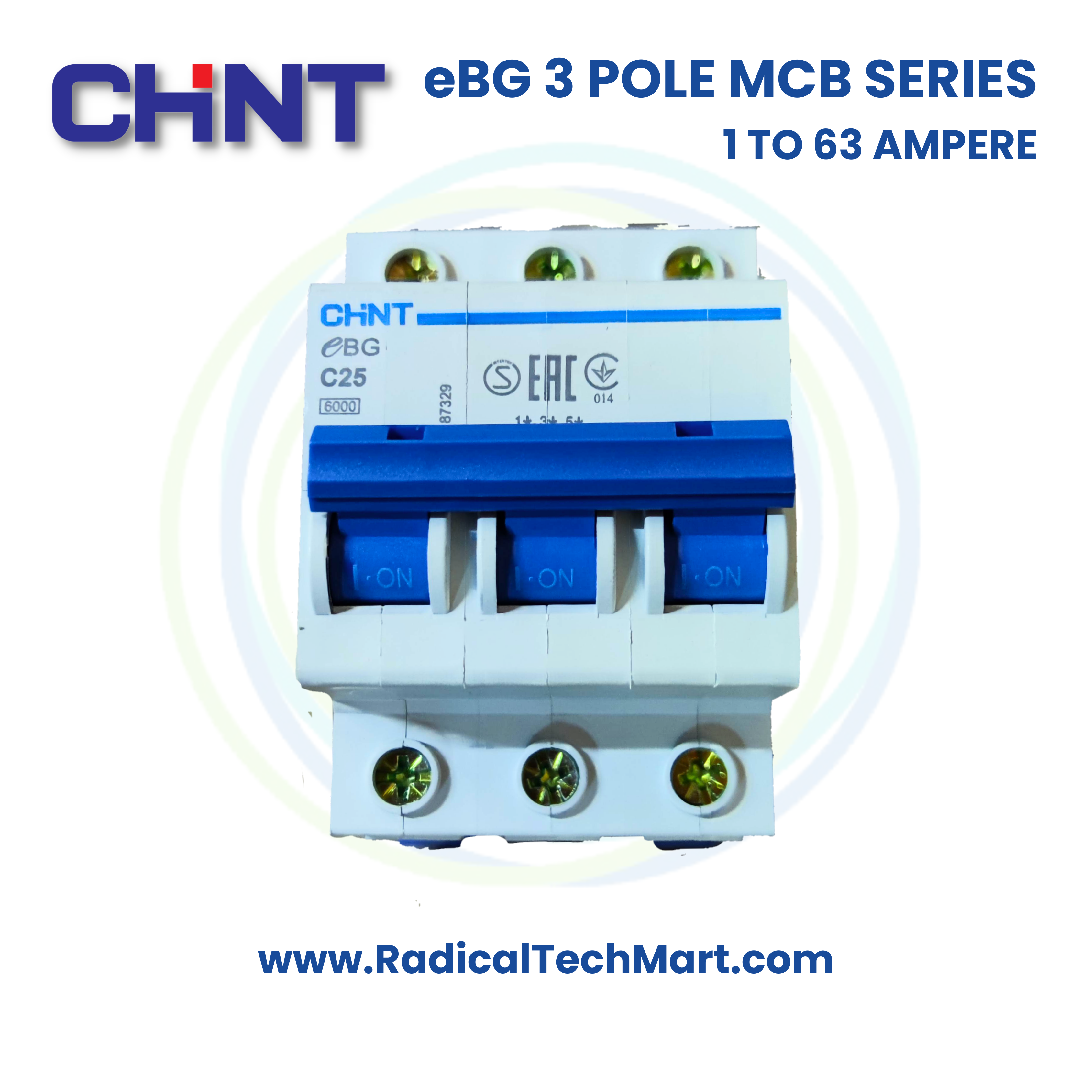

eBG 3 Pole MCB – Chint | Industrial Circuit Breaker

A. Product Overview

The CHINT eBG series 3 Pole MCB is a DIN-rail mounted miniature circuit breaker intended for protection, switching, and isolation of three-phase circuits. The eBG variant offers a higher breaking capacity compared to basic MCB ranges, making it suitable for industrial and commercial installations where prospective fault levels are higher.
As per the datasheet, the eBG series complies with IEC/EN 60898-1 and IEC/EN 60947-2, supporting use in both final distribution and industrial environments. It is available in common industrial current ratings and standard tripping curves (B, C, D), enabling proper coordination with different load characteristics.

B. Working Principle

The eBG 3P MCB uses a thermo-magnetic release mechanism. The thermal element responds to sustained overload currents and trips the breaker to prevent cable overheating. The magnetic element provides instantaneous tripping during short-circuit faults to rapidly isolate the circuit and limit fault energy.
The three-pole configuration ensures simultaneous disconnection of all three phases, which is critical for motor feeders and balanced three-phase loads to avoid phase loss, overheating, and equipment damage.

C. Key Applications

• Oil & Gas: Utility and auxiliary feeders in control room and package panels

• Chemical & Process: Three-phase feeders for pumps, agitators, and small MCC outgoings

• Power & Utilities: Auxiliary distribution boards and station service panels

• Pharma: AHU, utility motors, and facility electrical distribution

• Food & Beverage: Process equipment feeders and refrigeration auxiliaries

• Water & Wastewater: Pump panels, aerators, and blower feeders

• HVAC & Utilities: Chillers, cooling tower auxiliaries, and ventilation systems

D. Why Industries Use This Product

Three-phase circuits require reliable protection to prevent fire hazards, equipment damage, and unplanned downtime. The eBG 3 Pole MCB provides compact, DIN-rail-based protection where MCCBs may be oversized or unnecessary.
Industries select this MCB for standardized panel design, ease of replacement, and compliance with IEC standards. Incorrect selection—such as inadequate breaking capacity, wrong tripping curve, or poor termination—can result in nuisance tripping, failure to clear faults, or overheating at terminals. The datasheet specifies proper conductor sizes, tightening torque, ambient temperature limits, and derating requirements to ensure long-term reliability.

E. Suitable Buyers

• OEMs: Control panel and machine builders using standardized three-phase protection

• EPC Contractors: Industrial electrical packages and utility distribution boards

• Maintenance & Utilities Teams: Commonly used for replacement in existing DIN-rail panels

• Plant Engineering & Procurement: Preferred in retrofit projects requiring compact three-phase protection without migrating to MCCBs

Quick Answers

What is CHINT eBG 3 Pole MCB?
It is a three-pole miniature circuit breaker used for overload and short-circuit protection of three-phase low-voltage circuits.

Where is the eBG 3 Pole MCB used?
Used in industrial and commercial distribution boards, MCC outgoing feeders, HVAC panels, and utility electrical systems.

Why is eBG MCB required in industry?
It provides compact and reliable three-phase protection with adequate breaking capacity, reducing equipment damage and downtime risk.

Who typically uses the eBG 3 Pole MCB?
Panel builders, EPC contractors, maintenance teams, and industrial procurement engineers.

FAQ Section

1) What breaking capacity does the eBG series offer?
The datasheet indicates the eBG series offers higher breaking capacity than basic MCB ranges, suitable for industrial installations. Selection must ensure the available short-circuit current at the installation point is below the rated breaking capacity.

2) Which tripping curves are available for eBG MCBs?
eBG MCBs are available with B, C, and D tripping curves, allowing selection based on load inrush characteristics such as resistive loads, motors, and transformers.

3) Is the eBG 3 Pole MCB suitable for motor protection?
It can be used for short-circuit and overload protection of small motors when correctly selected. For comprehensive motor protection, coordination with thermal overload relays or motor protection breakers is recommended.

4) Can eBG MCBs be used as isolators?
Yes. In addition to protection, the eBG MCB functions as a switch and isolation device for maintenance purposes, as specified in the datasheet.

5) What installation practices are critical?
Correct DIN rail mounting, use of copper conductors within specified cross-sections, proper tightening torque, and allowance for ambient temperature derating are critical to avoid overheating and nuisance tripping.
