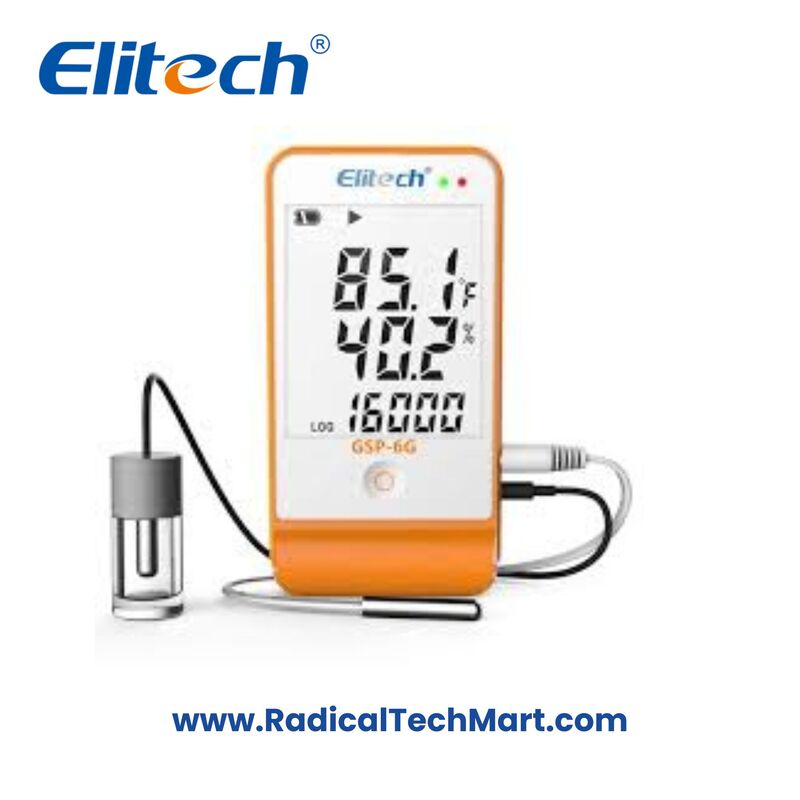

Elitech GSP-6G Temperature and Humidity Data Logger

A) Product overview

Elitech GSP-6G is a professional temperature and humidity data logger built for regulated cold chain and life science monitoring. It uses dual external sensors, including a glycol bottle temperature sensor that better represents actual vaccine/product temperature compared to air temperature alone. With a wide measurement range, high accuracy, LCD display, buzzer alarm, and 16,000-point memory, it supports reliable monitoring in storage and transport. Data can be downloaded via USB and exported in PDF, Excel, or TXT using ElitechLog software on Windows or macOS. The device supports dual power options (USB-powered or lithium battery) and is certified with EN12830, CE, and ROHS.

Key specs (quick):

• Temperature range: -40°C to 85°C

• Humidity range: 0 to 100%RH

• Accuracy: ±0.5°C, ±3%RH

• Memory: 16,000 data points

• Alarm: LCD + buzzer

• Reports: PDF, Excel, TXT via ElitechLog (Windows/macOS)

• Certification: EN12830, CE, ROHS

B) Working principle

1. Sensor measurement: The logger reads temperature and humidity through its external sensors, including a glycol bottle probe that measures buffered temperature rather than fast-changing air temperature.

2. Sampling and recording: At a selected logging interval, it converts sensor values into digital readings and stores them as time-stamped records in memory (up to 16,000 points).

3. Alarm handling: If values exceed preset high/low thresholds, the logger triggers visual indication on the LCD and an audible buzzer alarm, helping users respond quickly to excursions.

4. Data retrieval and reporting: After a monitoring cycle, the data is downloaded through USB and analyzed in ElitechLog software, where it can be exported into PDF, Excel, or TXT formats for audits, compliance, and trend analysis.

C) Why it is used

Elitech GSP-6G is used to maintain quality, compliance, and traceability for temperature- and humidity-sensitive products. It is especially valuable in vaccine and pharmaceutical environments because the glycol bottle sensor provides a more realistic product-temperature simulation, reducing false alarms caused by air fluctuations. Typical reasons to use it include:

• Cold chain compliance for vaccines, pharma, biologics, and life science products

• Monitoring refrigerators, freezers, cold rooms, and controlled storage areas

• Validating temperature and humidity during transport and distribution

• Creating audit-ready reports for QA teams, customers, and regulatory documentation

• Reducing spoilage, rejections, and disputes by providing traceable logs

D) Suitable buyers

Elitech GSP-6G is best suited for organizations that need documented temperature and humidity monitoring with compliance reporting:

• Pharmaceutical manufacturers, distributors, and C&F / stockists

• Vaccine storage points, hospitals, clinics, and immunization programs

• Cold chain logistics providers, reefer transporters, and 3PL warehouses

• QA/QC and validation teams handling storage qualification and audits

• Laboratories, research centers, and life science storage facilities

• Food cold storage operators and exporters requiring traceable monitoring

• Medical and clinical refrigerator suppliers and service providers

FAQ

Q1. What is the Elitech GSP-6G used for?
It is used for continuous temperature and humidity monitoring in cold chain, vaccine storage, pharmaceutical warehouses, laboratories, and medical refrigerators, with downloadable compliance reports.

Q2. What is the advantage of the glycol bottle temperature sensor?
The glycol bottle sensor buffers rapid air changes and simulates actual product/vaccine temperature more accurately, helping avoid false alarms caused by door openings and air fluctuations.

Q3. What temperature and humidity range does the GSP-6G support?
Temperature range is -40°C to 85°C. Humidity range is 0 to 100%RH.

Q4. What is the accuracy of the Elitech GSP-6G?
Temperature accuracy is ±0.5°C and humidity accuracy is ±3%RH.

Q5. How many records can Elitech GSP-6G store?
It stores up to 16,000 data points, depending on your logging interval.

Q6. Can I export data in PDF or Excel format?
Yes. Using ElitechLog software (Windows and macOS), you can export reports in PDF, Excel, and TXT formats.

Q7. Does the GSP-6G have an alarm feature?
Yes. It has an LCD display and buzzer alarm for out-of-range temperature or humidity conditions.

Q8. Is Elitech GSP-6G suitable for regulated pharmaceutical storage?
Yes. It is certified with EN12830, CE, and ROHS, making it suitable for cold chain and pharmaceutical monitoring applications.

Q9. Can it run without a computer connected?
Yes. It logs data independently during storage/transport, and you download data later via USB for reporting.

Q10. What power options does the GSP-6G support?
It can operate via USB power or using a lithium battery, depending on the use case and configuration.
