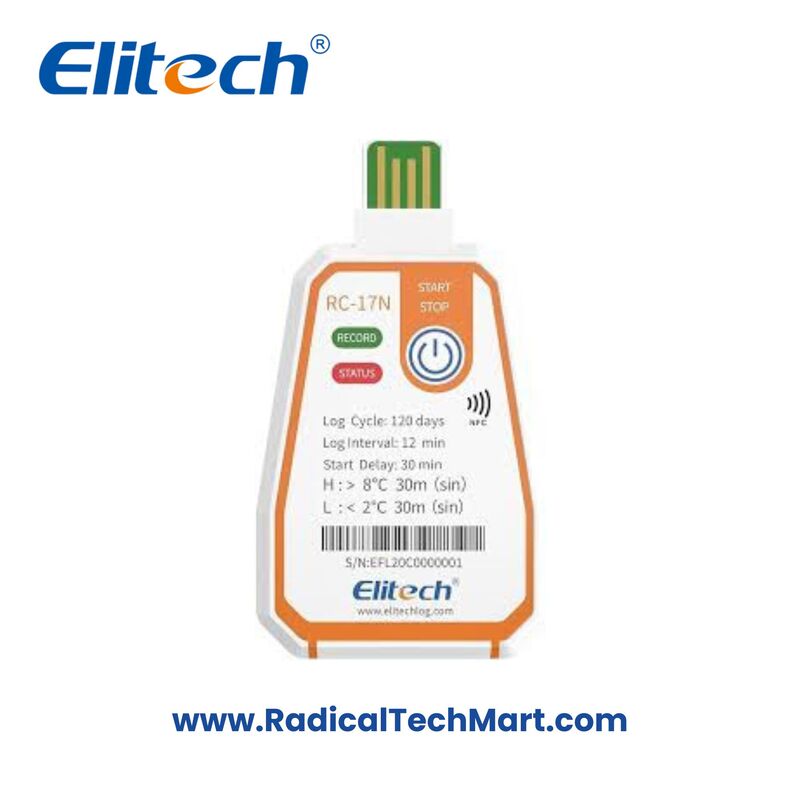

Elitech RC-17N Disposable NFC Temperature Recorder
Elitech RC-17 / RC-17N Single-Use Temperature Data Logger (USB/NFC, IP67, 16,000 Points)
Single-use temperature data logger with USB auto-PDF, IP67 rating, 16,000-point memory, and optional NFC support for real-time mobile data retrieval.
Download Now!!!
Customize
Share :
The Elitech RC-17 / RC-17N is a single-use USB temperature data logger designed for reliable cold-chain monitoring in pharmaceuticals, vaccines, food, flower export, life-science supplies, and refrigerated transport. The RC-17N variant additionally supports NFC mobile scanning, enabling quick access to key trip data via Android/iOS apps.
Key Features
(Extracted from page 1 of the datasheet)
Single-use digital temperature data logger
Temperature range: -30°C to +70°C
Accuracy up to ±0.5°C (-20°C to +40°C)
USB plug-and-play with auto PDF report output
RC-17N: NFC mobile reading (iOS/Android)
Built-in NTC temperature sensor
Logging interval: 12 min (default)
Max storage: 16,000 points
IP67 waterproof rating
Powered by CR2450 lithium battery
Suitable for bags, trucks, containers and last-mile delivery
Complies with UN38.3 & DO160 standards
Lightweight design with barcode labeling
Technical Specifications (Table)
(All taken from page 2 of the datasheet)
| Parameter | Specification |
|---|---|
| Temperature Range | -30°C to +70°C |
| Storage Temp | -30°C to +70°C |
| Resolution | 0.1°C |
| Accuracy | ±0.5°C (-20°C to +40°C); ±1°C (others) |
| Sensor | Internal NTC |
| Storage Capacity | 16,000 points |
| Logging Life | 6, 15, 30, 60, 90, 120, 180 days (customizable) |
| Alarm Type | Single (Sin) / Accumulative (Cum) |
| Data Transport | USB 2.0 / NFC (RC-17N) |
| Report Format | Auto PDF |
| Battery Type | Built-in CR2450 lithium |
| Battery Life | 2 years |
| Protection Class | IP67 |
| Start Method | Button press |
| Software Support | Elitech app + NFC (RC-17N) |
| Certifications | CE, FCC, UN38.3, DO160 |
Applications
Pharmaceutical shipments
Vaccine cold chain monitoring
Blood bags and biosample logistics
Food and frozen supply chain
Refrigerated trucks & reefer containers
Flower exports
Laboratory cold storage validation
Cooler bags, boxes, insulated containers
What’s in the Box
1 × Elitech RC-17 or RC-17N Single-Use Data Logger
Default configuration programmed
Quick reference guide
Barcode label for trip ID
FAQs
Q1. What is the difference between RC-17 and RC-17N?
RC-17N includes NFC support, allowing mobile app data retrieval without a PC.
Q2. Is the logger reusable?
No, this is a single-use device and must be disposed of after trip completion.
Q3. How do I download the PDF report?
Insert the device into a USB port; the report is generated automatically.
Q4. Does it work in deep-freeze conditions?
Yes, it measures reliably from -30°C to +70°C.
Q5. How many readings can it store?
Up to 16,000 temperature points.
Q6. Is it waterproof?
Yes, it has IP67 protection as per the datasheet.
