A. Product Overview

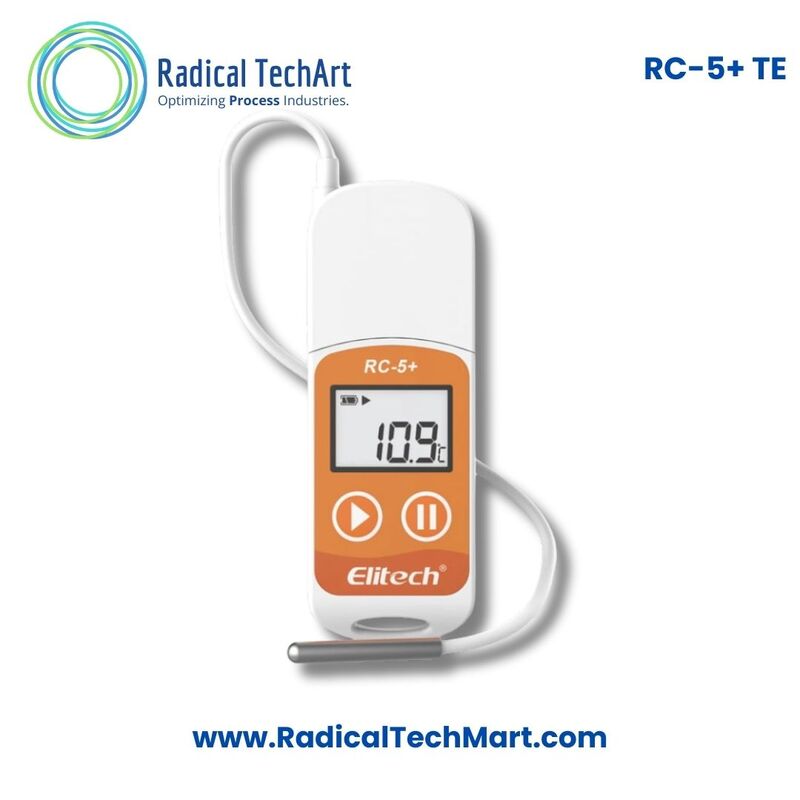

Elitech RC-5+ TE is a USB temperature data logger designed to record temperature data during storage and transportation in cold chain environments. According to the manual overview, the RC-5 series is used for recording temperature of foods, medicines, and other goods during storage and transport in coolers, cabinets, medicine cabinets, refrigerators, laboratories, freezer containers, and trucks.
The RC-5+ TE model supports an external temperature sensor and provides automatic PDF report generation. It features:
- Temperature measurement range (RC-5+ TE): -40°C to +85°C
- Accuracy: ±0.5°C (-20°C to +40°C); ±1°C (others)
- Resolution: 0.1°C/°F
- Memory capacity: Maximum 32,000 points
- Logging interval: 10 seconds to 12 hours
- Data interface: USB
- Report format: Auto PDF report; PDF/EXCEL/TXT export via ElitechLog software
- Software: ElitechLog (macOS and Windows system)
- Protection level: IP67
- Certification: EN12830, CE, RoHS
- Power supply: CR2032 battery
- Shelf life: 1 year
- Dimensions: 80 × 33.5 × 14 mm
- Weight: 20 g
What’s Included:
- Data Logger ×1
- User Manual ×1
- Calibration Certificate ×1
- CR2032 Battery ×1
B. Working Principle
Battery Activation
Turn the battery cover counterclockwise to open it.
Pull out the battery insulator strip.
Turn the battery cover clockwise and tighten it.Install Software
Download and install the free ElitechLog software (macOS and Windows).Configure Parameters
Connect the data logger to the computer via USB.
Configure parameters such as logging interval, start mode, stop mode, temperature limits, and time synchronization through ElitechLog software.Start Logging
Press and hold the button for 5 seconds until the icon shows on the LCD.
The RC-5+/TE supports auto start, immediate start, and timed start.Data Recording
The logger records temperature data at the configured interval and stores up to 32,000 points.Stop Logging
Press and hold the button for 5 seconds until the stop icon appears, or stop via software.
The logger will automatically stop when memory is full.Download Data
Connect the logger to a computer via USB.
Data can be exported using ElitechLog software (PDF/EXCEL/TXT).
RC-5+/TE supports automatic PDF report generation.
Reuse and Repeat Start
To reuse, stop logging first and save/export data.
RC-5+/TE supports repeat start by pressing and holding the left button without reconfiguration.
C. Why It Is Used
The RC-5 series is used to record temperature during storage and transportation of temperature-sensitive goods.
Applications include:
- Storage of foods
- Storage of medicines
- Cold chain transportation
- Refrigerators
- Laboratories
- Freezer containers
- Trucks and reefers
The RC-5+ TE is used where:
- External temperature sensing is required
- Automatic PDF reporting is needed
- IP67 protection is required
- EN12830 certification is required
- Reusable data logging with repeat start is needed
D. Suitable Buyers
- Pharmaceutical storage facilities
- Medicine distributors
- Food storage operators
- Cold chain logistics companies
- Refrigerated transport operators
- Laboratory facilities
- Freezer container operators
- Truck and reefer transport companies
FAQ
What temperature range does RC-5+ TE support?
The RC-5+ TE measures temperature from -40°C to +85°C.What is the accuracy of the device?
Accuracy is ±0.5°C (-20°C to +40°C) and ±1°C outside that range.How many data points can it store?
The maximum memory capacity is 32,000 points.What is the logging interval range?
Logging interval can be set from 10 seconds to 12 hours for RC-5+ TE.How is data downloaded?
Data is downloaded via USB using ElitechLog software, and RC-5+/TE supports automatic PDF report generation.What software is required?
ElitechLog software supports macOS and Windows systems.What certifications does it have?
The device is certified EN12830, CE, and RoHS.What is the protection rating?
The protection level is IP67.What battery does it use?
It uses a CR2032 battery.Can it be reused?
Yes. The manual describes reuse and repeat start functions for RC-5+/TE models.
