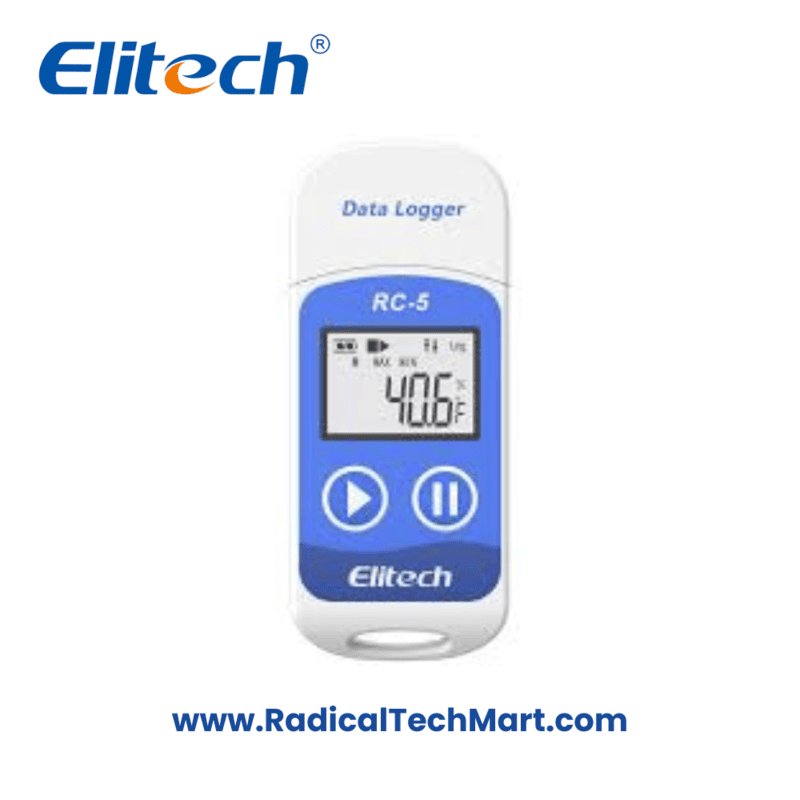

Elitech RC-5 USB Temperature Data Logger

A) Product overview

Elitech RC-5 is a multi-use USB temperature data logger designed for cold chain, cold storage, warehouses, and temperature-sensitive logistics. It records up to 32,000 temperature readings, shows live status and MIN/MAX values on an LCD, and generates downloadable reports (PDF/Excel/TXT) via simple USB plug-and-play. With IP67 protection, optional password protection, and compliance references such as EN12830 and HACCP use cases, RC-5 is suited for quality assurance, audits, and shipment or storage validation in pharma and food environments.

Key highlights

• Temperature range: -30°C to +70°C

• Accuracy: ±0.5°C (-20°C to +40°C), ±1.0°C otherwise

• Memory: 32,000 readings

• LCD display with MAX/MIN review

• USB plug-and-play reporting (PDF/Excel/TXT)

• IP67 protection for harsh handling environments

• Multi-use with replaceable CR2032 battery

B) Working principle

1. Temperature sensing: An internal temperature probe (and optional external probe version) measures ambient/product temperature.

2. Data logging: The logger samples temperature at a configured interval and stores readings with time/date in internal memory (up to 32,000 points).

3. Alarm monitoring: High/low alarm thresholds and delays can be set in advance through configuration; excursions are flagged in the record and on-device status.

4. Local verification: The LCD shows current temperature and MAX/MIN values for quick on-site checks without opening software.

5. Report generation and sharing: After monitoring, plug RC-5 into a USB port to export data and generate reports in PDF/Excel/TXT formats, enabling easy documentation and QA sharing (including one-click email workflows where supported).

6. Reuse: Replace the CR2032 battery as needed and reconfigure settings for the next monitoring cycle.

C) Why it is used

RC-5 is used to create reliable temperature records that support compliance, audit readiness, and product-quality assurance across storage and transport. It reduces manual checks, catches temperature excursions early (through alarms and MAX/MIN review), and provides easy-to-share reports for customers, QA teams, and regulators.

Common reasons to use RC-5

• Validate cold chain storage and transportation conditions

• Maintain traceable records for QA audits and compliance documentation

• Monitor refrigerators, freezers, cold rooms, and warehouses over time

• Verify temperature performance during export shipments and distribution

• Simplify reporting with plug-and-play PDF/Excel/TXT output

• Deploy in wet or harsh environments due to IP67 protection

D) Suitable buyers

Pharmaceutical and healthcare

• Pharma manufacturers, vaccine distributors, hospitals, diagnostic labs, blood banks, medical distributors, cold chain 3PLs

Food and perishables

• Dairy and frozen food operators, seafood/meat exporters, fresh produce distributors, cold storage facilities, refrigerated transport providers

Warehousing and logistics

• Warehouse managers, logistics heads, export houses, freight forwarders handling temperature-sensitive cargo

Quality, compliance, and audit teams

• QA/QC managers, compliance officers, validation teams needing documented temperature evidence for audits and customer approvals

FAQ

1) What is Elitech RC-5 used for?
It is used for temperature monitoring and documentation in cold chain storage and transport, including pharma, food, warehouses, and refrigerated logistics.

2) Is the Elitech RC-5 reusable?
Yes. RC-5 is a multi-use data logger with a replaceable CR2032 button cell battery.

3) How do I generate or download the report?
Plug the logger into a USB port to export the data and generate reports in PDF, Excel, or TXT formats.

4) How many readings can RC-5 store?
RC-5 stores up to 32,000 temperature readings.

5) What temperature range and accuracy does RC-5 support?
It measures from -30°C to +70°C with ±0.5°C accuracy from -20°C to +40°C, and ±1.0°C outside that band.

6) Does RC-5 support temperature alarms?
Yes. High/low alarm thresholds, delay, and related settings can be configured using ElitechLog software.

7) Is RC-5 waterproof?
RC-5 has an IP67 rating, suitable for harsh handling environments and improved resistance to dust and water exposure.

8) Does RC-5 show MAX/MIN values?
Yes. The LCD supports MAX/MIN viewing for quick diagnostic checks during site inspections.
