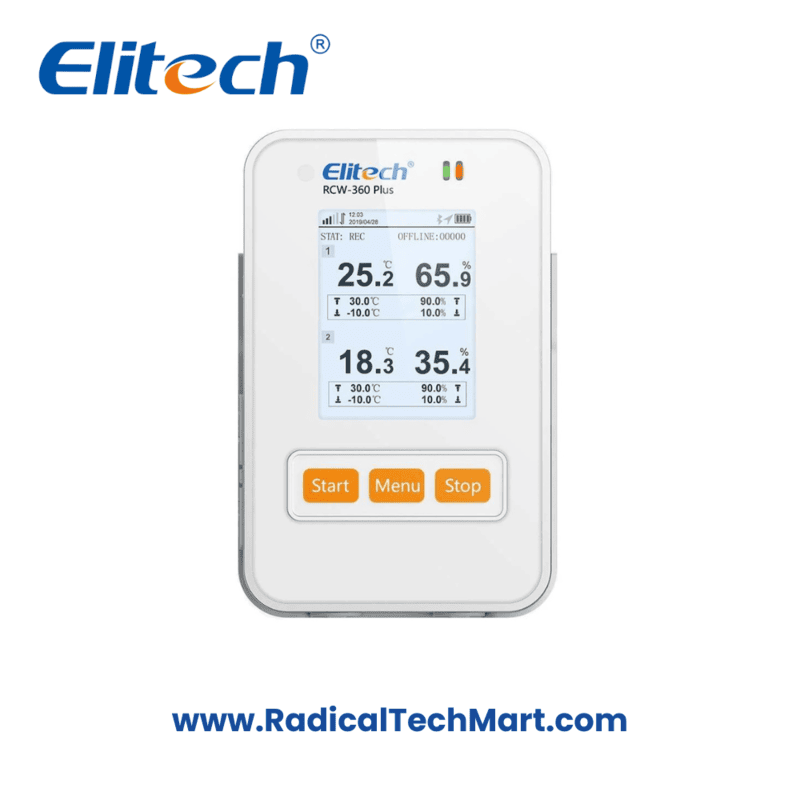

Elitech RCW-360 Plus 4G/WiFi Wireless Temperature Data Logger
Elitech RCW-360 Plus IoT Real-Time Temperature & Humidity Data Logger (4G/WiFi)
Industrial-grade IoT data logger with 4G/WiFi connectivity, real-time cloud monitoring, GPS, Bluetooth printing, alarms, and internal/external sensor options — ideal for cold chain, warehousing, pharma, and logistics.
Customize
Share :
The Elitech RCW-360 Plus is a next-generation IoT temperature & humidity data logger designed for 24×7 real-time monitoring across cold chain, pharmaceutical storage, warehousing, food logistics, and refrigerated transport. With 4G/WiFi connectivity, built-in GPS, Bluetooth printing, internal/external probes, and cloud-based alerts, it ensures complete visibility, compliance, and traceability of your temperature-sensitive operations.
Key Features (Bulleted)
Real-time monitoring of temperature & humidity (internal/external sensors).
Supports 4G/WiFi connectivity for continuous cloud upload.
GPS + LBS positioning for live location tracking.
100,000 offline data points with circular storage.
Built-in TFT color display, sound-light local alarms.
Bluetooth printing for on-site report generation.
IP65/IP64 protection for internal/external probes.
Rechargeable lithium battery—up to 3 months runtime at typical settings.
Compatible with Elitech iCold Cloud and mobile app (iOS/Android).
Multiple probe configurations (internal, external, or dual).
Configurable logging/upload intervals (1 min – 24 hrs).
HACCP-ready with audit trail and secure cloud storage.
Technical Specifications (Table)
| Parameter | Specification |
|---|---|
| Power Input | 5V/2A DC |
| Display | TFT Color Screen |
| Recording Capacity | 100,000 points |
| Data Storage Mode | Circular storage |
| Temperature Range (Internal) | −20°C to +60°C |
| Temperature Range (External) | −40°C to +80°C |
| Humidity Range | 0–100% RH |
| Temperature Accuracy | ±0.5°C |
| Resolution | 0.1°C / 0.1% RH |
| Communication Mode | 4G / WiFi |
| Alarm Modes | Sound, SMS, Email, Mobile App |
| Logging Interval | 1 min – 24 hrs |
| Upload Interval | 1 min – 24 hrs |
| Battery Backup | 3 months (30-min upload) |
| Protection Level | IP65 (internal), IP64 (external) |
| Dimensions | 109 × 69.4 × 22.9 mm |
| Buttons | On/Off, Start, Menu, Stop |
| Bluetooth Printing | Yes |
| GPS | Yes (4G version) |
Applications
Pharmaceutical cold rooms & WHO-compliant storage
Food warehousing & chilled distribution
Reefer trucks & logistics containers
Hospitals, labs, vaccine fridges, blood banks
Walk-in freezers & cold chambers
Restaurants, catering & cloud kitchens
International shipping compliance (HACCP/GDP)
What’s in the Box?
RCW-360 Plus Main Unit
Built-in/external sensor (as per model)
USB charging cable
Power Adapter
Quick Start Guide
Wall-mount/magnetic mounting accessories (if provided)
FAQ
1. Does the device work without WiFi?
Yes. The 4G version uploads data via mobile network. Offline data is stored internally (100,000 points) and auto-uploaded when the network returns.
2. Can I see data on my phone?
Yes. Data is accessible via the Elitech iCold app with real-time charts, alarms, and historical graphs.
3. Is GPS tracking available?
Yes, only on the 4G models, ensuring accurate temperature and location tracking during transport.
4. How long does the battery last?
Up to 3 months at a 30-minute upload interval (LBS mode).
5. Can alarms be sent via SMS or email?
Yes—SMS, email, app push notifications, and onsite buzzer alarms are supported.
6. Is it suitable for vaccine or pharma storage?
Yes. Fully compliant with cold chain standards, high accuracy, and cloud traceability.
