Elitech RCW 800W TDE WiFi Temperature & Humidity Data Logger
Elitech RCW-800W-TDE Real-Time WiFi Temperature Data Logger (External Probe)
Industrial WiFi temperature data logger with external high–low temperature probe, cloud monitoring, TFT display, IP50 protection, and reliable 24×7 recording for cold chains, warehouses, and refrigeration systems.
Customize
Share :

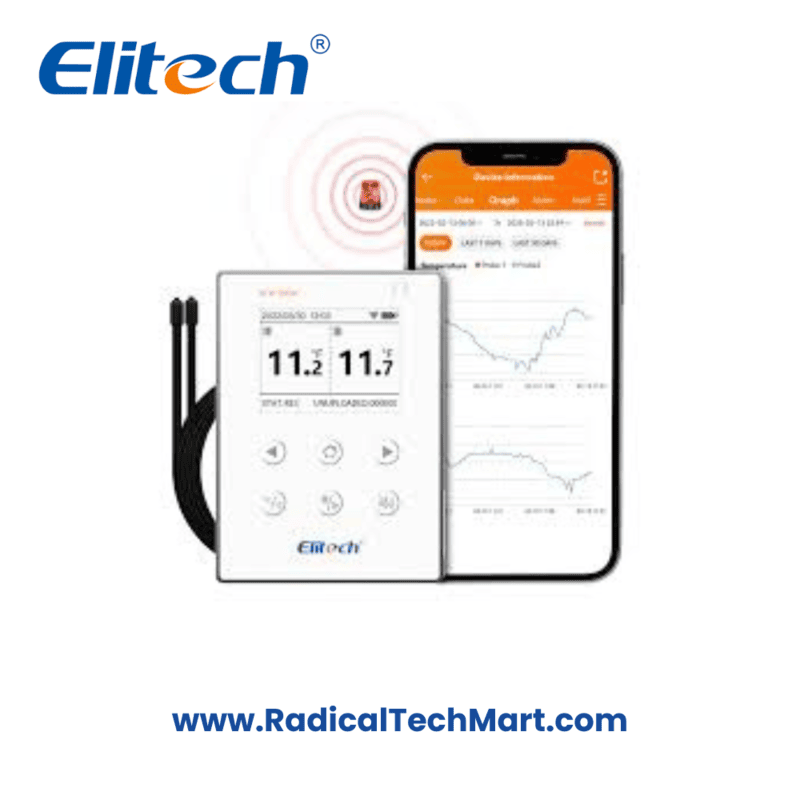

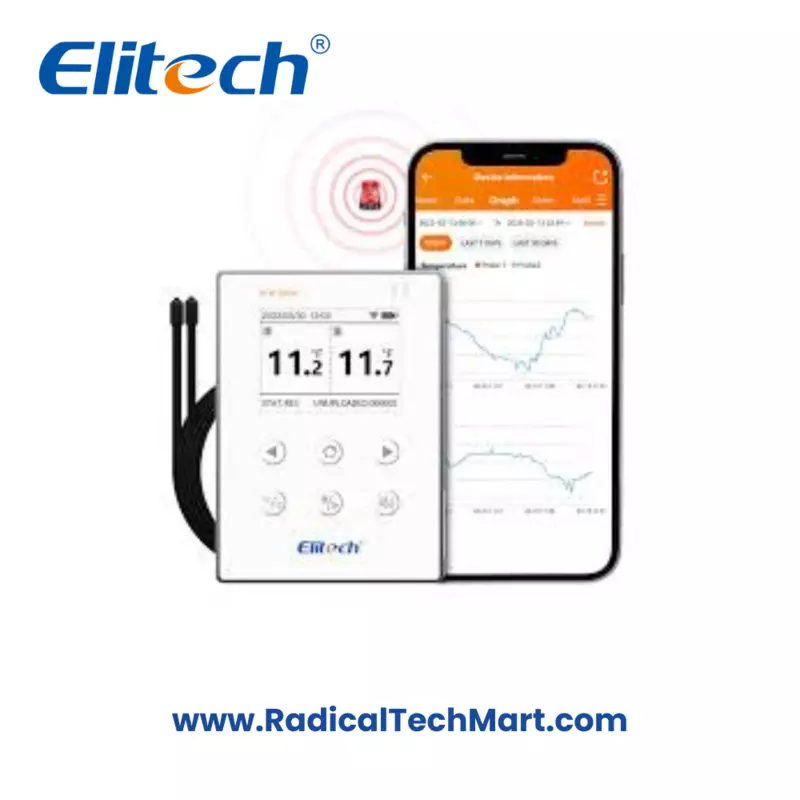

The Elitech RCW-800W-TDE is a WiFi-enabled real-time temperature data logger equipped with an external probe for high–low temperature monitoring across industrial cold chains, refrigerated trucks, medicine cabinets, freezer rooms, and laboratory applications. With cloud connectivity, TFT display, strong accuracy, and large internal memory, it ensures reliable 24×7 tracking.
Key Features
WiFi real-time temperature monitoring
External sensor probe for flexible placement
TFT color screen display for live readings
Built-in rechargeable lithium battery
Cloud monitoring via Elitech iCold platform
Visual, LED, app push, and email alarms
Adjustable logging interval (1–1440 minutes)
IP50 protection suitable for industrial environments
Cyclic storage mode with 20,000-point memory
Ideal for cold chain, warehouses, trucks, medicine freezers
Technical Specifications (as per datasheet)
| Parameter | RCW-800W-TDE Specification |
|---|---|
| Communication Mode | WiFi |
| Measurement Type | Temperature (External Probe) |
| Temperature Range | –40°C to +80°C |
| Temperature Accuracy | ±0.5°C (–20°C to +40°C), ±1°C (others) |
| Resolution | 0.1°C |
| Humidity Measurement | Not Applicable (TDE is temperature-only) |
| Recording Interval | 1–1440 min (default 5 min) |
| Storage Capacity | 20,000 readings |
| Storage Mode | Cyclic storage |
| Power | USB 5V / 2Ah battery |
| Battery Life | >7 days at 5-min upload interval |
| Alarm | LED, Messages, App Push, Email |
| Screen | TFT color display |
| Protection Class | IP50 |
| Dimensions | 110 × 78 × 27 mm (11 × 7.8 × 2.7 cm) |
| Operating Environment | As per datasheet page 2 |
| Warranty | 1 Year |
Applications
Refrigerated trucks
Warehouse & cold storage
Pharmacy & vaccine cabinets
Food & meat processing
Freezer laboratories
Industrial temperature-sensitive storage
Walk-in coolers & chillers
What’s in the Box
1 × Elitech RCW-800W-TDE Data Logger
1 × External Temperature Probe
1 × USB Power Cable
1 × Quick Start Manual
1 × Wall Mount / Magnetic Plate (if included)
1 × Warranty Card
FAQs
Q1: What is the difference between RCW-800W-THE and RCW-800W-TDE?
THE = Temperature + Humidity
TDE = Temperature only (external probe) with extended range.
Q2: How does it upload data?
It uses WiFi and pushes data to the Elitech iCold Cloud platform in real time.
Q3: What happens if WiFi drops?
The internal memory stores readings and auto-syncs once WiFi is restored.
Q4: Can I set high/low alarms?
Yes, you can configure alarm thresholds for temperature via cloud/software.
Q5: Is the probe waterproof?
External stainless-steel probes are splash-resistant and suitable for cold rooms.
Q6: Does it support email or app notifications?
Yes, LED, app push notifications, and email alerts are supported.
