Elitech TinyUSB Single-Use Temperature Recorder Data Logger

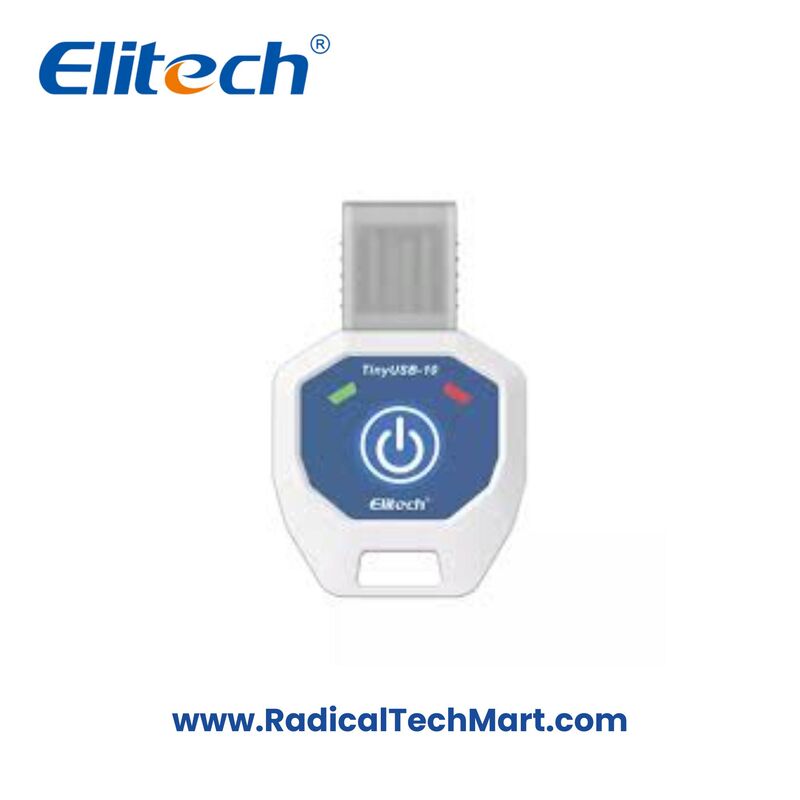

Elitech TinyUSB-10 Single-Use USB Temperature Data Logger | IP67
Compact single-use USB temperature data logger with built-in NTC sensor, automatic PDF reporting, IP67 rating, and 90-day recording—ideal for cold-chain, pharmaceuticals, and transportation applications.
Customize
Share :
The Elitech TinyUSB-10 is a compact single-use USB temperature data logger designed for cold-chain and pharmaceutical monitoring. With automatic PDF reporting, IP67 waterproof protection, and a built-in NTC sensor, it ensures accurate temperature tracking for logistics, storage, and transport applications. The logger is powered by a wide-temperature CR2032 lithium battery and requires no software installation for data retrieval.
Key Features
Single-use USB temperature data logger
Automatic PDF summary report generation
IP67 waterproof rating for harsh transport conditions
Built-in NTC temperature sensor
10,000-record storage capacity
QR-code for easy electronic documentation
Up to 90-day recording period (customizable: 6 / 15 / 30 / 60 / 90 days)
Compact, lightweight (11 g) design
CR2032 battery for long shelf life
Ideal for pharmaceuticals, vaccines, food cold chains, and warehouse storage
Technical Specifications (Table)
| Parameter | Specification |
|---|---|
| Measuring Temperature | -30°C to 70°C |
| Accuracy | ±0.5°C |
| Data Interface | USB 2.0 |
| Sensor Type | Built-in NTC |
| Report Format | Automatic PDF |
| Storage Temp | -10°C to 30°C |
| Recording Capacity | 10,000 records |
| Recording Period | 6/15/30/60/90 days (customizable) |
| Battery Type | Built-in CR2032 Lithium |
| Product Life | 90 days recording |
| Weight | 11 g |
| Dimensions | 48 × 32 × 9 mm |
| Alarm Types | Single / Cumulative |
| Waterproof Rating | IP67 |
| Power Consumption | <1 W |
Applications
Pharmaceuticals & vaccine cold chain
Food industry shipments
Refrigerated trucks and containers
Warehouse temperature records
Blood storage and life-science materials
Incubators, cooler boxes & cold storage
What’s in the Box?
1 × Elitech TinyUSB-10 Single-Use Temperature Logger
1 × Integrated CR2032 battery (pre-installed)
1 × QR code for configuration & documentation
User guide PDF downloadable via USB
FAQ
Q1: How do I download the temperature report?
Insert the logger into any USB port; it automatically generates a PDF report without software.
Q2: Can I reuse the TinyUSB-10?
No. It is designed for single-use cold-chain applications.
Q3: What is the recording capacity?
It stores up to 10,000 readings with configurable recording intervals.
Q4: Is the logger waterproof?
Yes. It is IP67 compliant for refrigerated and wet environments.
Q5: What type of battery is used?
A built-in CR2032 wide-temperature lithium battery.
Q6: Where can it be used?
Pharma shipments, vaccines, food logistics, warehouses, and blood-storage transport.
