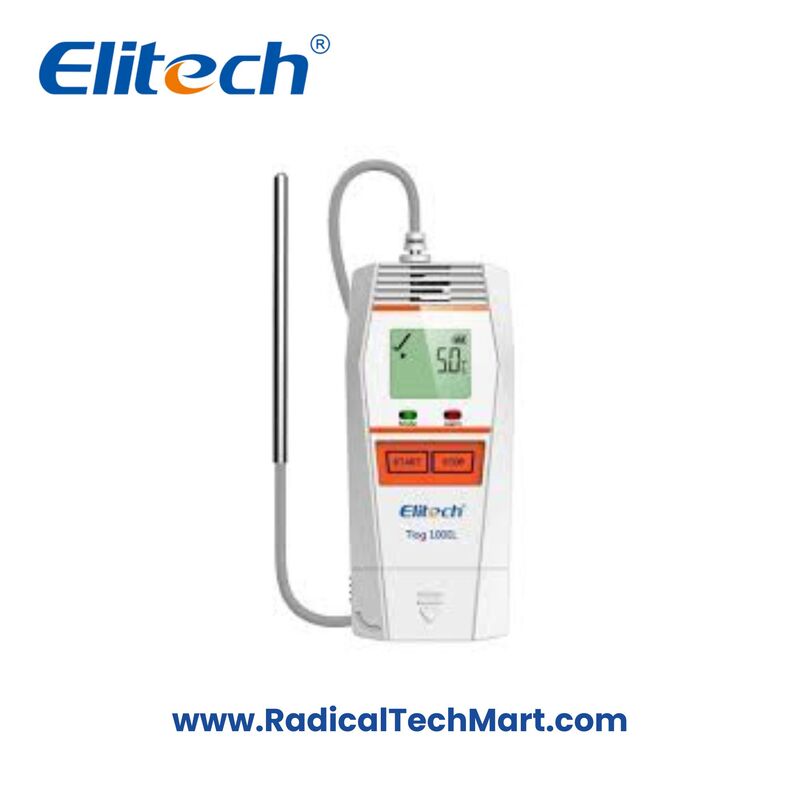

Elitech Tlog-100EL Temperature Data Logger
Elitech Tlog-100 EL Reusable PDF Temperature & Humidity Data Logger (Bluetooth | USB | LCD)
Reusable Bluetooth + USB data logger with LCD display, IP65 protection, 65k memory, and automatic PDF reports—ideal for pharma, food, cold-chain, and storage monitoring.
Customize
Share :
The Elitech Tlog-100 EL is a reusable Bluetooth-enabled temperature and humidity data logger designed for precise cold-chain, pharmaceutical, food logistics, and warehouse monitoring. With dual USB + Bluetooth access, LCD display, IP65 protection, 65,000-record memory, app configuration, alarm indicators, and automatic PDF/Excel reporting, it offers reliable long-term environmental tracking.
KEY FEATURES
(Extracted from Page 1–2 of datasheet)
Reusable temperature + humidity logger with Bluetooth + USB
LCD display for real-time temperature, humidity & status
Auto-generated encrypted PDF/Excel reports
IP65 waterproof protection
Large memory capacity (65,000 readings)
Configurable via mobile app (Android/iOS) and PC software
Dual-mode start/stop (button or software/app)
Long-life battery (replaceable CR2450)
Multiple alarm types (upper/lower, cumulative, continuous)
Quick data download via USB
TECHNICAL SPECIFICATIONS (TABLE)
(From Page 2 of datasheet)
| Parameter | Specification |
|---|---|
| Model | Tlog-100 EL |
| Type | Reusable Temperature + Humidity Logger |
| Temperature Range | –30°C to 70°C |
| Humidity Range | 0–100% RH |
| Temperature Accuracy | ±0.5°C (–20°C ~ 40°C), ±1.0°C (other ranges) |
| Humidity Accuracy | ±3% RH (25°C, 20–90% RH), ±5% RH (other ranges) |
| Resolution | 0.1°C / 0.1% RH |
| Memory Capacity | 65,000 points (32k Temp + 32k RH) |
| Logging Interval | Configurable 10 s – 24 hrs |
| Communication | USB 2.0 + Bluetooth |
| Report Format | PDF / Excel |
| Start/Stop | Button or App/PC |
| Alarm Types | High/Low temp & RH, cumulative, continuous |
| Battery | CR2450 (replaceable) |
| Battery Life | Up to 12 months (normal use) |
| Protection Class | IP65 |
| Dimensions | 80 × 40 × 14 mm |
| Weight | ~ 60–80 g |
APPLICATIONS
Vaccine & pharma cold-chain monitoring
Refrigerated trucks, containers & reefer boxes
Food and perishable goods logistics
Blood banks & hospital storage
Warehouses, cold rooms & freezers
Environmental and stability monitoring
Chemical & laboratory sample tracking
WHAT’S IN THE BOX
1 × Elitech Tlog-100 EL Logger
Pre-installed CR2450 battery
Calibration certificate
Instruction manual
USB cover
FAQ (6 Q&A)
Q1. Is the Tlog-100 EL reusable?
Yes, it is a multi-use logger with a replaceable CR2450 battery.
Q2. Does it support Bluetooth?
Yes, it supports full Bluetooth configuration and data download through Android/iOS apps.
Q3. Can it generate reports automatically?
Yes, it creates PDF/Excel reports instantly when connected via USB.
Q4. What is the memory capacity?
Up to 65,000 readings (temperature + humidity combined).
Q5. Is it suitable for pharma applications?
Yes, it supports precise alarms, PDF reporting, and IP65 protection making it ideal for vaccines & medicines.
Q6. How is the device started/stopped?
It can be started/stopped by button, PC software, or mobile app.
