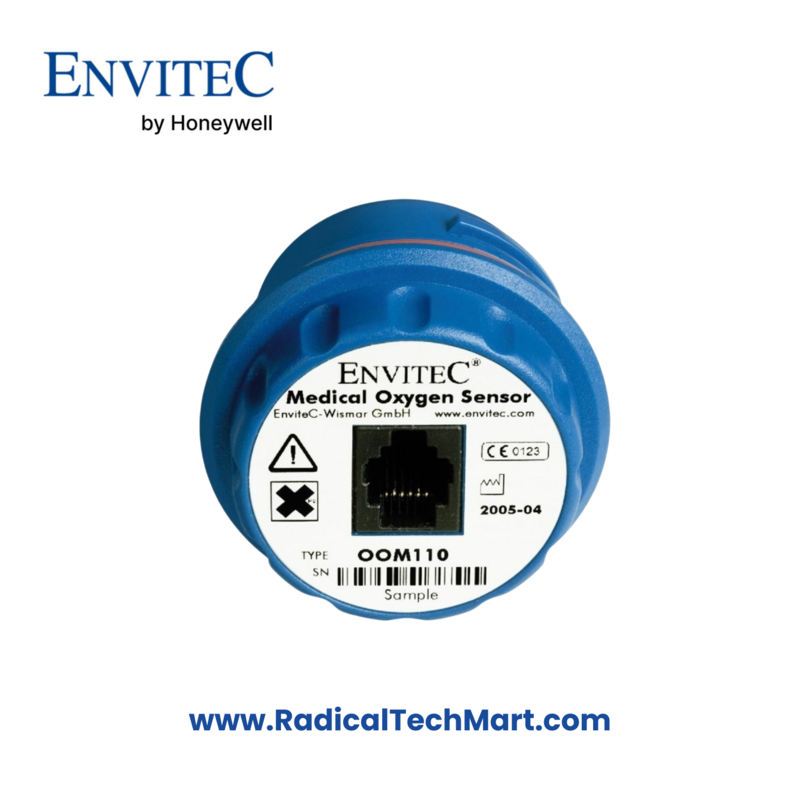

Envitec Oxygen Sensor OOM110

The Envitec OOM110 Oxygen Sensor, developed by Honeywell, is designed for medical applications such as ventilators, anesthesia machines, incubators, and oxygen concentrators. Below are its key specifications:

• Measurement Range: 0% to 100% oxygen.

• Output in ambient air: 9 to 12 mV.

• Electrical Interface: Modular Jack 6P4C.

• Accuracy and Repeatability: Less than 1% volume O₂ when calibrated at 100% oxygen.

• Linearity Error: Less than 3% relative.

• Response Time: Less than 12 seconds to 90% of final value.

• Zero Offset Voltage: Less than 200 µV in 100% nitrogen applied after 5 minutes.

• Cross Interference: Less than 0.5% volume O₂ response to various gases, including CO₂, N₂O, and halothane.

• Influence of Humidity: -0.03% relative per % RH at 25°C.

• Operating Temperature: 0°C to 50°C.

• Temperature Compensation: Built-in NTC compensation.

• Operating Humidity: 0-99% RH non-condensing.

• Long-Term Output Drift: Less than 1% volume O₂ per month; typically less than -15% relative over lifetime.

• Storage Temperature: -20°C to +50°C.

• Recommended Storage: +5°C to +15°C.

• Recommended load: ≥ 10 kΩ.

• Warm-Up Time: Less than 30 minutes after sensor replacement.

• Nominal Sensor Lifetime: ≥ 1,000,000% volume O₂ hours.

• Weight: approximately 50 grams.

• Warranty Period: 15 months.

These specifications ensure the OOM110 sensor provides accurate and reliable oxygen measurements for critical medical applications.
