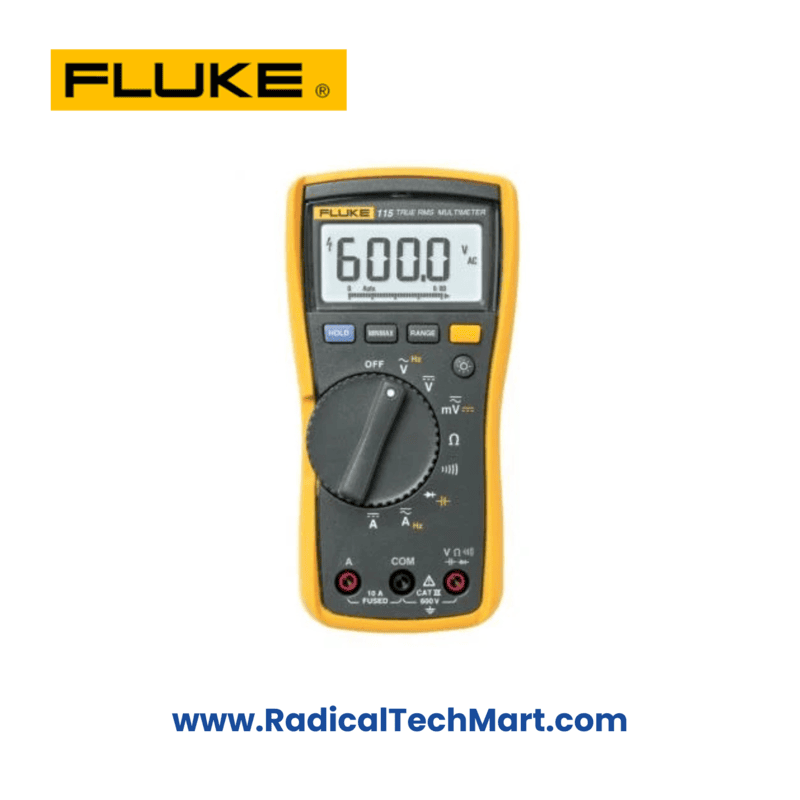

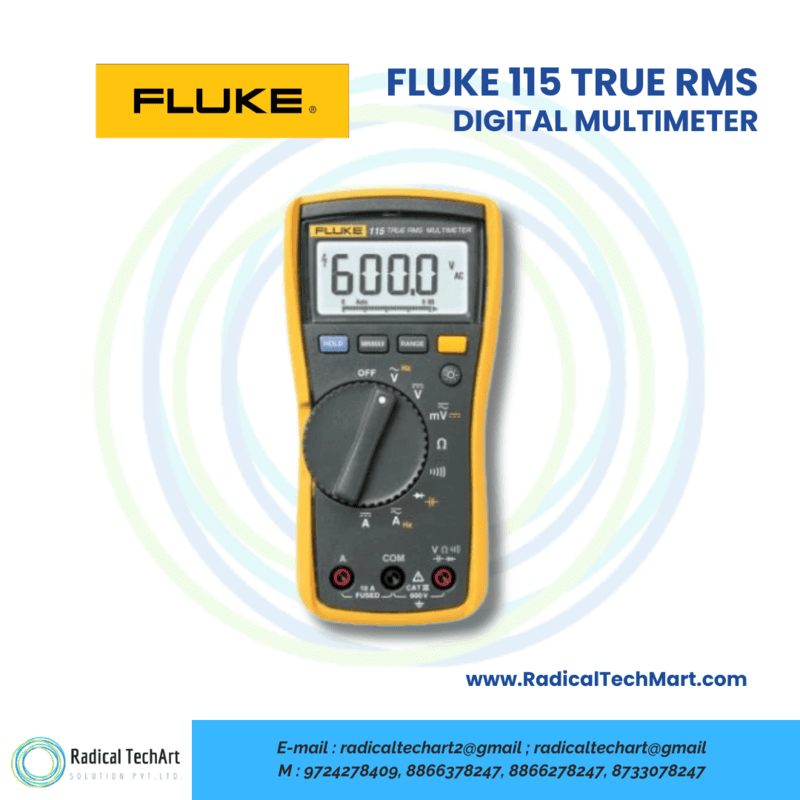

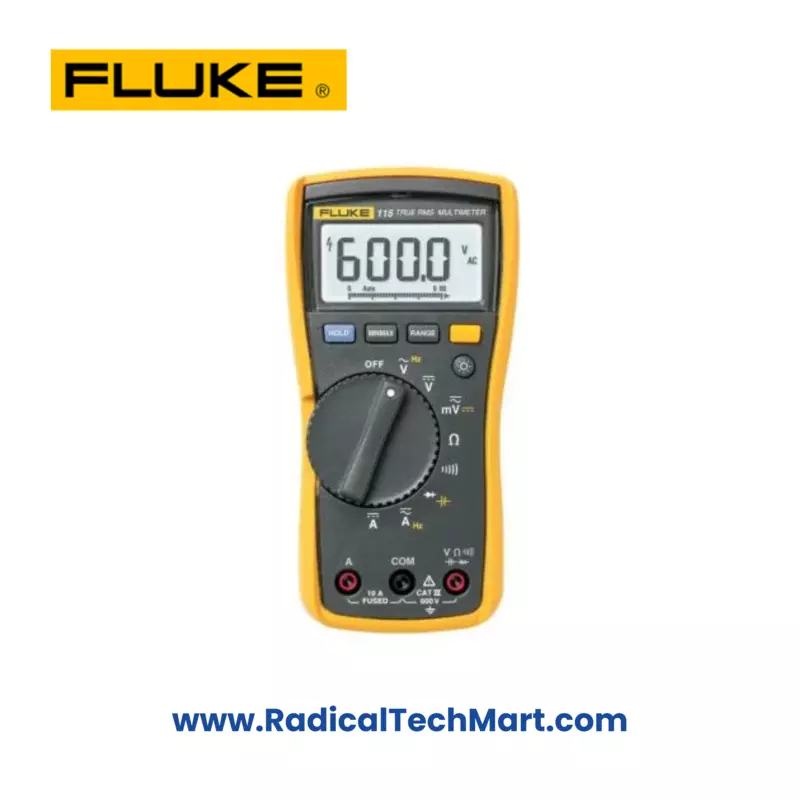

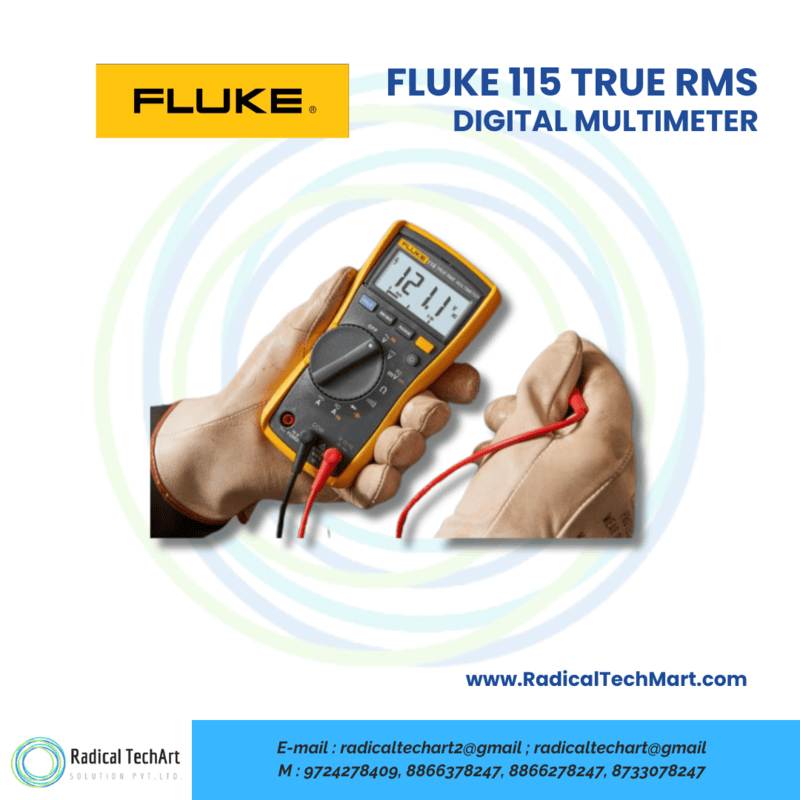

Fluke 115 Field Technicians Digital Multimeter
Product Summary:
The Fluke 115 Digital Multimeter is engineered for field technicians requiring True-RMS accuracy, compact portability, and fast troubleshooting capabilities. Designed for one-handed operation and featuring a large backlit display, it ensures ease of use in tight and dark environments.
Key Features:
True-RMS AC voltage and current for accurate measurements on non-linear loads
Measures voltage (up to 600V), current (up to 10A), resistance, continuity, frequency, and capacitance
Large 6000-count backlit digital display
Min/Max/Average with elapsed time for capturing variations
Ergonomic design with durable holster
Safety rated to CAT III 600V
One-handed operation suitable for fieldwork
3-year warranty
Application:
Electrical system troubleshooting
HVAC and field service applications
Industrial maintenance
Residential and commercial electrical inspections
Product Benefits:
Compact design fits easily in hand and tool bags
Reliable True-RMS measurements for accurate diagnostics
Extended battery life up to 400 hours
Versatile testing with multiple measurement functions
Easy operation in low-light environments with backlit display
FAQs:
Q1: Can the Fluke 115 measure both AC and DC current?
Yes, the Fluke 115 can measure both AC and DC current up to 10A (20A for 30 seconds max).
Q2: Is the Fluke 115 suitable for industrial use?
While it's primarily designed for field service, its CAT III 600V rating makes it safe for many industrial applications.
Q3: Does it have a data hold or recording function?
Yes, it includes Min/Max/Average with elapsed time and a Display Hold function to capture readings effectively.
General Specifications
- Maximum voltage between any terminal and earth ground600 V
- SafetyIEC 61010-1: Pollution Degree 2 IEC 61010-2-033: CAT III 600V
- DisplayDigital: 6,000 counts, updates 4 per second
- Bar graph33 segments, updates 32 per second
- Operating temperature-10℃ to + 50℃
- Storage temperature-40℃ to + 60℃
- Battery type9 volt Alkaline, IEC 6LR61
- Battery life400 hours typical, without backlight
- Size167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
- Weight550 g
- Warranty3 years
