A. Product Overview

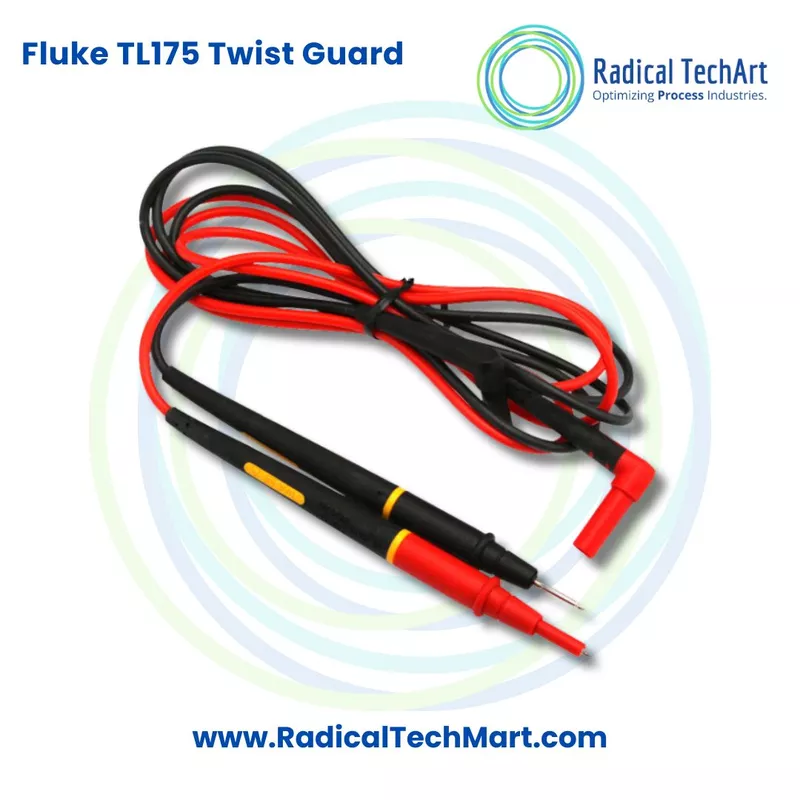

The Fluke TL175 TwistGuard Test Leads are high-quality electrical test leads designed for use with digital multimeters and compatible test instruments. These test leads provide adjustable probe tip exposure, allowing users to adapt the probe length according to different measurement environments while maintaining electrical safety.

The patented TwistGuard extendable tip shroud allows users to change the exposed probe tip length from 19 mm to 4 mm by simply twisting the test lead. This feature helps reduce exposed metal during higher category measurements while providing flexibility for different testing requirements.

Key features include:

• Patented TwistGuard adjustable tip shroud for improved measurement safety
• WearGuard lead wire wear indicator for identifying damaged insulation
• Double insulated silicone leads for durability and temperature resistance
• Heavy-duty strain relief tested beyond 30,000 bends
• Universal 4 mm shrouded banana plugs compatible with standard instruments
• CAT II 1000 V, CAT III 1000 V, CAT IV 600 V safety ratings
• Maximum current rating of 10 A

B. Working Principle

The Fluke TL175 TwistGuard Test Leads work by providing a secure electrical connection between the test instrument and the circuit under measurement.

The probe tips make direct contact with electrical points, allowing voltage, current, resistance, continuity, and other electrical parameters to be measured through a compatible multimeter.

The TwistGuard mechanism allows the user to adjust the probe tip exposure:

• Short tip exposure helps improve safety during CAT III and CAT IV electrical measurements.
• Longer tip exposure provides better accessibility for CAT II applications and detailed probing.

The WearGuard system uses dual-layer silicone insulation with a contrasting inner layer. If the outer insulation gets damaged due to cuts, scratches, or wear, the inner layer becomes visible, indicating that the lead should be replaced.

C. Why it is Used

Improved Electrical Safety

The adjustable TwistGuard probe shroud helps minimize unnecessary metal tip exposure, reducing the risk of accidental contact during electrical testing.

Reliable Measurements

High-quality probe construction ensures stable contact with electrical components, providing accurate readings during testing and troubleshooting.

Long Service Life

The double insulated silicone cable remains flexible in cold temperatures and withstands high temperatures, making it suitable for demanding industrial environments.

Damage Detection

The WearGuard indicator helps technicians identify cable damage before it becomes a safety concern.

Heavy-Duty Performance

The reinforced strain relief design is tested beyond 30,000 bends, reducing failures caused by repeated movement and handling.

D. Suitable Buyers and Applications

Electrical Engineers

Suitable for professionals performing electrical testing, fault finding, and equipment maintenance.

Industrial Maintenance Technicians

Used in factories, control panels, machinery inspection, and preventive maintenance activities.

Electricians

Ideal for daily electrical testing, installation checks, and troubleshooting work.

Automation Engineers

Useful for testing PLC panels, industrial control systems, and electrical circuits.

HVAC Technicians

Suitable for electrical diagnostics in HVAC systems and control equipment.

Testing and Calibration Professionals

Helpful for engineers working with measurement instruments and electrical test equipment.

Frequently Asked Questions (FAQ)

1. What is Fluke TL175 TwistGuard Test Leads?

Fluke TL175 TwistGuard Test Leads are professional electrical test leads designed for safe and accurate measurements with digital multimeters and compatible test instruments.

2. What is TwistGuard technology in Fluke TL175?

TwistGuard is a patented adjustable probe tip shroud that allows users to change the exposed probe tip length from 19 mm to 4 mm by twisting the test lead, improving safety and measurement flexibility.

3. What safety ratings does Fluke TL175 support?

Fluke TL175 supports CAT II 1000 V, CAT III 1000 V, and CAT IV 600 V ratings with a maximum current rating of 10 A.

4. Are Fluke TL175 test leads compatible with all multimeters?

The TL175 uses universal 4 mm shrouded banana plugs, making it compatible with instruments that accept standard 4 mm shrouded banana plug inputs.

5. What is the purpose of WearGuard technology?

WearGuard technology provides a visible indication of insulation damage. When the outer silicone insulation is worn or damaged, the contrasting inner layer becomes visible, indicating replacement may be required.

6. Are Fluke TL175 test leads suitable for industrial applications?

Yes. Their rugged construction, silicone insulation, and high safety ratings make them suitable for industrial maintenance, electrical troubleshooting, and professional testing environments.

7. How durable are Fluke TL175 TwistGuard Test Leads?

The strain relief design has been tested beyond 30,000 bends without failure, providing long-term reliability in demanding applications.

8. What temperature range can Fluke TL175 withstand?

Fluke TL175 is rated for environmental operation from -20°C to 55°C, with altitude capability up to 2000 meters.
