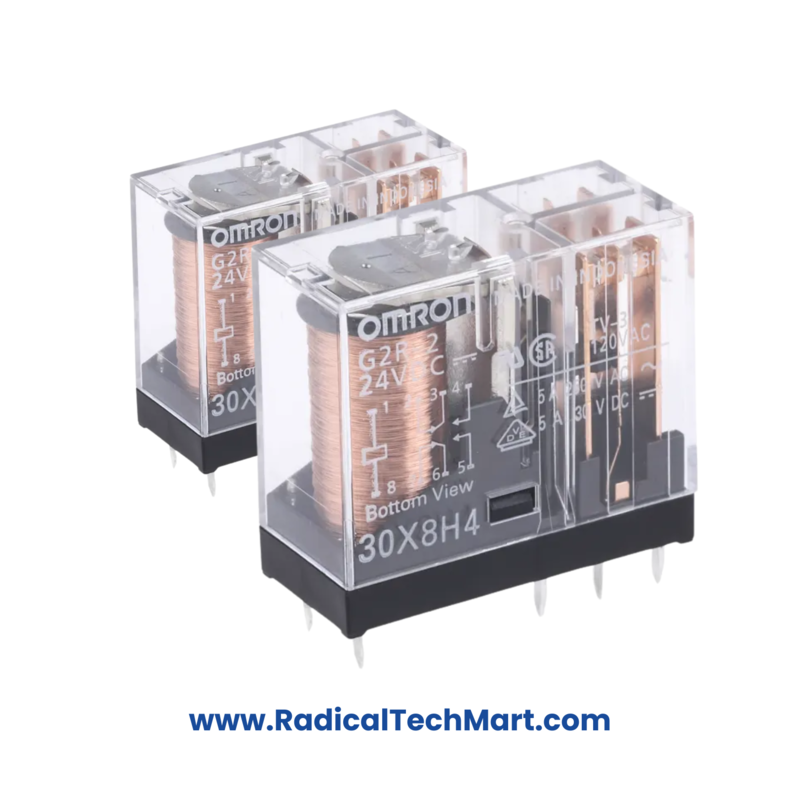

G2R1 & G2R2 Relay 24V

Product Specifications & Details:

General Relay G2R1 24V:

• Voltage: 24V DC
• Contact Configuration: SPDT (Single Pole Double Throw)
• Max Current: 10A (resistive load)
• Coil Power: 0.9W
• Contact Resistance: ≤ 100 mΩ (initial)
• Insulation Resistance: ≥ 100 MΩ
• Mechanical Life: 10 million operations
• Electrical Life: 100,000 operations (at rated load)
• Operating Temperature: -40°C to +70°C
• Mounting Type: PCB Mount
• Relay Type: Electromagnetic

General Relay G2R2 24V:

• Voltage: 24V DC
• Contact Configuration: DPDT (Double Pole Double Throw)
• Max Current: 10A (resistive load)
• Coil Power: 0.9W
• Contact Resistance: ≤ 100 mΩ (initial)
• Insulation Resistance: ≥ 100 MΩ
• Mechanical Life: 10 million operations
• Electrical Life: 100,000 operations (at rated load)
• Operating Temperature: -40°C to +70°C
• Mounting Type: PCB Mount
• Relay Type: Electromagnetic

These relays are widely used in automation systems, industrial equipment, and control systems, providing reliable switching capabilities for both AC and DC circuits. They feature long operational life and strong resistance to environmental conditions, making them ideal for various industrial applications.
