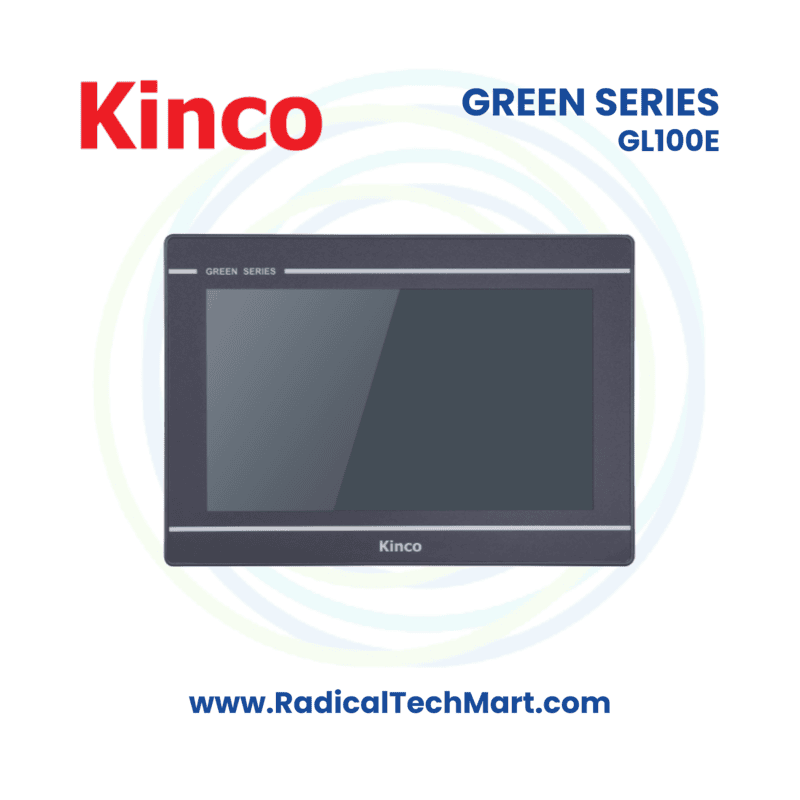

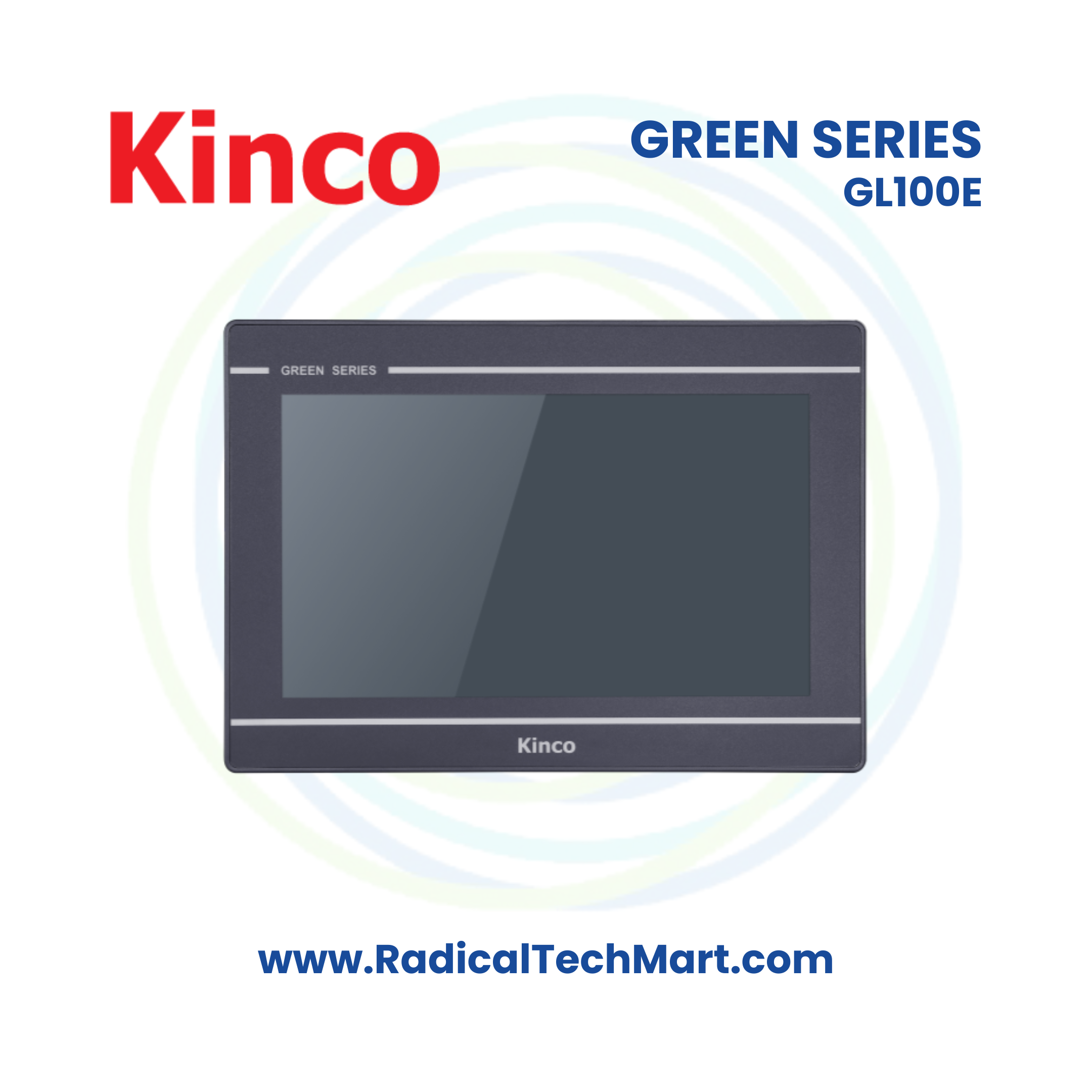

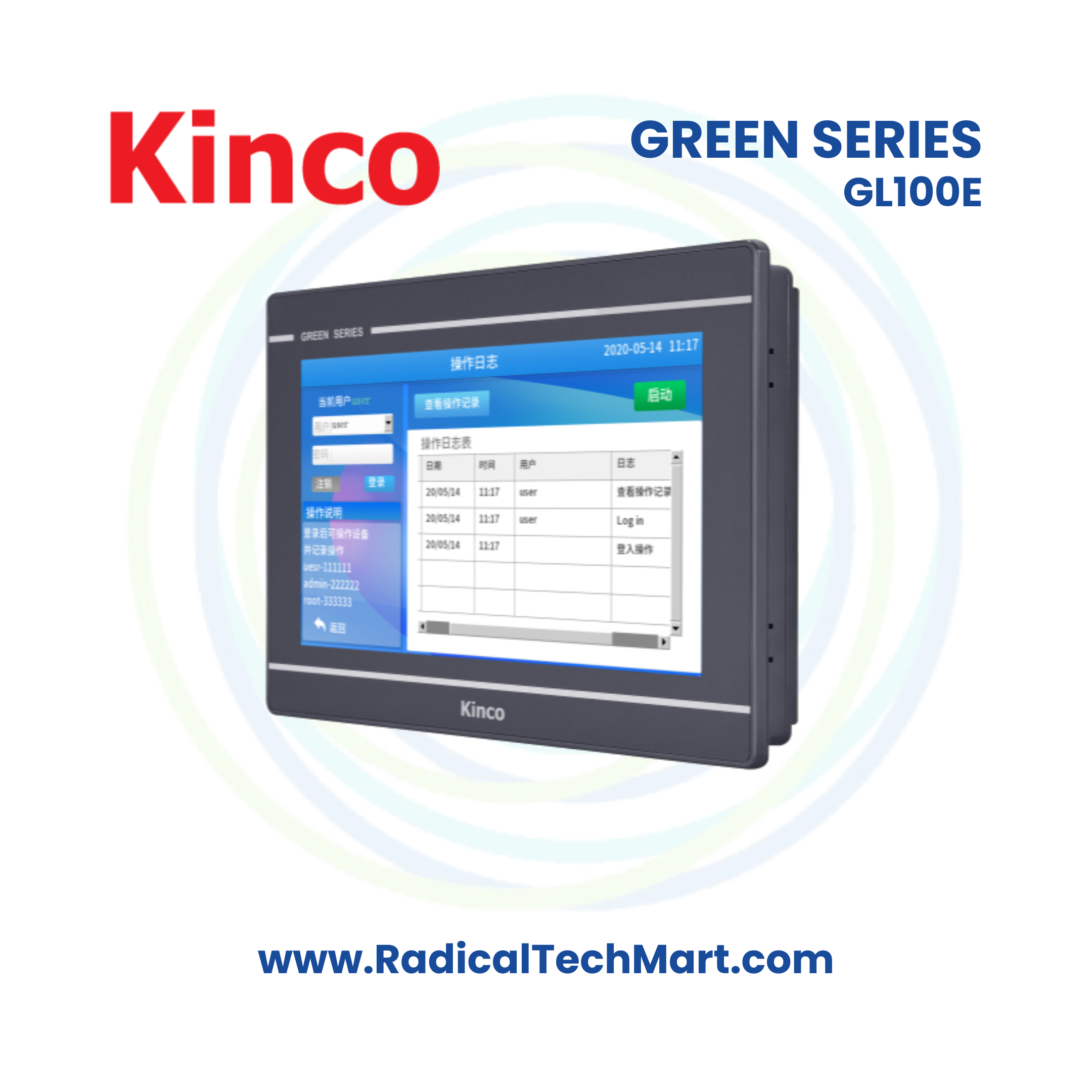

Green Economical Series 10" HMI

Performance Specification

• Display Size: 10.1" TFT
• Display Area: 227.72 (W) × 125.28 (H) mm
• Resolution: 1024 × 600 px
• Display Color: 16.77M true colors
• Visual Angle: 70/70/60/70 (L/R/U/D)
• Contrast: 500:1
• Backlight: LED
• Luminance: 400 cd/m²
• LCD Life: Over 30,000 hours
• Touch Panel: 4-wire precision resistance network (surface hardness: 4H)
• CPU: ARM RISC 32-bit, 800 MHz
• Memory: 256 MB Flash Memory + 128 MB Memory
• RTC: Built-in RTC

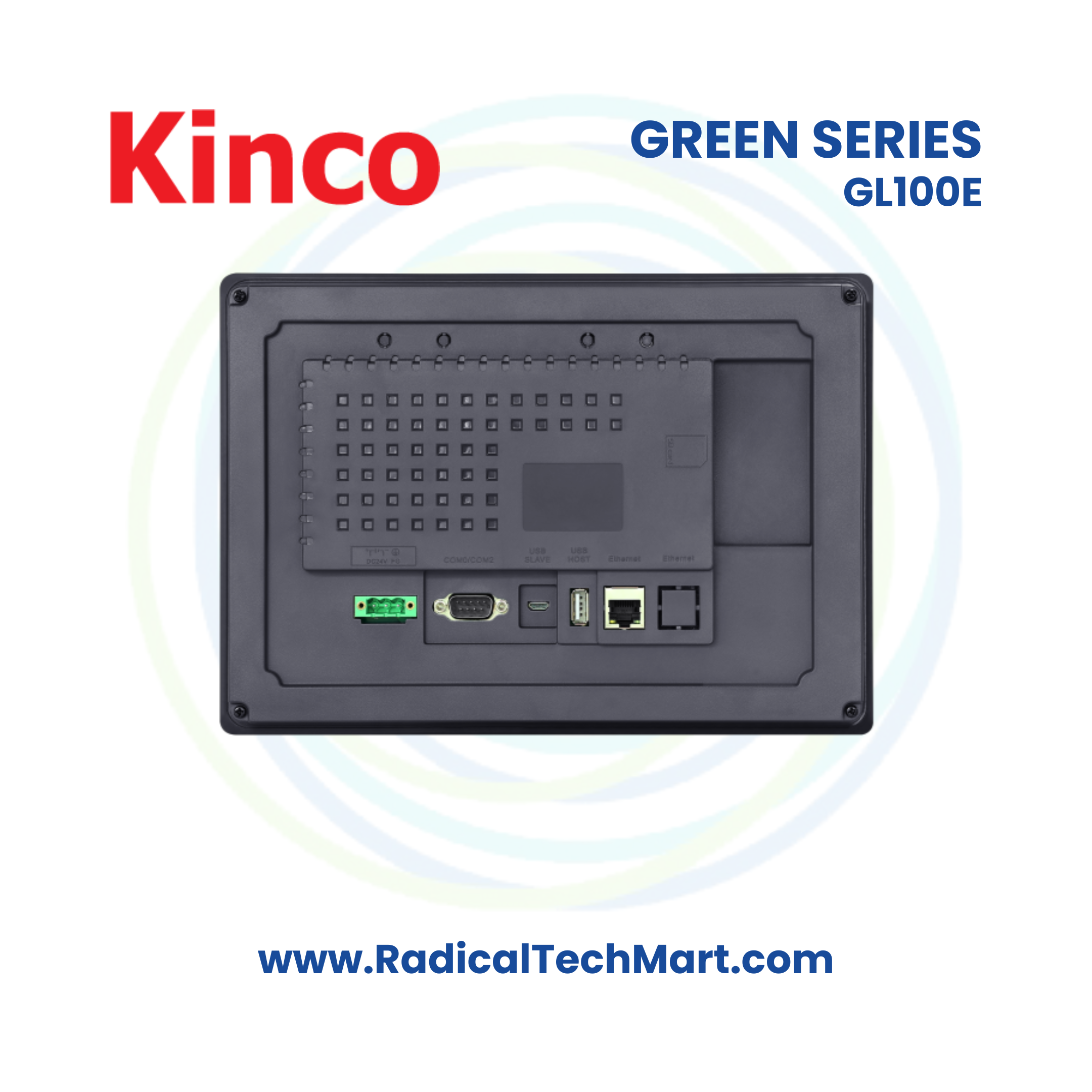

• External Storage: 1 USB Host
• Printer Port: USB Host/Serial port
• Ethernet: 10/100M adaptable Ethernet interface
• Program Download: USB Slave (Micro USB) / U Disk / Ethernet
• Communication:
  • COM0: RS232/RS485/RS422
  • COM2: RS232

Electrical Specification

• Input Range: DC 10V~DC 28V, inbuilt isolated power supply
• Power: 6W @ DC 24V
• Allowable Loss of Power: < 3ms
• Insulation Resistance: Greater than 50MΩ @ 500V DC
• Hi-pot Test: 500V AC for 1 minute

Structure Specification

• Shell Material: Engineering plastics
• Shape Size: 271 × 191 × 36 mm
• Cutout Size: 260 × 180 mm
• Weight: 0.9 Kg

Environmental Specification

• Working Temperature: 0~50°C
• Working Humidity: 10~90% RH (non-condensing)
• Storage Temperature: -20~60°C
• Storage Humidity: 10~90% RH (non-condensing)
• Sine Vibration Test: 10~500Hz, 30 m/s², X, Y, Z direction/hour
• Cooling Mode: Natural air cooling

Product Certification

• Panel Protection Grade: Conforming to IP65 certification (4208-93)
• CE Certification:
  • EN61000-6-4:2007+A1:2011
  • EN61000-6-2:2005

Software

• Configuration Software: Kinco DTools V4.1 or above version
