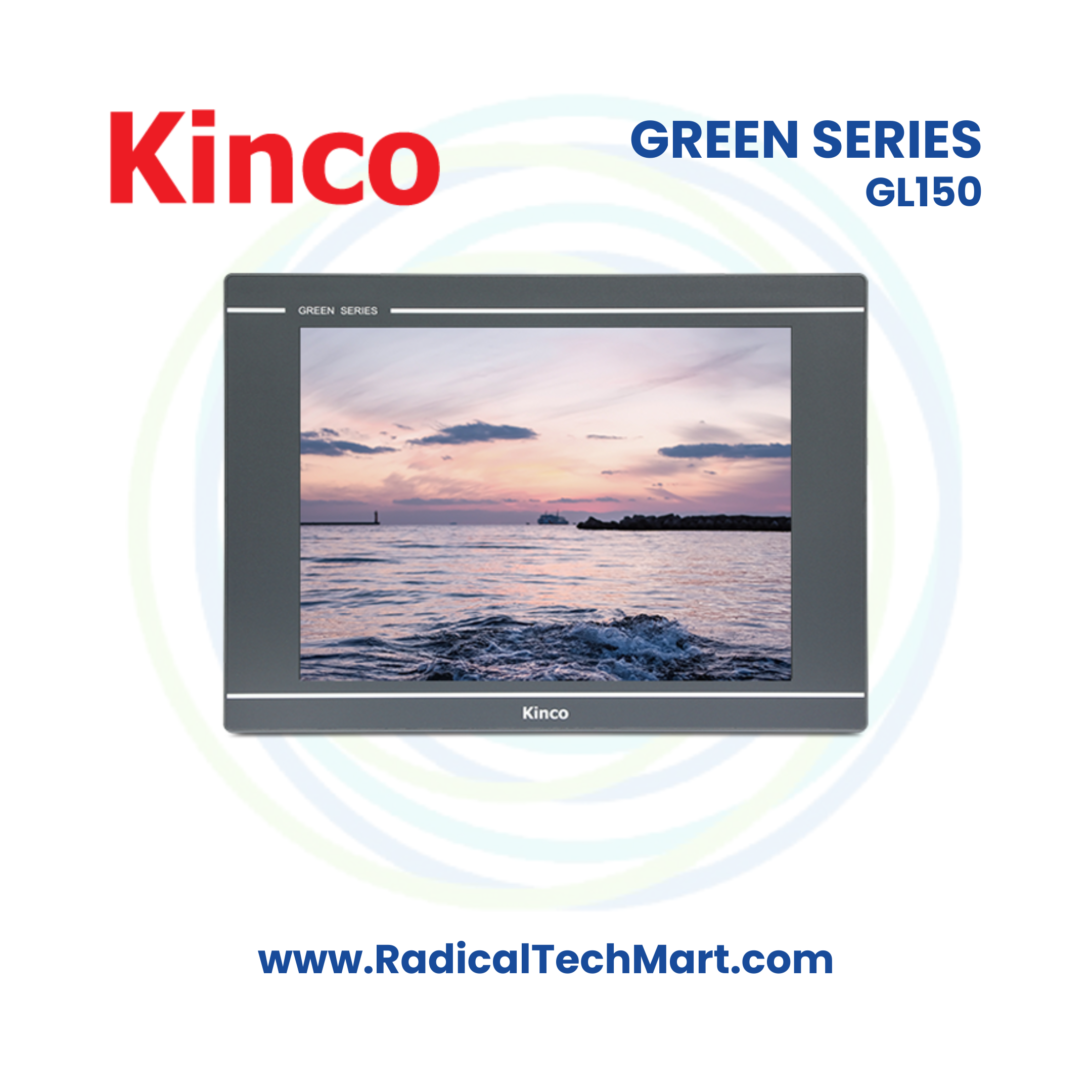

Green Economical Series 15" HMI

Performance Specification

• Display Size: 15" TFT
• Display Area: 304.13(W) × 228.10(H) mm
• Resolution: 1024 × 768 px
• Display Color: 65,536 colors
• Visual Angle: 80°/80°/80°/80° (L/R/U/D)
• Contrast Ratio: 800:1
• Backlight: LED
• Luminance: 420 cd/m²
• LCD Life: 50,000 hours
• Touch Panel: 4-wire precision resistance network (surface hardness 4H)
• CPU: ARM RISC 32-bit, 800 MHz
• Memory: 256 MB Flash Memory + 128 MB RAM
• RTC: Built-in RTC
• External Storage: 1 USB Host
• Printer Port: USB Host / Serial Port
• Ethernet: LAN0: 10/100 Mbps
• Program Download: USB Slave (Micro USB) / U Disk / Ethernet
• Communication: COM: RS232 / RS485 / RS422; COM2: RS232

Electrical Specification

• Input Range: DC 10.8V ~ DC 28V
• Power Consumption: 16W @ DC 24V
• Allowable Loss of Power: <3 ms
• Insulation Resistance: 50 MΩ @ 500V DC
• Hi-pot Test: 500V AC for 1 minute

Structure Specification

• Shell Material: Engineering Plastics
• Shape Size: 398 × 298 × 47 mm
• Cutout Size: 383 × 283 mm
• Weight: 3 kg

Environmental Specification

• Working Temperature: -10 ~ 55℃
• Working Humidity: 10 ~ 90% RH (non-condensing)
• Storage Temperature: -20 ~ 60℃
• Storage Humidity: 10 ~ 90% RH (non-condensing)
• Sine Vibration Test: 10 ~ 500 Hz, 30 m/s², X, Y, Z direction/hour
• Cooling Mode: Natural Air Cooling

Product Certification

• Panel Protection Grade: IP65 certification (4208-93)
• CE Certification: CE: EN61000-6-4:2007+A1:2011, EN61000-6-2:2005

Software

• Configuration Software: Kinco DTools V4.1 and above
