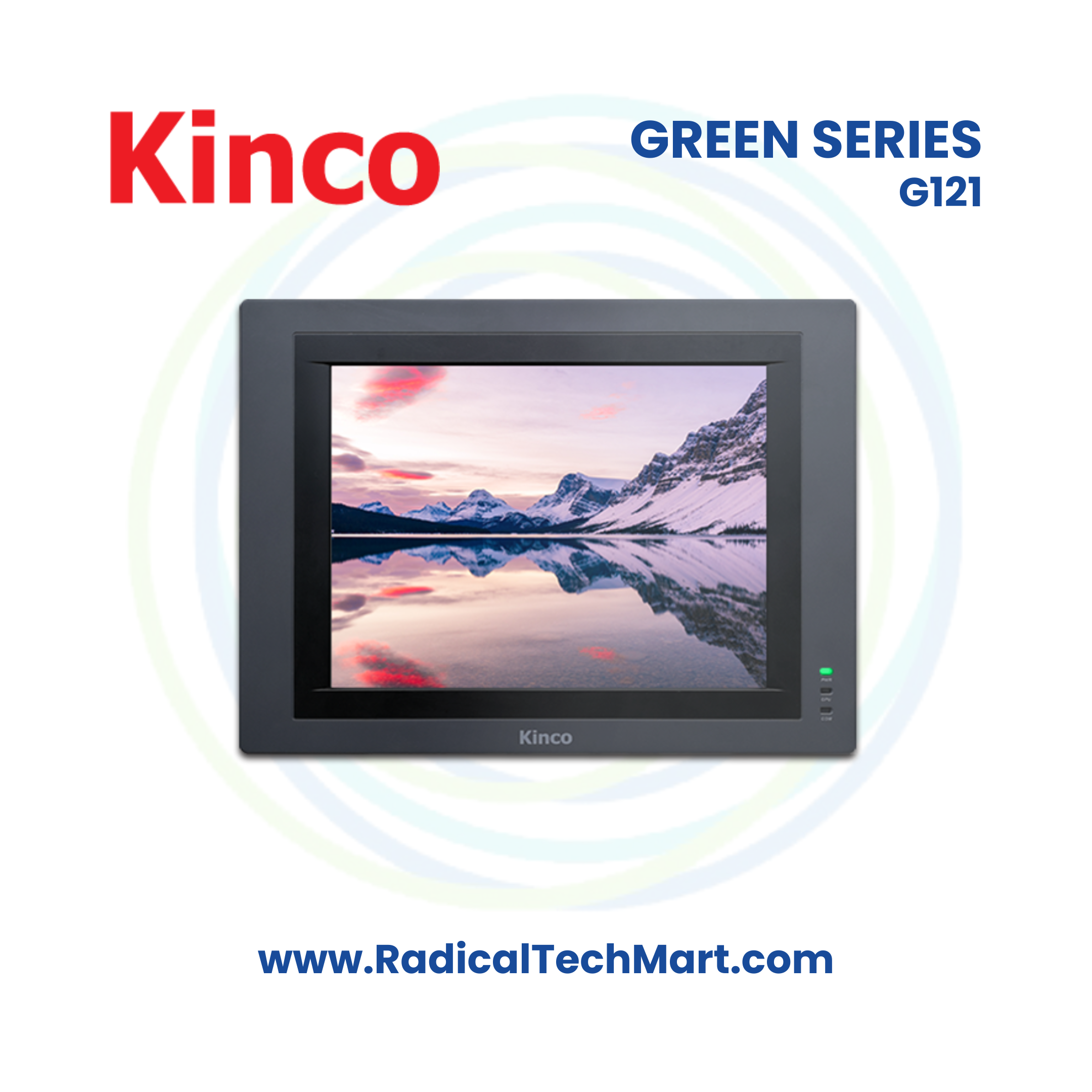

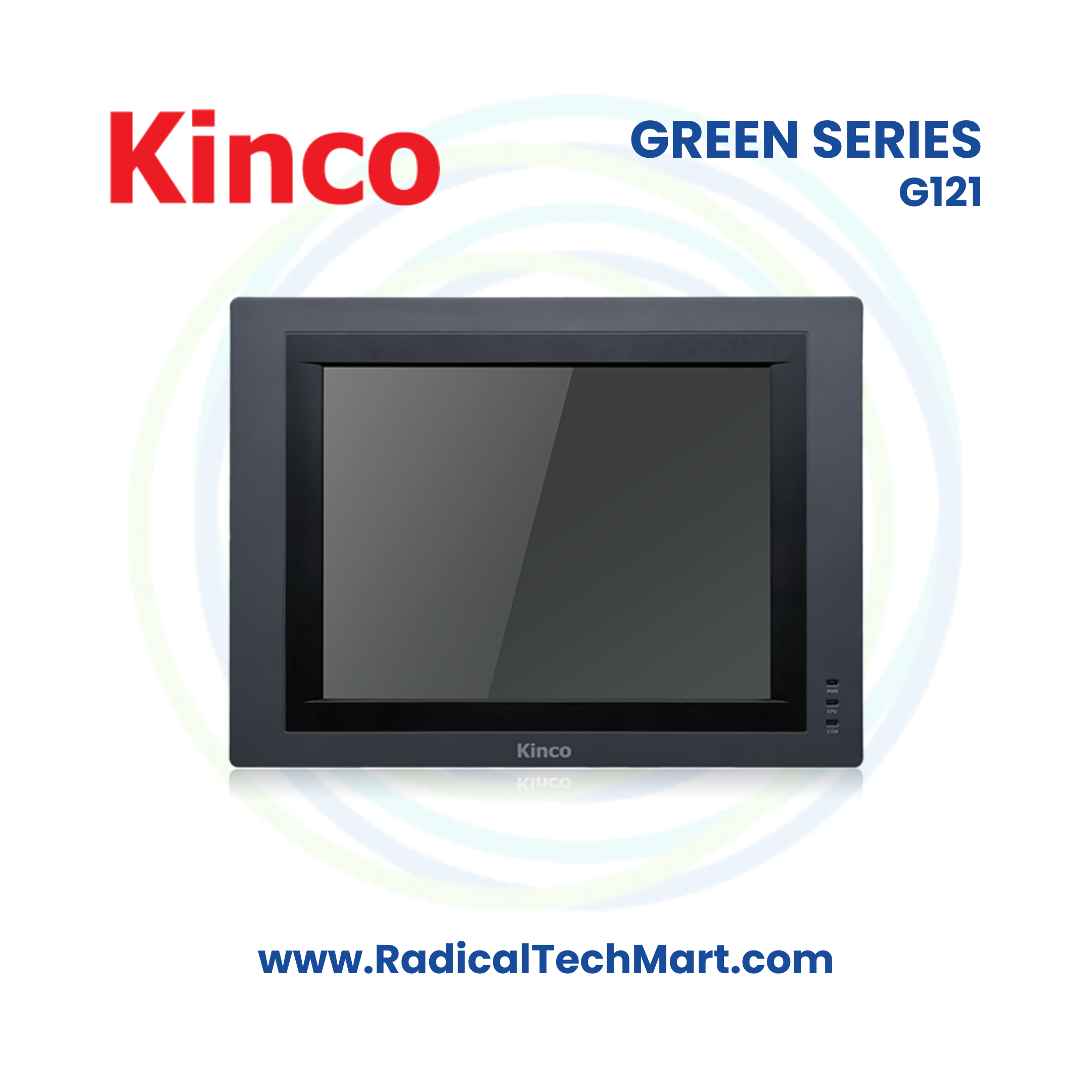

Green Standard 12.1" Series

Performance Specification

• Display Size: 12.1" TFT
• Display Area: 246 (W) × 184.5 (H) mm
• Resolution: 800 × 600 px
• Display Color: 65,536 colors
• Visual Angle: 80/80/65/75 (L/R/U/D)
• Contrast: 800:1
• Backlight: LED
• Luminance: 400 cd/m²
• LCD Life: 50,000 hours
• Touch Panel: 4-wire precision resistance network (surface hardness: 4H)
• CPU: ARM RISC 32-bit, 800 MHz
• Memory: 256 MB Flash Memory + 128 MB Memory
• RTC: Built-in RTC
• External Storage: 1 USB Host + 1 SD Card
• Printer Port: USB Host / Serial port
• Ethernet: LAN0: 10/100 Mbps
• Program Download: USB Slave (Micro USB) / U Disk / Ethernet
• Communication:
  • COM0: RS232 / RS485 / RS422
  • COM1: RS485 / RS422
  • COM2: RS232

Electrical Specification

• Input Range: DC 12V~DC 28V, inbuilt isolated power supply
• Power: 10.8W @ DC 24V
• Allowable Loss of Power: < 3ms
• Insulation Resistance: Greater than 50MΩ @ 500V DC
• Hi-pot Test: 500V AC for 1 minute

Structure Specification

• Shell Material: Engineering plastics
• Shape Size: 350 × 260 × 54 mm
• Cutout Size: 339 × 249 mm
• Weight: 2.2 Kg

Environmental Specification

• Working Temperature: -10~55°C
• Working Humidity: 10~90% RH (non-condensing)
• Sine Vibration Test: 10~500Hz, 30 m/s², X, Y, Z direction/hour
• Cooling Mode: Natural air cooling

Product Certification

• Panel Protection Grade: Conforming to IP65 certification (4208-93)
• CE Certification:
  • EN61000-6-4:2007+A1:2011
  • EN61000-6-2:2005

Software

• Configuration Software: Kinco DTools V4.1 or above version
