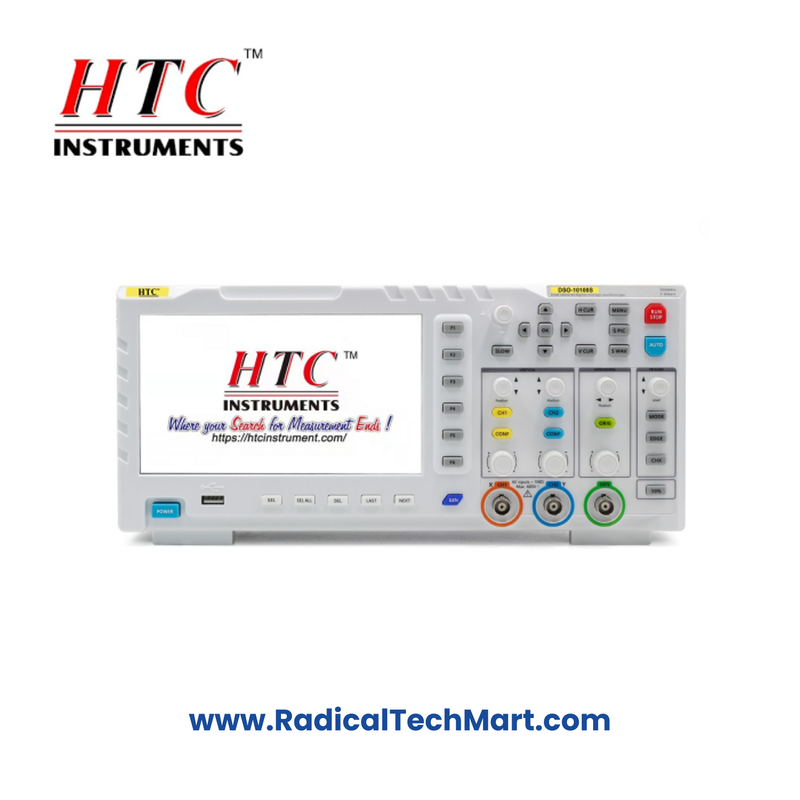

HTC DSO-10100S Digital Storage Oscilloscope

Product Summary:
HTC DSO-10100S is a 100MHz Digital Storage Oscilloscope with a wide range of vertical sensitivity, high-speed sampling, and versatile trigger modes, ideal for industrial and educational electronics testing.

Key Features:

• Bandwidth: 100 MHz

• Vertical Sensitivity: 50mV/div ~ 500V/div

• Time Base: 50S/div ~ 10nS/div

• Trigger Modes: Single, Normal, Auto

• Trigger Edge: Rising/Falling

• Input Coupling: AC/DC

• Input Resistance: 1MΩ

• Max Test Voltage: 40V (1x probe), 400V (10x probe)

• Dimensions: 310mm x 145mm x 70mm

• Power: 100240VAC RMS, 4560Hz, CAT II

Applications:

• Electronic component testing and debugging

• R&D and academic laboratories

• Automotive signal analysis

• Industrial equipment maintenance

• Embedded system design

Product Benefits:

• High signal accuracy for precise testing

• Wide input range for diverse use cases

• Compact design for bench-top convenience

• Intuitive controls for ease of use

• Comes with dual probes, USB adapter & user manual

FAQs:

Q1: What is the bandwidth of the HTC DSO-10100S?
A1: The oscilloscope offers a 100 MHz bandwidth suitable for most electronic testing applications.

Q2: What voltage can I test with the included probes?
A2: You can test up to 40V with the 1x probe and up to 400V with the 10x probe.

Q3: Does the oscilloscope support both AC and DC coupling?
A3: Yes, the DSO-10100S supports both AC and DC input coupling modes.
