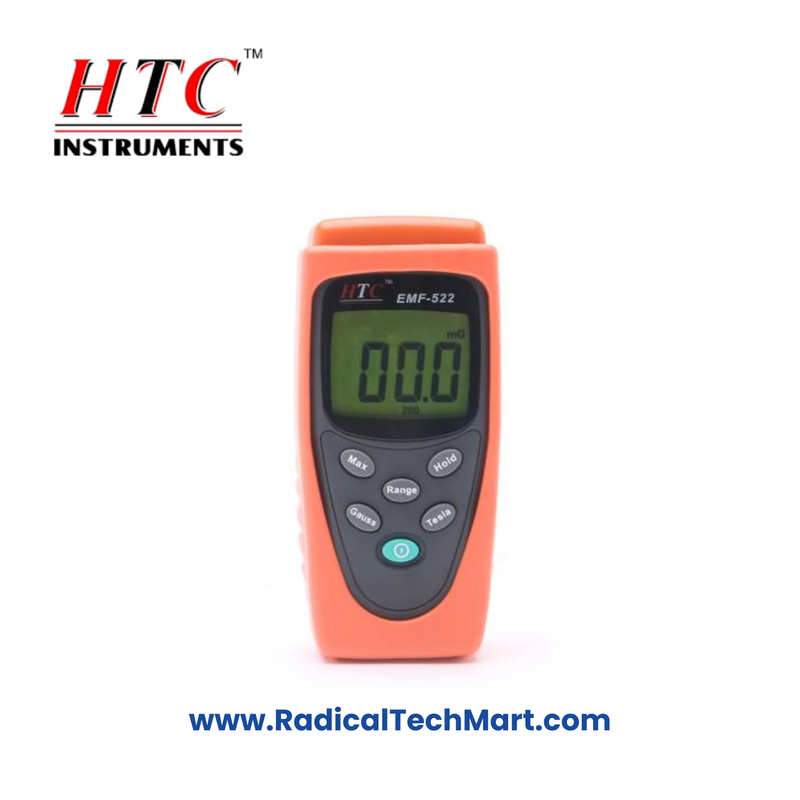

HTC EMF-522 Electro-Magnetic Field Tester
Customize
Share :
Product Summary:
The HTC EMF-522 Electro-Magnetic Field Tester is designed to measure electromagnetic fields with high accuracy. With its single-axis sensor and wide frequency response, it’s perfect for environmental testing and industrial applications.
Key Features:
Range: 200/2000mG, 20/200μT
Resolution: 0.1/1mG or 0.01/0.1μT
Frequency Response: 30~300Hz
Single Axis Sensor
Accuracy: ±(2.5%+6dgt) at 50Hz/60Hz
Sample Rate: 2.5 times per second
LCD Display: 3½ Digits, 1,999 Counts
Overload Indicator: LCD displays “OL”
Battery Life: Approx. 100 hours
Powered by a 9V battery (6F22)
Operating Temperature: 5~40˚C, below 80% RH
Storage Temperature: -10~60˚C, below 70% RH
Applications:
Environmental Electromagnetic Field Testing
Industrial Equipment Assessment
Research and Development
Workplace Safety in EMF Zones
Residential Electromagnetic Pollution Monitoring
Product Benefits:
Highly accurate measurements for professional use
Long battery life for extended testing sessions
Compact and portable design for easy transport
Ideal for both indoor and outdoor EMF testing
Easy-to-read LCD display for quick results
FAQ:
Q. What is the range of the HTC EMF-522 Electro-Magnetic Field Tester?
The tester has a range of 200/2000mG, 20/200μT, making it suitable for a wide range of electromagnetic field measurements.
Q. How accurate is the HTC EMF-522?
It offers an accuracy of ±(2.5%+6dgt) at 50Hz/60Hz, ensuring precise and reliable readings.
Q. What is the battery life of the HTC EMF-522?
The battery life is approximately 100 hours, allowing for extended use without frequent recharging or replacements.
