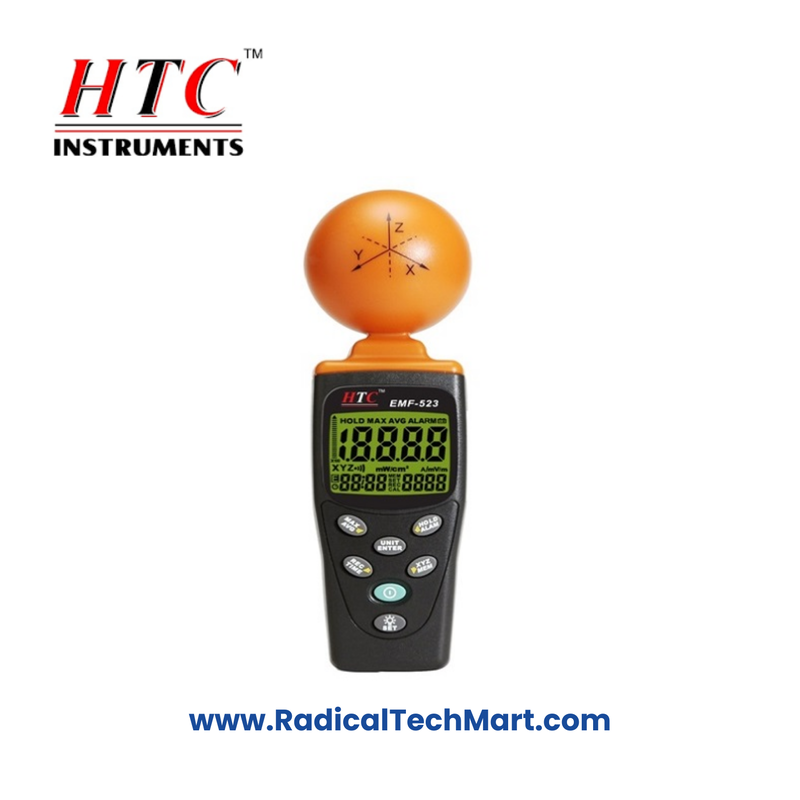

HTC EMF-523 Electro-Magnetic Field Tester

Product Summary: The HTC EMF-523 is a digital, triaxial electromagnetic field tester designed for high accuracy in measuring electric, magnetic, and electromagnetic fields from 50 MHz to 3.5 GHz.

Key Features:

• Digital, triaxial measurement with isotropic directional characteristic

• Measurement range: Continuous, with selectable units (mV/m, V/m, μA/m, mA/m, μW/m², mW/m², μW/cm²)

• High resolution: 0.1 mV/m, 0.1 μA/m, 0.001 μW/m², 0.001 μW/cm²

• Sample rate of 3 times per second

• Overload limit: 0.42 mW/cm² (11V/m) per axis

• Frequency range: 50 MHz ~ 3.5 GHz, with specified measurement ranges

• Isotropy deviation: Typically ±1.0 dB (f2.45GHz)

• Standard accessories: Soft carrying case, manual

• Powered by a 9V battery (6F22)

Applications:

• Measurement of electromagnetic fields in industrial settings

• Safety assessments of electromagnetic exposure in workplaces

• Environmental monitoring of electromagnetic pollution

Product Benefits:

• Provides precise and accurate readings for a variety of electromagnetic field types

• Compact and portable for field use

• Quick and easy setup with minimal calibration required

• Reliable and consistent performance for professional use

• Ideal for health and safety testing in compliance with regulatory standards

FAQs:

What is the measurement range of the HTC EMF-523?

The device measures electromagnetic fields within a frequency range of 50 MHz to 3.5 GHz.

How long does it take to set up the HTC EMF-523 for measurements?

The typical setting time is 1.5 seconds, from 0 to 90% of the measurement value.

Can the HTC EMF-523 be used for long-term field monitoring?

Yes, it is suitable for both short-term and long-term field measurements due to its high accuracy and portability.
