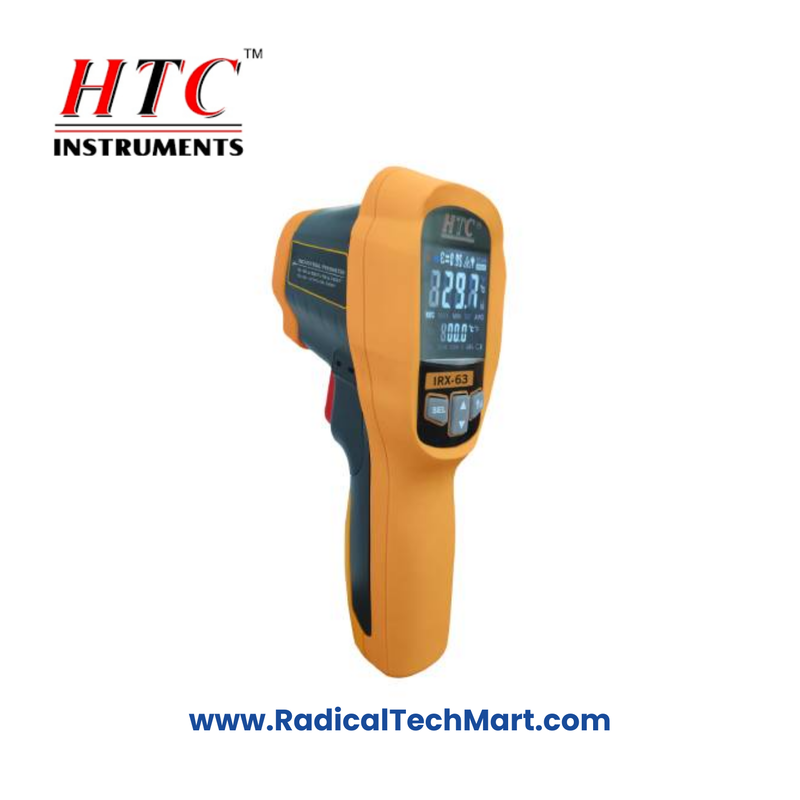

HTC Instruments IRX-63 Contact and Infrared Thermometer
Dual-function thermometer with Type K probe and IR sensor for fast, high-range temperature measurement in industrial settings.
Customize
Share :
Product Summary:
The HTC IRX-63 is a professional-grade dual infrared and contact thermometer capable of measuring temperatures up to 1370°C (contact) and 850°C (IR), ideal for industrial and process automation applications.
The HTC IRX-63 is a professional-grade dual infrared and contact thermometer capable of measuring temperatures up to 1370°C (contact) and 850°C (IR), ideal for industrial and process automation applications.
Key Features:
Dual laser target pointer for precise aiming
IR range: -50°C to 850°C; Contact: -50°C to 1370°C
C/F selectable temperature units
Max, Min, DIF, and AVG readings
Adjustable emissivity (0.10 to 1.0)
High/Low alarms with audible alert
Data hold, backlit LCD, and auto power off
Over-range and low battery indication
Trigger lock for continuous measurement
Optical Resolution: 30:1
Compatible with Type K thermocouples
Dual laser target pointer for precise aiming
IR range: -50°C to 850°C; Contact: -50°C to 1370°C
C/F selectable temperature units
Max, Min, DIF, and AVG readings
Adjustable emissivity (0.10 to 1.0)
High/Low alarms with audible alert
Data hold, backlit LCD, and auto power off
Over-range and low battery indication
Trigger lock for continuous measurement
Optical Resolution: 30:1
Compatible with Type K thermocouples
Applications:
Industrial equipment temperature monitoring
HVAC system diagnostics
Electrical panels and machinery inspection
Food and chemical process control
Automotive and workshop diagnostics
Industrial equipment temperature monitoring
HVAC system diagnostics
Electrical panels and machinery inspection
Food and chemical process control
Automotive and workshop diagnostics
Product Benefits:
Dual measurement modes increase flexibility
High-temperature range suits heavy-duty applications
Improved accuracy and laser targeting for precise readings
Emissivity adjustment enhances material compatibility
User-friendly design with backlight and data hold functions
Dual measurement modes increase flexibility
High-temperature range suits heavy-duty applications
Improved accuracy and laser targeting for precise readings
Emissivity adjustment enhances material compatibility
User-friendly design with backlight and data hold functions
FAQs:
Q1: What is the advantage of dual measurement (IR and contact)?
A1: It allows users to choose between non-contact surface readings and more precise internal temperature checks with the Type K probe.
Q2: Can I use this for high-heat industrial applications?
A2: Yes, it can measure up to 850°C via infrared and up to 1370°C with the contact probe, making it suitable for high-temperature environments.
Q3: What does optical resolution 30:1 mean?
A3: It means the thermometer can accurately measure a 1 cm target from 30 cm away, ensuring precise readings from a safe distance.
Q1: What is the advantage of dual measurement (IR and contact)?
A1: It allows users to choose between non-contact surface readings and more precise internal temperature checks with the Type K probe.
Q2: Can I use this for high-heat industrial applications?
A2: Yes, it can measure up to 850°C via infrared and up to 1370°C with the contact probe, making it suitable for high-temperature environments.
Q3: What does optical resolution 30:1 mean?
A3: It means the thermometer can accurately measure a 1 cm target from 30 cm away, ensuring precise readings from a safe distance.
