Indfos PSM-550-B2-41-C-D Pressure Switch
Customize
Share :
Product Summary:

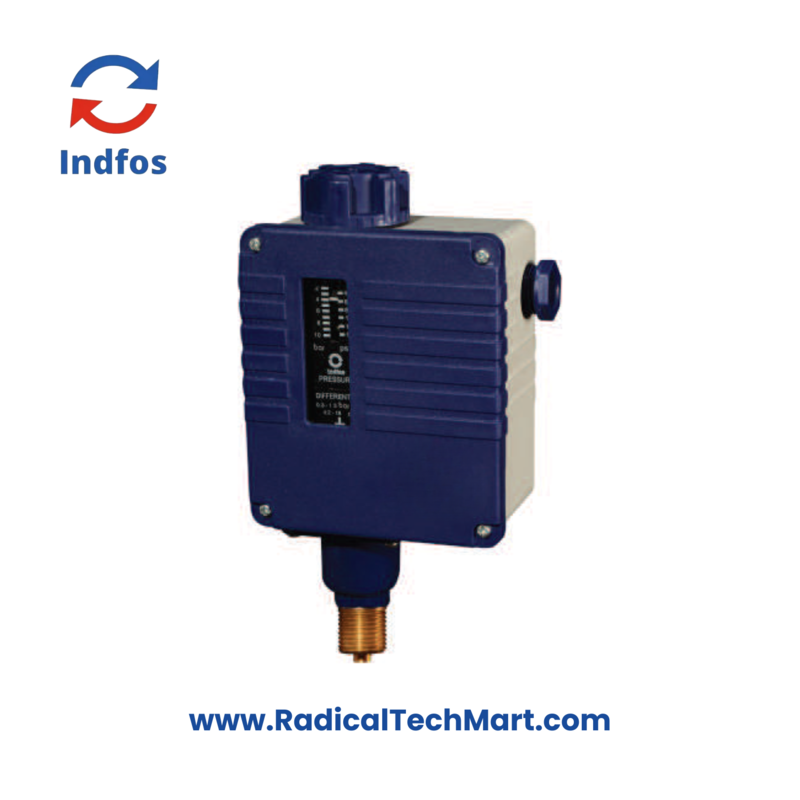

The Indfos PSM-550-B2-41-C-D is a diaphragm-operated pressure switch designed for reliable performance in air, water, oil, and non-corrosive fluid applications. Engineered for durability, it features a factory-set pressure range and supports direct mounting.
Key Features:
Factory-set pressure range: 1 to 10 bar
Diaphragm operated for high accuracy
Compact and rugged metallic body
Microswitch-based SPDT output
¼” BSP (M) process connection
Electrical rating: 16A, 250VAC
IP65 enclosure for harsh environments
Applications:
Water treatment and filtration plants
HVAC and air compressor systems
Oil and hydraulic lines
Industrial process automation
Pump and motor protection
Product Benefits:
Plug-and-play operation with preset values
Long operational life due to heavy-duty construction
Suitable for high-vibration areas
Wide industrial compatibility
Low maintenance and high switching accuracy
FAQs:
Q1. Can I adjust the set point of the PSM-550-B2-41-C-D?
No, this model comes factory set and is not field-adjustable, making it ideal for standard applications requiring consistent switching.
Q2. What type of media is supported with this pressure switch?
It is suitable for air, water, oil, and other non-corrosive fluids compatible with diaphragm materials.
Q3. Is the Indfos PSM-550-B2-41-C-D suitable for outdoor use?
Yes, its IP65 enclosure ensures protection against dust and water, making it suitable for rugged outdoor environments.
