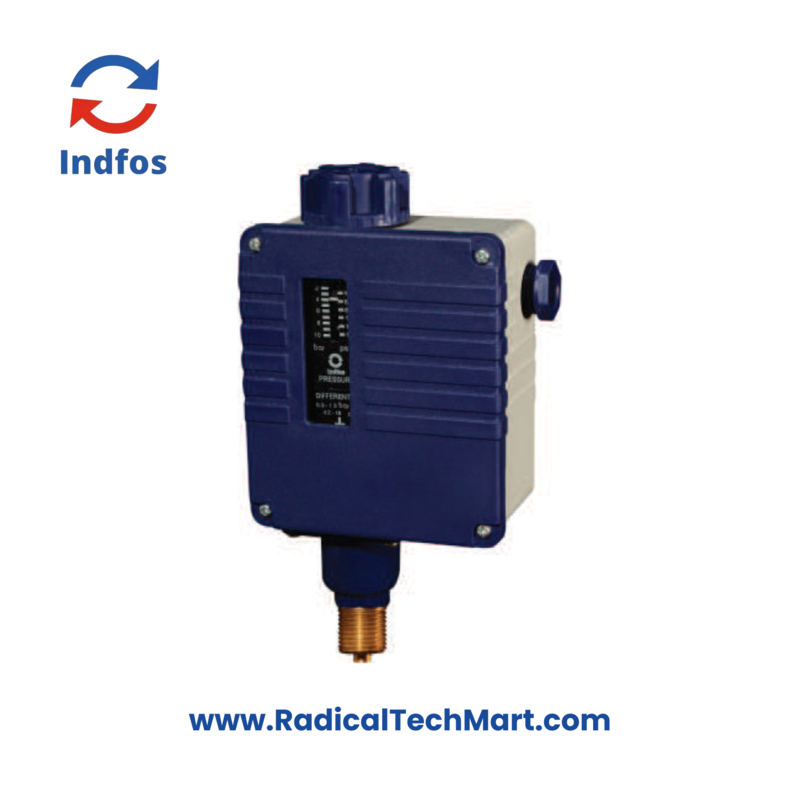

Indfos PSM-550-C1-41-C-D Pressure Switch
Product Summary:
The Indfos PSM-550-C1-41-C-D is a robust electromechanical pressure switch designed for accurate pressure monitoring and control in industrial applications. Engineered for reliability and repeatability, it is suitable for both air and liquid media.
Key Features:
Pressure range: 3 to 41 kg/cm²
SPDT microswitch output
Diaphragm sensing element
Factory set or field-adjustable
Rugged weatherproof enclosure (IP65)
1/4” BSP (F) process connection
Repeatability ±2% of FSR
Applications:
Hydraulic and pneumatic systems
Process control in oil and gas
HVAC and refrigeration systems
Water treatment and pumping systems
Machine automation and control panels
Product Benefits:
Long operational life and durability
Ensures system safety by automatic cut-off
Easy installation and maintenance
High switching accuracy and stability
Compact, weatherproof design for harsh environments
FAQs:
Q.1 What is the set pressure range for the Indfos PSM-550-C1-41-C-D?
The switch covers a range of 3 to 41 kg/cm² and can be set during installation or factory-calibrated.
Q.2 Can this pressure switch be used for both air and liquids?
Yes, it's suitable for both gaseous and liquid media that are compatible with the wetted parts.
Q.3 Does the switch offer weather resistance?
Yes, it comes with a weatherproof (IP65-rated) enclosure, ideal for outdoor and industrial use.
