Product Details

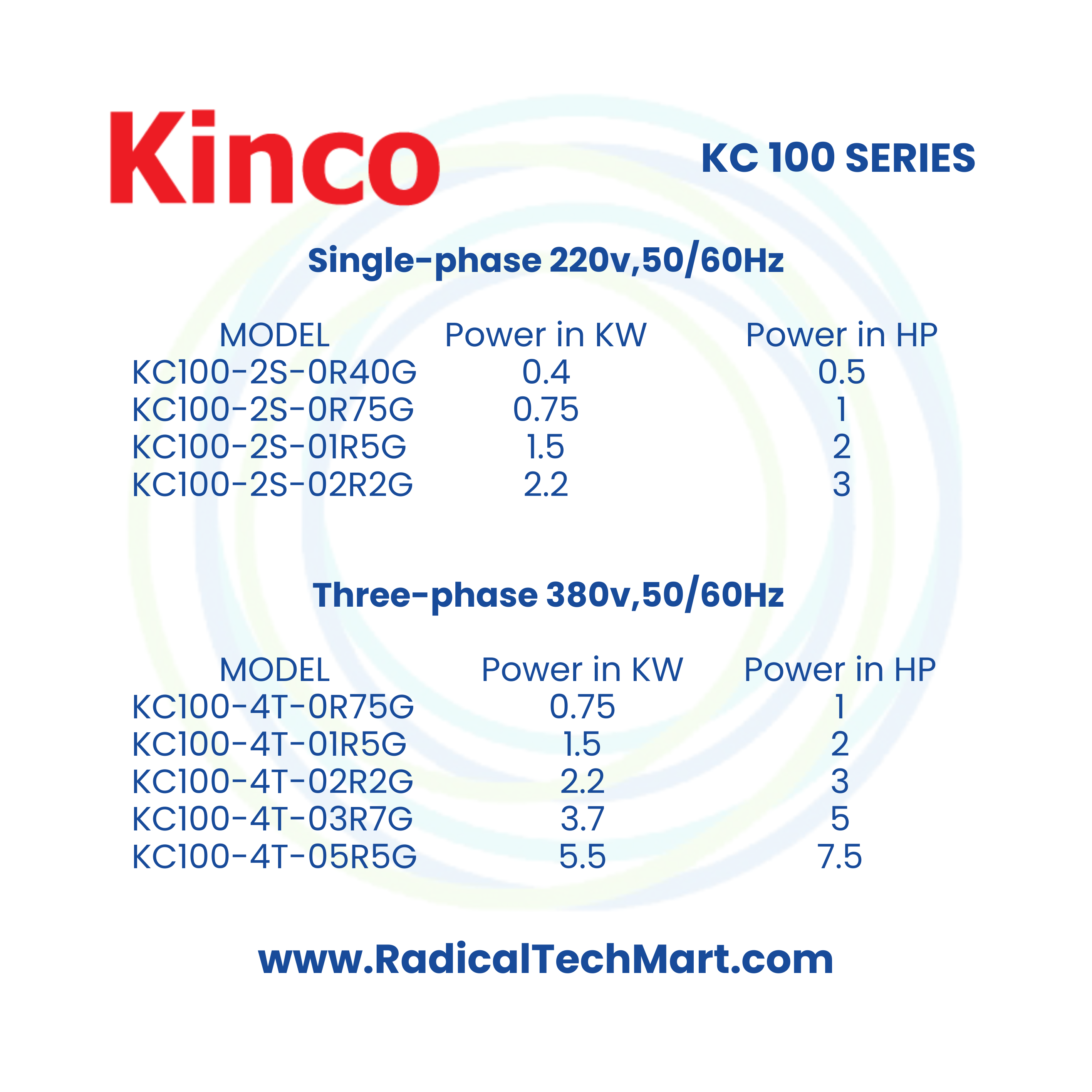

| Inverter model | Power supply capacitykVA | input currentA | output currentA | Adaptive motorkW |
| single-phase 200-240V 50Hz/60Hz | ||||
| KC100-2S-0R40G | 1.0 | 5.3 | 2.5 | 0.4 |
| KC100-2S-0R75G | 1.5 | 8.2 | 4.0 | 0.75 |
| KC100-2S-01R5G | 3.0 | 14.0 | 7.5 | 1.5 |
| KC100-2S-02R2G | 4.0 | 23.0 | 10.0 | 2.2 |
| three-phase 380-480V 50Hz/60Hz | ||||
| KC100-4T-0R75G | 1.5 | 3.4 | 2.3 | 0.75 |
| KC100-4T-01R5G | 3.0 | 5.0 | 3.7 | 1.5 |
| KC100-4T-02R2G | 4.0 | 5.8 | 5.5 | 2.2 |
| KC100-4T-03R7G | 5.9 | 10.5 | 8.8 | 3.7 |
| KC100-4T-05R5G | 8.5 | 14.5 | 13.0 | 5.5 |
