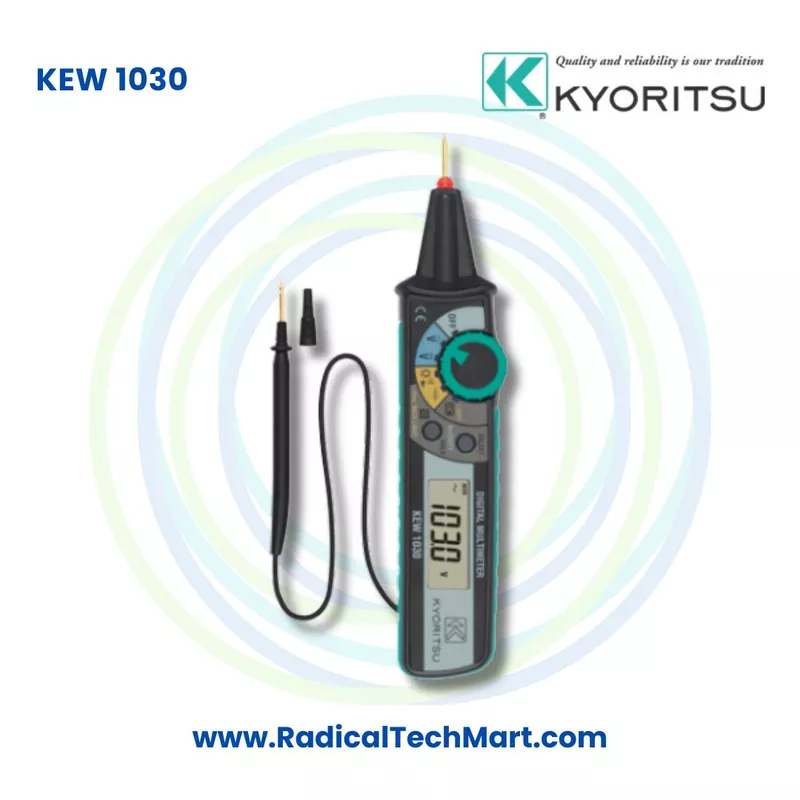

Kyoritsu 1030 Digital Pen Type Multimeter

A. Product Overview

The Kyoritsu KEW 1030 is a digital pen type multimeter designed for technicians and electricians who need a compact instrument for everyday electrical measurements.

Unlike conventional handheld multimeters, its pen shaped construction makes it easy to hold and use in control panels, electrical cabinets and confined locations.

The KEW 1030 can be used for:

• AC voltage measurement
• DC voltage measurement
• Resistance measurement
• Capacitance measurement
• Frequency measurement
• Duty cycle measurement
• Continuity testing
• Diode testing

It also includes useful features such as auto ranging, data hold, backlit display and built in penlight illumination.

Its CAT III 600 V safety rating makes it suitable for many electrical maintenance and troubleshooting applications.

B. Working Principle

The Kyoritsu KEW 1030 works by converting the electrical signal measured through its test probes into a digital value shown on the LCD display.

For voltage measurement, the probes are connected across the electrical circuit or component. The internal electronic circuit senses the voltage and displays the measured AC or DC value.

For resistance and continuity testing, the multimeter applies a small internal test signal to the component or circuit and calculates the resistance.

During continuity testing, the instrument helps identify whether an electrical path is complete.

For capacitance and frequency measurements, the internal measurement circuit analyses the connected electrical signal and displays the corresponding value.

The auto ranging function automatically selects an appropriate measurement range, making operation faster and easier.

C. Why It Is Used

The Kyoritsu KEW 1030 Digital Pen Type Multimeter is used for quick electrical inspection, installation, troubleshooting and maintenance.

Its compact construction makes it particularly useful where a conventional multimeter may be difficult to handle.

Common uses include:

• Checking AC and DC voltage
• Testing electrical circuits
• Checking resistance of components
• Checking circuit continuity
• Testing diodes
• Measuring capacitance
• Measuring frequency
• Electrical panel troubleshooting
• Maintenance of electrical equipment
• Field inspection and servicing

The built in penlight also helps technicians perform measurements in dark electrical panels and poorly illuminated working areas.

D. Suitable Buyers

The Kyoritsu KEW 1030 is suitable for:

• Electricians
• Electrical maintenance engineers
• Industrial maintenance technicians
• Electrical contractors
• Panel builders
• Control panel technicians
• HVAC service technicians
• Facility maintenance teams
• Machine maintenance engineers
• Industrial automation technicians
• Service engineers
• Electrical testing professionals
• Technical training institutes
• Factories and manufacturing plants

Frequently Asked Questions

1. What is the Kyoritsu KEW 1030?

The Kyoritsu KEW 1030 is a compact digital pen type multimeter designed for electrical testing, troubleshooting and maintenance applications.

2. What can the Kyoritsu KEW 1030 measure?

It can measure AC voltage, DC voltage, resistance, capacitance, frequency and duty cycle. It can also perform continuity and diode testing.

3. What is the maximum voltage rating of the KEW 1030?

The KEW 1030 supports voltage measurements up to 600 V and has a CAT III 600 V safety rating.

4. Is the Kyoritsu KEW 1030 an auto ranging multimeter?

Yes. The auto ranging function automatically selects a suitable measurement range for easier operation.

5. Is the KEW 1030 suitable for electricians?

Yes. Its compact pen type design and electrical measurement functions make it suitable for electricians, technicians and maintenance professionals.

6. Can the Kyoritsu KEW 1030 test continuity?

Yes. It supports continuity testing for checking whether an electrical circuit or connection is complete.

7. Can the KEW 1030 test diodes?

Yes. The multimeter includes a diode testing function.

8. Can it measure capacitance?

Yes. The Kyoritsu KEW 1030 can be used for capacitance measurement.

9. Can the KEW 1030 measure frequency?

Yes. It supports frequency measurement and duty cycle measurement.

10. Does the Kyoritsu KEW 1030 have a backlight?

Yes. It includes a backlit LCD display for better visibility.

11. Does the KEW 1030 have a built in light?

Yes. The instrument includes a built in penlight that can help illuminate electrical panels and dark working areas.

12. Where is the Kyoritsu KEW 1030 commonly used?

It is commonly used in electrical panels, industrial equipment, maintenance departments, factories, service operations and electrical troubleshooting applications.

13. Is the Kyoritsu KEW 1030 suitable for industrial maintenance?

Yes. Its compact design, multiple measurement functions and CAT III 600 V rating make it suitable for many industrial electrical maintenance tasks.

14. What is the advantage of a pen type multimeter?

A pen type multimeter is compact, lightweight and easy to operate with one hand, making it useful for testing inside electrical panels and confined spaces.

15. Who manufactures the KEW 1030?

The KEW 1030 is manufactured by Kyoritsu, a manufacturer of professional electrical measuring and testing instruments.
