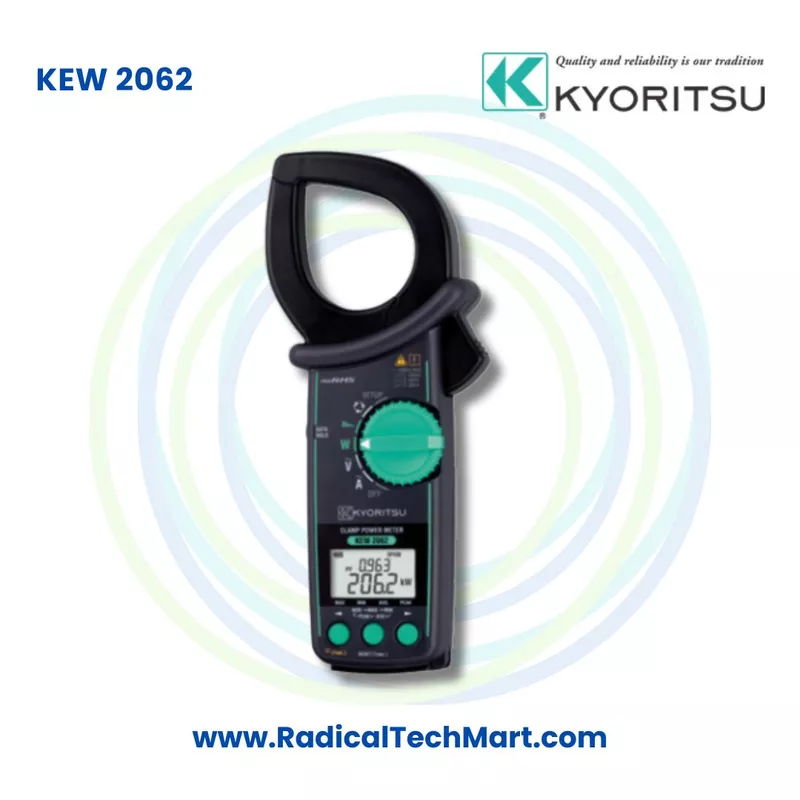

Kyoritsu 2062 Power Clamp Meter

A. Product Overview

The Kyoritsu KEW 2062 is a professional Power Clamp Meter designed for measuring electrical parameters without disconnecting the conductor.

It combines clamp current measurement with advanced power measurement functions, making it suitable for industrial electrical maintenance, energy monitoring and power analysis.

The KEW 2062 can measure:

• AC current up to 1000 A
• AC voltage up to 1000 V
• Active power
• Reactive power
• Apparent power
• Power factor
• Frequency
• Phase angle
• Phase rotation
• Harmonics up to the 30th order

It supports both single phase and three phase electrical systems.

The 55 mm tear drop shaped clamp jaw allows technicians to clamp around larger conductors easily.

Additional functions include MAX, MIN, AVG, PEAK, data hold and display backlight.

B. Working Principle

The Kyoritsu KEW 2062 works by detecting the magnetic field generated around an AC current carrying conductor.

When the clamp jaw is placed around a conductor, the meter senses the magnetic field and converts it into an electrical current reading without requiring the circuit to be disconnected.

Voltage is measured using the voltage test leads connected to the electrical circuit.

The instrument combines voltage and current measurements internally to calculate various power parameters such as active power, reactive power and apparent power.

It also calculates power factor, phase angle and frequency from the measured electrical waveform.

For harmonic measurement, the KEW 2062 analyses distortion in the electrical waveform and can display harmonic components up to the 30th order.

True RMS measurement helps provide accurate readings even when the electrical waveform is distorted or non sinusoidal.

C. Why It Is Used

The Kyoritsu KEW 2062 Power Clamp Meter is used when technicians need to analyse electrical power systems quickly and safely without interrupting the circuit.

It is useful for:

• Measuring AC current without disconnecting cables
• Checking AC voltage
• Measuring single phase power
• Measuring three phase power
• Checking active, reactive and apparent power
• Measuring power factor
• Monitoring electrical load conditions
• Checking frequency
• Checking phase sequence and phase rotation
• Analysing harmonics
• Identifying abnormal electrical conditions
• Troubleshooting industrial machinery
• Power distribution inspection
• Electrical preventive maintenance
• Energy auditing

It is particularly useful in factories and commercial installations where electrical systems need to remain operational during testing.

D. Suitable Buyers

The Kyoritsu KEW 2062 is suitable for:

• Electrical engineers
• Industrial electricians
• Electrical maintenance technicians
• Energy auditors
• Electrical contractors
• Facility management teams
• Power quality engineers
• Industrial automation engineers
• Panel builders
• Machine maintenance engineers
• HVAC maintenance professionals
• Utility maintenance teams
• Electrical testing laboratories
• Manufacturing plants
• Commercial buildings
• Data centers
• Electrical service companies

Frequently Asked Questions

1. What is the Kyoritsu KEW 2062?

The Kyoritsu KEW 2062 is a True RMS Power Clamp Meter designed for current, voltage, power, power factor, frequency, phase and harmonic measurements.

2. What is the maximum current measurement of the KEW 2062?

The Kyoritsu KEW 2062 can measure AC current up to 1000 A.

3. What voltage can the Kyoritsu KEW 2062 measure?

It can measure AC voltage up to 1000 V.

4. Is the KEW 2062 a True RMS clamp meter?

Yes. The Kyoritsu KEW 2062 uses True RMS measurement for reliable readings on both normal and distorted electrical waveforms.

5. Can the KEW 2062 measure power?

Yes. It can measure active power, reactive power and apparent power.

6. Can it measure power factor?

Yes. The KEW 2062 supports power factor measurement for electrical power analysis.

7. Does the Kyoritsu KEW 2062 support three phase systems?

Yes. It is suitable for both single phase and three phase electrical systems.

8. Can the KEW 2062 measure harmonics?

Yes. It can analyse harmonics up to the 30th order.

9. Can it measure phase rotation?

Yes. The Kyoritsu KEW 2062 can be used to check phase rotation and phase conditions in three phase electrical systems.

10. What is the clamp jaw size of the KEW 2062?

The KEW 2062 has a 55 mm tear drop shaped clamp jaw, allowing it to accommodate relatively large conductors.

11. Does the KEW 2062 measure frequency?

Yes. Frequency measurement is included among its electrical measurement functions.

12. Does it have MAX and MIN measurement functions?

Yes. The meter includes MAX, MIN, AVG and PEAK functions to help technicians analyse changing electrical conditions.

13. Does the Kyoritsu KEW 2062 have data hold?

Yes. The data hold function allows the displayed measurement value to be retained for convenient reading.

14. Where is the Kyoritsu KEW 2062 commonly used?

It is commonly used in factories, industrial plants, electrical panels, commercial buildings, power distribution systems and electrical maintenance applications.

15. Is the KEW 2062 suitable for energy audits?

Yes. Its ability to measure current, voltage, power, power factor, frequency and harmonics makes it useful for electrical energy audits and load analysis.

16. Is the KEW 2062 suitable for industrial maintenance?

Yes. It is designed for professional electrical testing, industrial maintenance, troubleshooting and power system monitoring.

17. What safety category does the Kyoritsu KEW 2062 support?

The KEW 2062 supports CAT IV 300 V, CAT III 600 V and CAT II 1000 V measurement categories.

18. What is the main advantage of using a Power Clamp Meter?

A Power Clamp Meter allows technicians to measure current and analyse electrical power without disconnecting the conductor, helping reduce testing time and simplify maintenance work.
