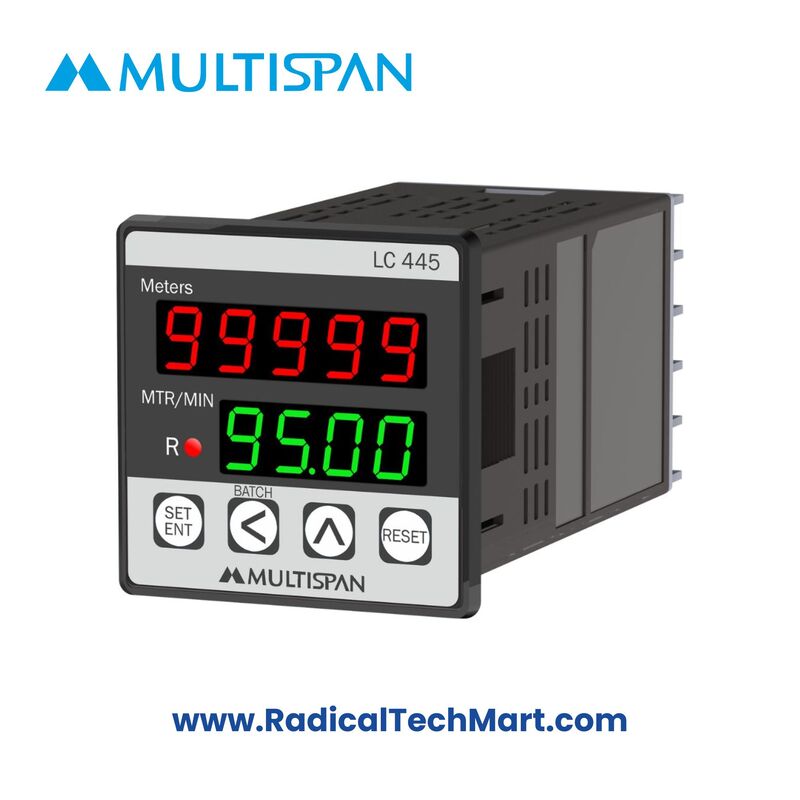

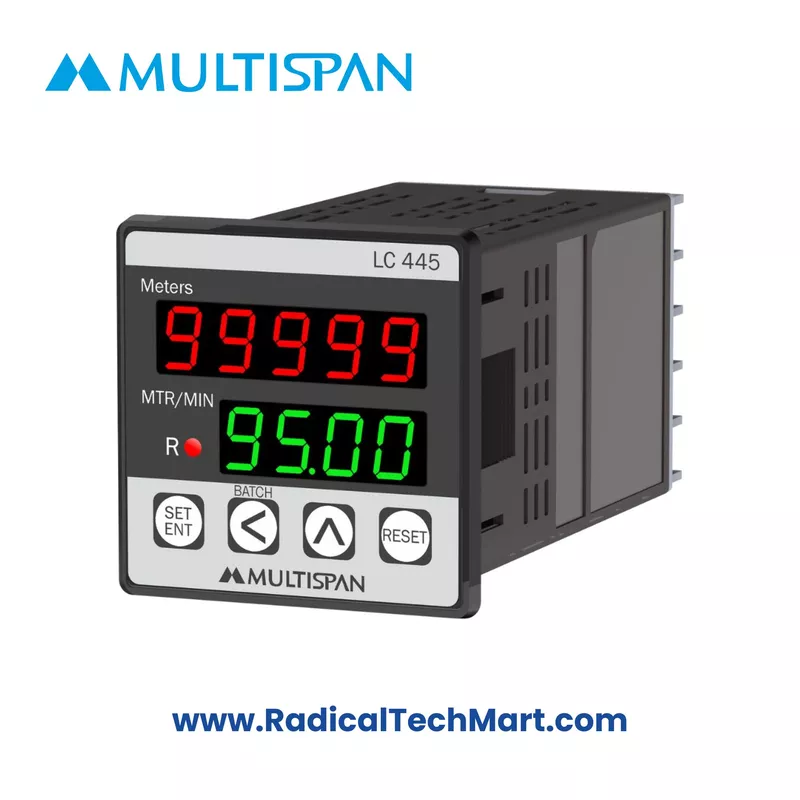

LC-1046D / LC-2046 / LC-445 / LC-3006 Multispan

Product Summary:
Multispan’s Length Counters (LC-1046D, LC-2046, LC-445, LC-3006) are intelligent panel-mount devices designed for precise length and speed measurement in meters and meters-per-minute (MPM). Suitable for proximity or encoder inputs, these counters are ideal for textile, printing, and extrusion industries.

Key Features:

• Input: NPN/PNP Proximity or Encoder (Dual/Single Channel)

• Display: 6-digit Total Length, 4-digit MPM (Upper Red, Lower Green)

• Reset: Auto/Manual, Panel or Terminal Reset

• Output: 1 or 2 Relay Outputs, C/O configuration

• Compact Sizes: 48x48mm, 72x72mm, 96x96mm

• Power Supply Options: 24V DC, 100–270V AC, 230V AC

• Optional RS-485 Modbus Communication (select variants)

• Memory Retention with Non-Volatile Memory

• Environmental: 0–55°C, up to 95% RH, IP65 (Front)

Applications:

• Textile Machinery Length Monitoring

• Pipe Extrusion Line Speed Measurement

• Labeling and Printing Machine Counters

• Reel Length Tracking in Packaging Lines

Product Benefits:

• High accuracy with up/down counting support

• Versatile input and output compatibility

• Flexible installation with multiple size formats

• Reliable operation with power failure memory

• Scalable models for different industrial needs

FAQs:

Q. What types of sensors are compatible with these length counters?
A. They support NPN/PNP proximity switches and encoder inputs (single or dual channel, depending on model).

Q. Can I use the LC-1046D with a 24V DC power supply?
A. Yes, the LC-1046D-D1-00 variant is designed for 24V DC auxiliary supply.

Q. Is there communication support for SCADA integration?
A. Yes, the LC-1048-M1-A2-00 model supports RS-485 Modbus communication for remote monitoring.
