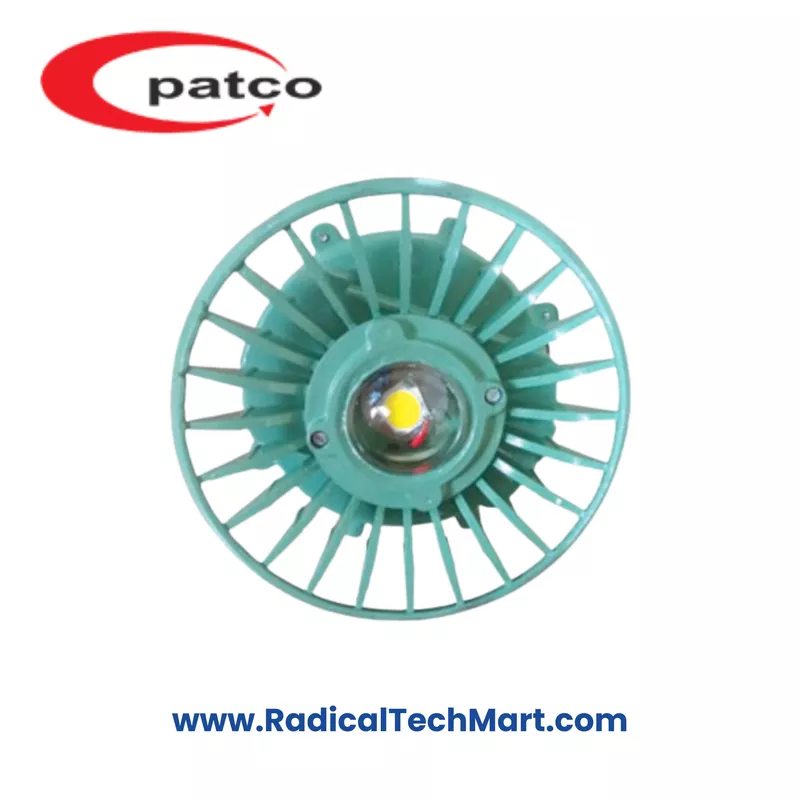

LED Flameproof Well Glass Sunflower Type – 45 & 60 Watt

Product Summary:
The Patco LED Flameproof Well Glass Sunflower Type – available in 45 Watt and 60 Watt variants – is a robust, energy-efficient lighting solution designed for use in Zone 1 & Zone 2 hazardous gas areas. With top-tier Lumileds COB LEDs, Philips/Fulham drivers, and CMRI certification, this fixture offers exceptional durability, efficiency, and safety.

Key Features:

• Available in 45W and 60W Lumileds COB (Single Lamp) variants

• Lumen Output: Up to 6200 Lumens (60W)

• Lumen Efficacy: Up to 155 lm/W

• Input Voltage: 230V AC, 50Hz

• Power Factor: > 0.90

• Temperature Class: T6

• IP66-rated for dust and water protection

• LED Life: Minimum 1,00,000 hours

• Surge Protection: L-N 2KV

• Lens optics with wide 120° beam angle

• Rapid start time of 0.2 seconds

• Body: Aluminum Casting with LM-06 Heat Sink

• Certified by CMRI, LM70, LM80, Photo Bio Test

Application:

• Oil and gas refineries

• Petrochemical industries

• Chemical manufacturing units

• Hazardous storage areas

• Power plants and thermal facilities

• Paint shops and explosive zones

Product Benefits:

• Safe for use in explosive gas zones (Zone 1 & 2)

• High efficiency with low power consumption

• Maintenance-free long operational life

• Rugged and corrosion-resistant aluminum housing

• Excellent color rendering for better visibility

• Withstands high temperature, moisture, and vibrations

FAQs:

Q1. What are the main differences between the 45W and 60W models?
The 60W variant provides higher lumen output (up to 6200 lm) for larger coverage areas, while the 45W is ideal for compact setups with standard brightness needs.

Q2. Are both models certified for flameproof applications?
Yes, both 45W and 60W models are CMRI-certified and designed for Zone 1 & 2 hazardous areas.

Q3. What industries commonly use these lights?
They are widely used in oil & gas, petrochemical, chemical plants, thermal power stations, and other flameproof zone applications.
