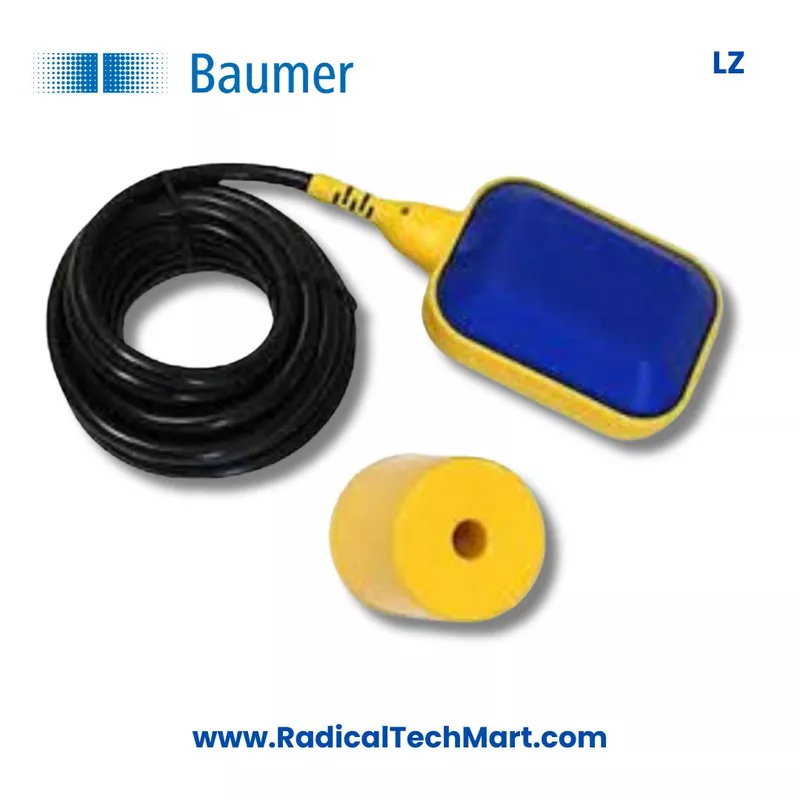

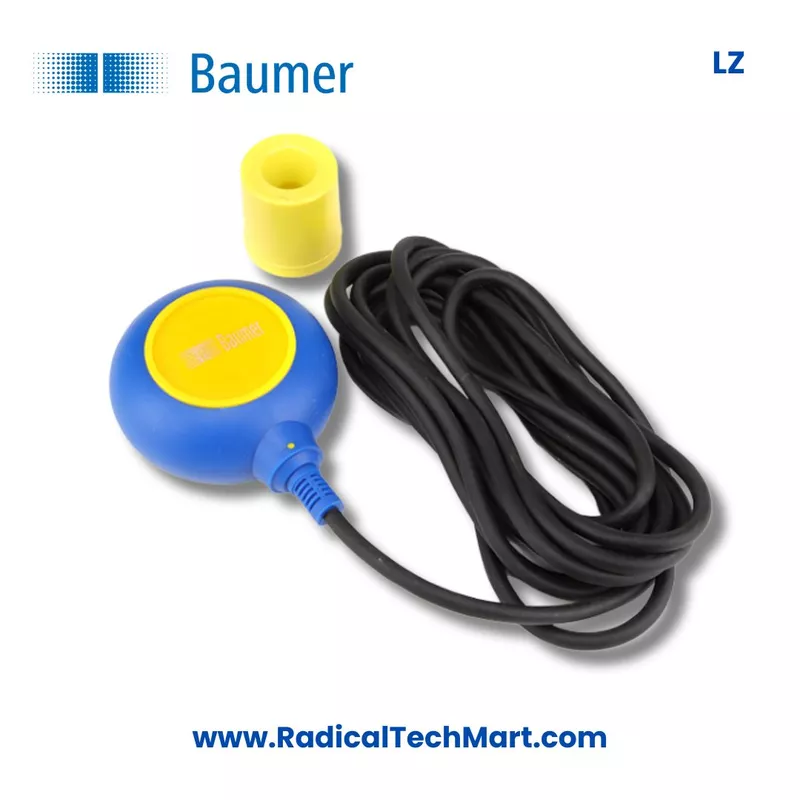

LZ Cable Float Level Switch
Baumer LZ Cable Float Level Switch is a reliable float-operated level switch designed for liquid level detection, storage tank level control and automatic pump control applications. It comes with a polypropylene float, PVC cable, adjustable counter weight, IP68 enclosure and SPDT micro switch operation for dependable use in water, sewage and industrial liquid tanks.
Download the Datasheet here!!
Customize
Share :
A. Product Overview
The Baumer LZ Cable Float Level Switch is a simple and durable liquid level switch used to detect high level, low level and switch differential levels in tanks and reservoirs. It is designed with a hermetically sealed and moulded body, making it suitable for regular industrial and utility applications where dependable liquid level control is required.
The float and counter weight are made from polypropylene, which helps protect the switch from corrosion in water and similar liquid applications. The standard version comes with a PVC cable, IP68 enclosure protection, vertical mounting and SPDT switch output. It is commonly used in storage tanks, reservoirs, sewage treatment plants, water treatment plants and automatic pump control systems.
Key features include:
- Hermetically sealed and moulded construction
- Adjustable counter weight
- Micro switch operated design
- Easy installation
- Non toxic material
- Polypropylene float and counter weight
- PVC cable
- IP68 enclosure
- SPDT switch type
- 16 A 250 VAC electrical rating
- Maximum operating pressure up to 4 bar
- Maximum operating temperature up to 60°C
- Available cable lengths such as 3 meter, 5 meter, 10 meter and 20 meter
B. Working Principle
The Baumer LZ Cable Float Level Switch works on a float tilt mechanism. The float is installed inside the tank with its cable and counter weight. As the liquid level rises or falls, the float moves with the liquid surface.
When the float tilts due to the change in liquid level, the internal micro switch changes its contact position. This allows the switch to operate from Normally Open to Normally Closed or from Normally Closed to Normally Open depending on the wiring and application requirement.
This switching action can be used to start or stop a pump, trigger a high level alarm, activate a low level alarm or control filling and emptying operations. The same switch can also be used as a multi point level switch in suitable tank control applications.
C. Why It Is Used
The Baumer LZ Cable Float Level Switch is used because it provides a simple, reliable and cost-effective method for liquid level detection. It does not require complex programming or advanced electronics, making it easy to install and maintain.
It is mainly used for:
- Detecting high liquid level in tanks
- Detecting low liquid level in tanks
- Automatic pump start and stop control
- Preventing pump dry run
- Preventing tank overflow
- Controlling filling and emptying operations
- Monitoring water levels in reservoirs
- Level switching in sewage and water treatment plants
The polypropylene construction helps reduce corrosion problems, while the IP68 enclosure makes it suitable for demanding tank environments. Its SPDT contact output allows flexible connection with pumps, alarms, control panels and automation systems.
D. Suitable Buyers
The Baumer LZ Cable Float Level Switch is suitable for buyers who need reliable liquid level switching for tanks, reservoirs and pump control applications.
Suitable buyers include:
- Water treatment plant operators
- Sewage treatment plant operators
- Pump panel manufacturers
- Control panel builders
- OEM machine manufacturers
- Industrial maintenance teams
- Facility management companies
- Tank manufacturers
- Process automation contractors
- Utility and infrastructure companies
- Industrial water system suppliers
- ETP and STP project contractors
- Building automation and plumbing contractors
- Purchase teams looking for Baumer level switches
- Dealers and distributors of industrial instrumentation products
FAQ
1. What is the Baumer LZ Cable Float Level Switch used for?
The Baumer LZ Cable Float Level Switch is used for liquid level detection in tanks, reservoirs, sewage treatment plants, water treatment plants and automatic pump control systems.
2. How does the Baumer LZ float level switch work?
It works by float movement. When the liquid level rises or falls, the float tilts and operates an internal micro switch. This changes the switch contact from Normally Open to Normally Closed or as per the wiring logic.
3. What is the float material of Baumer LZ?
The float and counter weight are made from polypropylene, which provides good resistance against corrosion in water and similar applications.
4. What cable material is used in the Baumer LZ level switch?
The Baumer LZ Cable Float Level Switch uses PVC cable.
5. What is the enclosure rating of Baumer LZ?
The Baumer LZ level switch comes with IP68 enclosure protection.
6. What is the switch type in Baumer LZ?
The Baumer LZ uses an SPDT micro switch for level switching applications.
7. What is the electrical rating of Baumer LZ Cable Float Level Switch?
The electrical rating is 16 A at 250 VAC.
8. What is the maximum operating pressure of Baumer LZ?
The maximum operating pressure is up to 4 bar.
9. What is the maximum operating temperature of Baumer LZ?
The maximum operating temperature is up to 60°C.
10. Can Baumer LZ be used for automatic pump control?
Yes, Baumer LZ is suitable for automatic pump control utilities. It can be used for pump protection, filling control and low level or high level switching.
11. Can Baumer LZ be used in sewage and water treatment plants?
Yes, it is suitable for sewage and water treatment plant applications where liquid level switching is required.
12. Is Baumer LZ easy to install?
Yes, the Baumer LZ Cable Float Level Switch is designed for easy installation with vertical mounting and adjustable counter weight.
13. Which cable lengths are available for Baumer LZ?
Common cable length options include 3 meter, 5 meter, 10 meter and 20 meter. For cable length above 20 meter, factory consultation may be required.
14. Can Baumer LZ be used as a multi point level switch?
Yes, it can be used as a multi point switch depending on the application and installation method.
15. Where can I use the Baumer LZ level switch?
It can be used in storage tanks, reservoirs, water tanks, sewage tanks, pump control systems, industrial tanks and water treatment systems.
