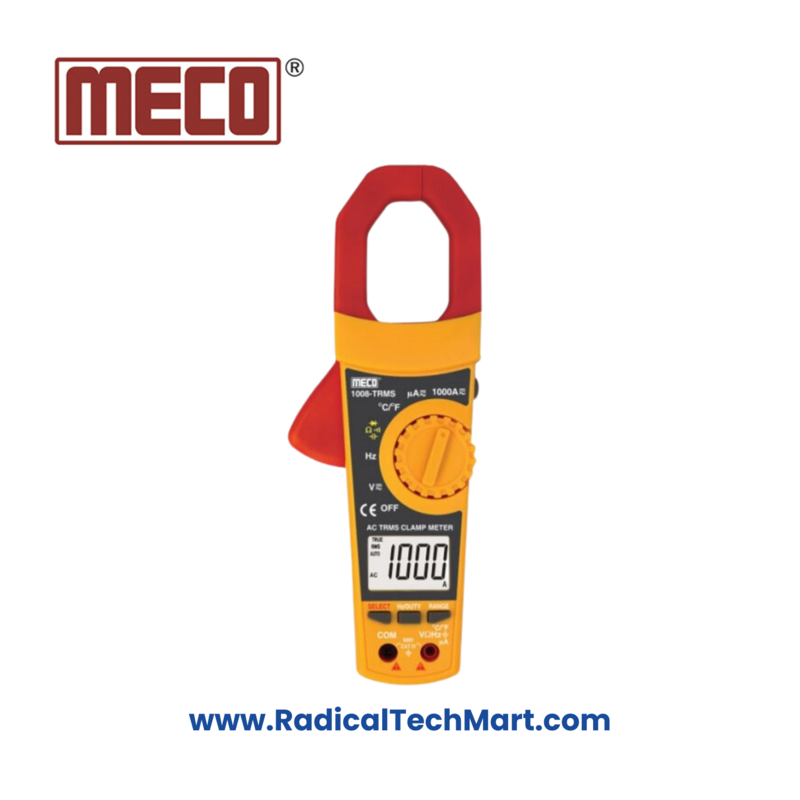

MECO 1008-TRMS Digital Clamp Meter
Product Summary:
The MECO 1008-TRMS is a professional-grade 3-5/6 digit digital clamp meter offering accurate AC TRMS readings up to 1000A, with additional functions like temperature, frequency, and capacitance measurements.
Key Features:
3 5/6 Digit, 6000 Count Display
TRMS (True RMS) Measurement
AC Current up to 1000A
DC Voltage up to 1000V, AC Voltage up to 750V
Resistance up to 60MΩ
Capacitance up to 9.999mF
Frequency up to 10MHz
Temperature Measurement (via K-type Thermocouple)
Diode Test & Audible Continuity
Auto/Manual Ranging, Data Hold, Backlight Display
Auto Power Off & Low Battery Indication
Jaw Opening: 30mm Cable Diameter
Includes test leads, batteries, thermocouple & case
Applications:
Electrical maintenance and troubleshooting
Industrial equipment testing
HVAC system diagnostics
Power distribution panel monitoring
Educational and lab measurements
Product Benefits:
Combines multimeter and clamp meter in one device
TRMS ensures precise measurements on non-linear loads
Wide voltage and current range coverage
Multi-functional for comprehensive diagnostics
Portable and robust with protective carrying case
FAQs:
Q. What is the jaw opening size of the MECO 1008-TRMS clamp meter?
A. The jaw opening is 30mm, suitable for measuring current in thick industrial cables.
Q. Does it measure both AC and DC voltage?
A. Yes, it measures DC voltage up to 1000V and AC voltage up to 750V.
Q. Is temperature measurement supported?
A. Yes, it comes with a K-type thermocouple for temperature measurements up to 260°C.
