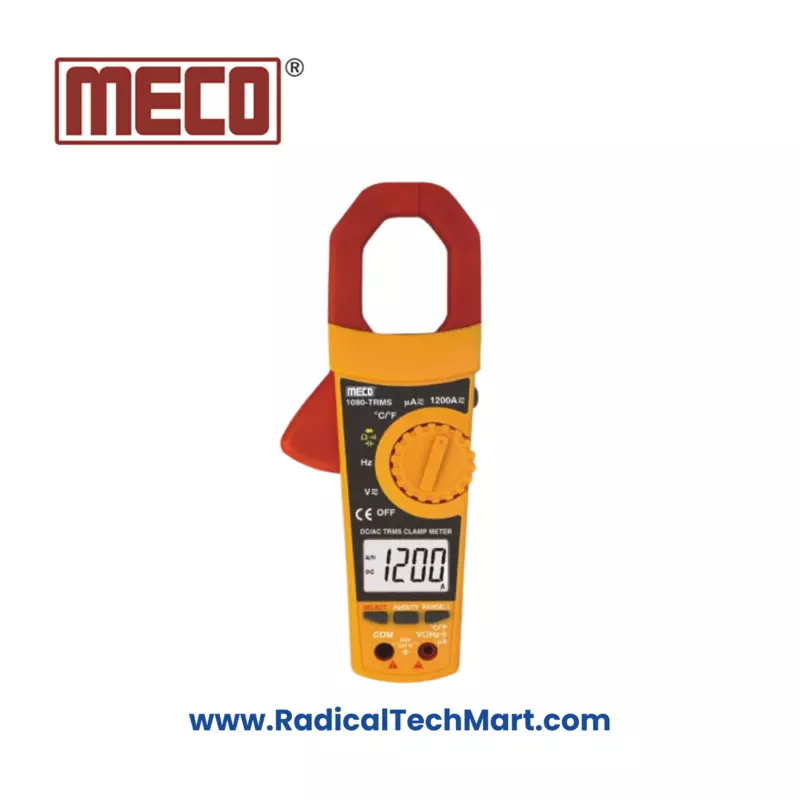

MECO 1080-TRMS Digital Clamp Meter
High-accuracy MECO 1080-TRMS 6000 Count Digital Clamp Meter for AC/DC current, voltage, resistance, temperature & frequency measurements.
Product Summary:
MECO 1080-TRMS is a versatile 3 5/6 digit, 6000-count TRMS clamp meter designed for accurate measurements of AC/DC current up to 1200A with multifunction capability including voltage, resistance, capacitance, temperature, and more.
Key Features:
3 5/6 Digits, 6000 Counts with TRMS
Measures AC/DC Voltage up to 1000V/750V
Measures AC/DC Current up to 1200A
Resistance up to 60MΩ & Capacitance up to 9.999mF
Frequency measurement up to 10MHz
Diode test, continuity buzzer, & duty cycle measurement
Temperature measurement with K-Type thermocouple
Auto/Manual ranging, Data Hold & Backlight Display
Auto Power Off & Low Battery Indicator
Jaw Opening: max 30mm (Cable Diameter)
Applications:
Electrical troubleshooting in commercial & industrial setups
HVAC maintenance & diagnostics
Automotive DC current testing
Field service for electrical utilities
Power equipment servicing
Product Benefits:
Wide range current & voltage measurement for versatile applications
TRMS accuracy ideal for fluctuating signals
Temperature & frequency functions for comprehensive diagnostics
Portable design with carrying case included
Reliable safety features for professional use
FAQs:
Q1. What is the maximum current this meter can measure?
A1. The MECO 1080-TRMS can measure both AC and DC current up to 1200A.
Q2. Does it support temperature measurement?
A2. Yes, it includes a K-Type thermocouple probe and measures temperature up to 260°C.
Q3. What is the jaw opening size?
A3. The clamp can accommodate cables up to 30mm in diameter.
