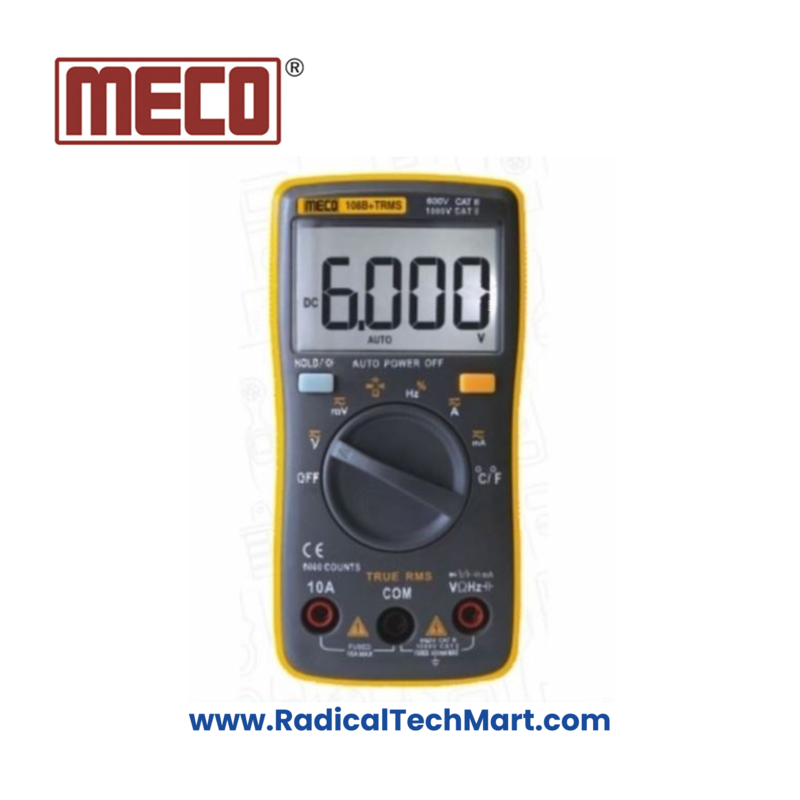

MECO 108B+ TRMS Digital Multimeter

Key Features:

• Display: 3 5/6 digit LCD with Backlight
• Counts: 6000 digits
• Auto-Ranging: Yes (Autoranging Digital Multimeter)
• Functions:
  • AC Voltage
  • DC Voltage
  • AC Current
  • DC Current
  • Resistance
  • Capacitance
  • Frequency
  • Temperature
  • Diode Test
  • Audible Continuity
  • Duty Cycle
  • Data Hold
  • Auto Power Off (APO)

Measurement Specifications:

• AC Voltage Range: 60mV to 1000V
  • Accuracy: ±(3% rdg + 3 dgt)
• DC Voltage Range: 60mV to 1000V
  • Accuracy: ±(1% rdg + 10 dgt)
• AC Current Range: 60mA to 10A
  • Accuracy: ±(1.5% rdg + 3 dgt)
• DC Current Range: 60mA to 10A
  • Accuracy: ±(1.5% rdg + 3 dgt)
• Resistance Range: 600Ω to 60MΩ
  • Accuracy: ±(1.5% rdg + 3 dgt)
• Capacitance Range: 9.999nF to 9.999mF
  • Accuracy: ±(5% rdg + 20 dgt)
• Frequency Range: 99.99Hz to 20MHz
  • Accuracy: ±(0.08% rdg + 2 dgt)
• Temperature Range: -20°C to 1000°C & -4°F to 1832°F
  • Accuracy: ±(1.5% rdg + 15 dgt)

Additional Features:

• True RMS Sensing for accurate AC voltage and current measurements
• Battery: 2 x AAA 1.5V (included)
• Included Accessories:
  • Test Lead (pair)
  • Battery
  • Instruction Manual
  • K-type Thermocouple (up to 260°C)
• Dimensions: 130 x 65 x 32 mm
• Weight: 130g

Warranty: 1 Year (As per Meco's Warranty Policy)
