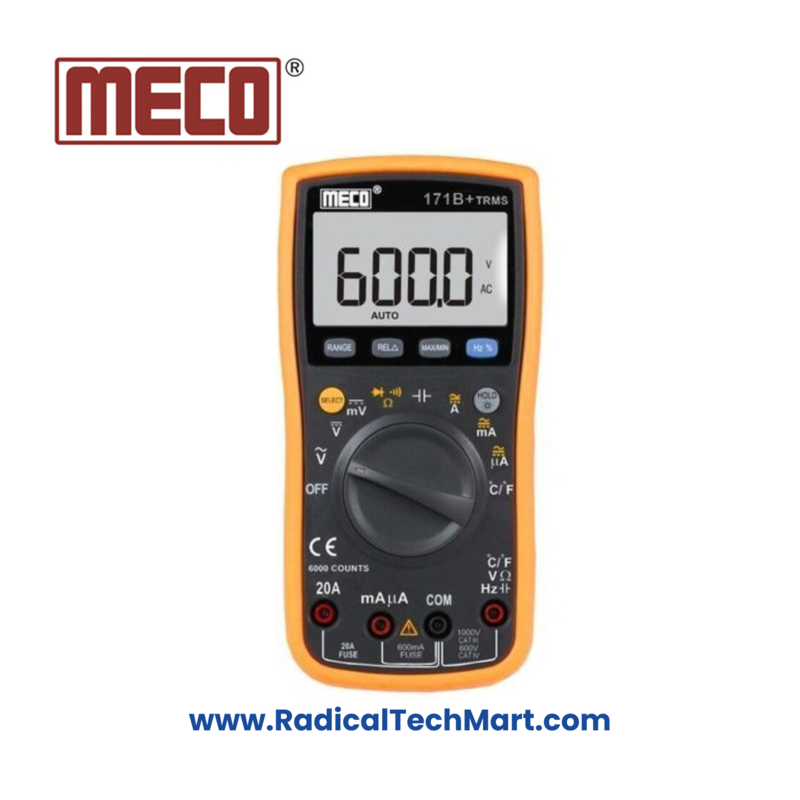

MECO 171B+ TRMS Digital Multimeter

MECO 171B+ TRMS Digital Multimeter

• Display: 3 Digit/6000 Count Backlight Display
• Measurement Type: True RMS (TRMS)
• Auto-Ranging: Yes
• Max/Min: Yes
• Additional Features:
  • Frequency Measurement
  • Duty Cycle Measurement
  • Temperature Measurement
  • Capacitance Measurement
• Standard Accessories:
  • Test Leads
  • Holster
  • Battery
  • Instruction Manual
  • K-Type Thermocouple (up to 260°C)

Technical Specifications:

• Display: 3 5/6 Digit, 6000 Counts
• AC Voltage Range: 600mV / 6V / 60V / 600V / 750V
  • AC Voltage Accuracy:
    • ±(1.0% rdg + 5 dgt)
    • ±(1.2% rdg + 5 dgt) on 600mV
    • ±(1.5% rdg + 5 dgt) on 750V
• DC Voltage Range: 600mV / 6V / 60V / 600V / 1000V
  • DC Voltage Accuracy:
    • ±(1.0% rdg + 4 dgt) on 600mV
    • ±(0.5% rdg + 2 dgt) on 6/60/600V
    • ±(7.0% rdg + 3 dgt) on 1000V
• AC Current Range: 600μA / 6000μA / 60mA / 600mA / 6A / 20A
  • AC Current Accuracy:
    • ±(1.5% rdg + 5 dgt) on 600μA/6000μA
    • ±(2.0% rdg + 5 dgt) on 60mA/600mA
    • ±(2.5% rdg + 5 dgt) on 6A/20A
• DC Current Range: 600μA / 6000μA / 60mA / 600mA / 6A / 20A
  • DC Current Accuracy:
    • ±(1.0% rdg + 2 dgt) on 600μA/6000μA
    • ±(1.2% rdg + 3 dgt) on 60mA/600mA
• Resistance Range: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ
  • Resistance Accuracy:
    • ±(1.2% rdg + 2 dgt) on 600Ω & 6MΩ
    • ±(1.0% rdg + 2 dgt) on 6kΩ/60kΩ/600kΩ
    • ±(1.5% rdg + 2 dgt) on 60MΩ
• Capacitance Range: 9.999nF / 99.99nF / 999.9nF / 9.999μF / 99.99μF / 999.9μF / 9.999mF
  • Capacitance Accuracy:
    • ±(2.0% rdg + 4 dgt)
    • ±(3.0% rdg + 4 dgt) on 9.999mF
• Frequency Range: 99.99Hz – 20.00MHz
  • Frequency Accuracy:
    • ±(0.05% rdg + 4 dgt)
    • ±(3.0% rdg + 4 dgt) on 9.999mF
• Temperature Range: -40°C to 1000°C
  • Temperature Accuracy:
    • ±(3.0% rdg + 4 dgt) on -40°C ~ 0°C (32°F ~ 32°F)
    • ±(1.0% rdg + 3 dgt) on 0°C and above
• Battery: Two 1.5V 'AA' Batteries
• Dimensions: 180 x 90 x 52 mm
• Weight: 370 g

Warranty: As per Meco's Warranty Policy
