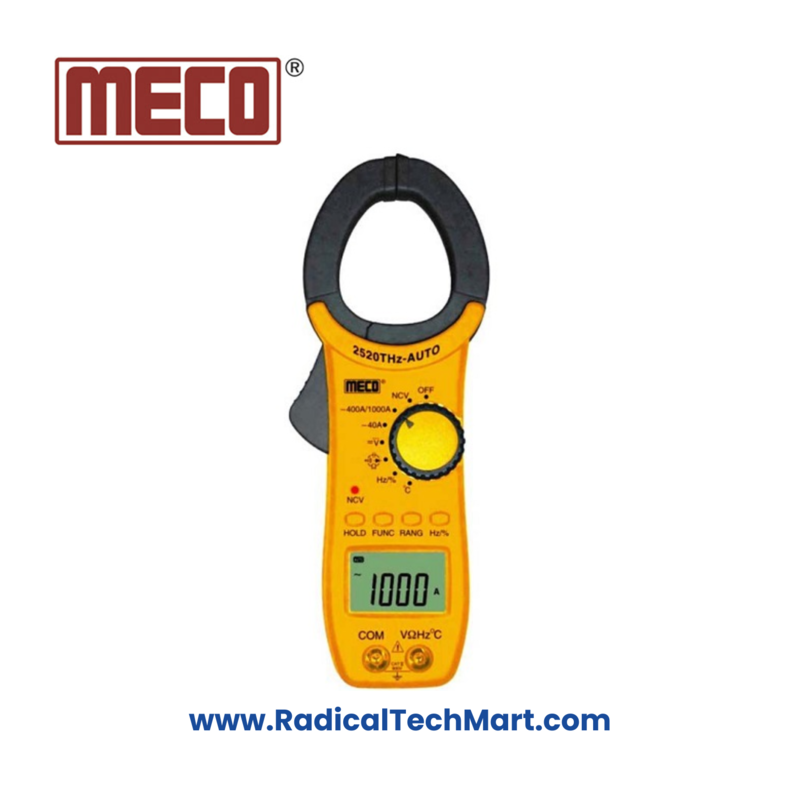

MECO 2520THz-Auto Digital AC Clamp Meter

Product Summary:
MECO 2520THz-AUTO BL is a 3 5/6 digit, 6000 count digital clampmeter with TRMS capability, designed for accurate AC current measurements up to 1000A and extended multifunctional use across industrial and electrical sectors.

Key Features:

• 3 5/6 Digits, 6000 Counts

• True RMS (TRMS) measurement

• Auto / Manual ranging modes

• AC Current up to 1000A

• Voltage: AC (750V), DC (1000V)

• Resistance up to 60MΩ, Capacitance up to 600µF

• Frequency range up to 10MHz, Duty cycle 0.1%–99%

• Temperature measurement (with K-type thermocouple)

• NCV detection with LED, buzzer, and EF strength indication

• Audible continuity, Diode Test, Data Hold

• Large Backlit Display with Torchlight for clamp visibility

• Auto Power Off and Low Battery Indication

• Jaw opening: Max 52mm cable diameter

Application:

• Electrical maintenance and troubleshooting

• Industrial automation and testing

• HVAC system diagnostics

• Educational and laboratory use

Product Benefits:

• Accurate TRMS readings for variable load conditions

• Multipurpose tool: voltage, current, resistance, temp & more

• Enhanced safety with NCV detection

• Convenient hands-free testing with backlight and torch

• Rugged build with protective carrying case and accessories

FAQ:

Q1. What is the maximum AC current this clampmeter can measure?
A1. The MECO 2520THz-AUTO BL can measure AC current up to 1000A accurately.

Q2. Does this clampmeter support temperature measurement?
A2. Yes, it supports temperature measurement using the included K-type thermocouple (up to 260°C).

Q3. Is this clampmeter suitable for industrial environments?
A3. Absolutely. With its TRMS, high voltage/current range, and multiple functions, it is ideal for industrial testing and diagnostics.
