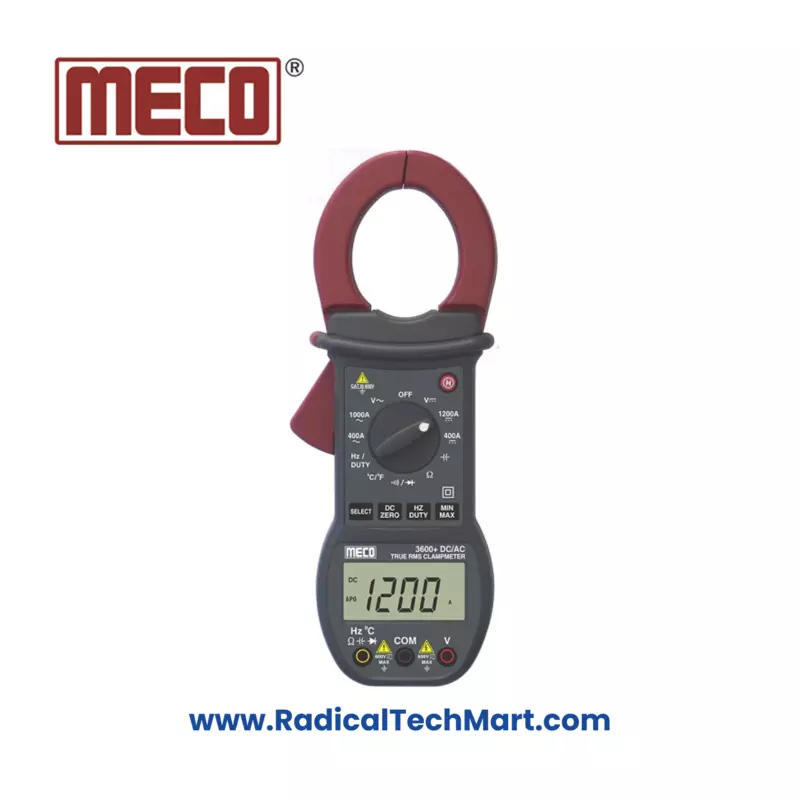

MECO 3600BL+ TRMS Digital Clamp Meter

Product Summary:
The MECO 3600BL+ is a high-precision 3¾-digit (4200 count) TRMS digital clamp meter capable of measuring up to 1200A DC and 1000A AC. It is ideal for industrial, electrical, and HVAC applications.

Key Features:

• 3¾ Digit Display with 4200 Count Resolution

• True RMS for Accurate AC Readings

• Auto Ranging with Backlight Display

• DC Voltage up to 1000V / AC Voltage up to 750V

• DC Current up to 1200A / AC Current up to 1000A

• Resistance Measurement up to 40MΩ

• Capacitance Range up to 40µF

• Frequency Measurement up to 9.999 MHz

• Temperature Measurement with K-Type Thermocouple

• MAX/MIN/ΔREL, Data Hold & Audible Continuity

• Auto Power Off & Low Battery Indication

• Large 55mm Jaw Opening for Thick Cables

Applications:

• Electrical System Diagnostics

• Industrial Equipment Maintenance

• HVAC System Servicing

• Power Plant Testing

• R&D and Quality Control Labs

Product Benefits:

• Accurate measurements in fluctuating AC signals using TRMS

• Wide range of electrical parameters for multipurpose testing

• Backlight and large display enhance visibility in dark areas

• Robust clamp design supports large cables up to 55mm

• Easy data logging with MAX/MIN/Δ and Hold functions

FAQs:

Q1. What type of currents can the MECO 3600BL+ measure?
A: It can measure both AC current up to 1000A and DC current up to 1200A with True RMS accuracy.

Q2. Can it measure temperature and if yes, up to what limit?
A: Yes, it supports temperature measurement up to 260°C using the included K-type thermocouple.

Q3. Is this clamp meter suitable for industrial or commercial use?
A: Absolutely. It is designed for heavy-duty industrial, electrical, and HVAC applications.
