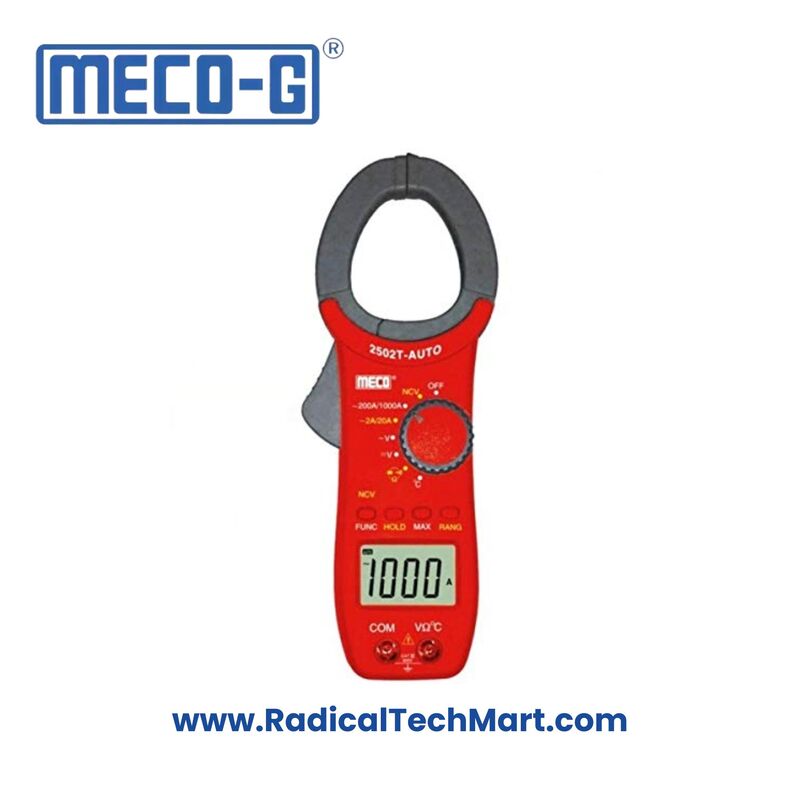

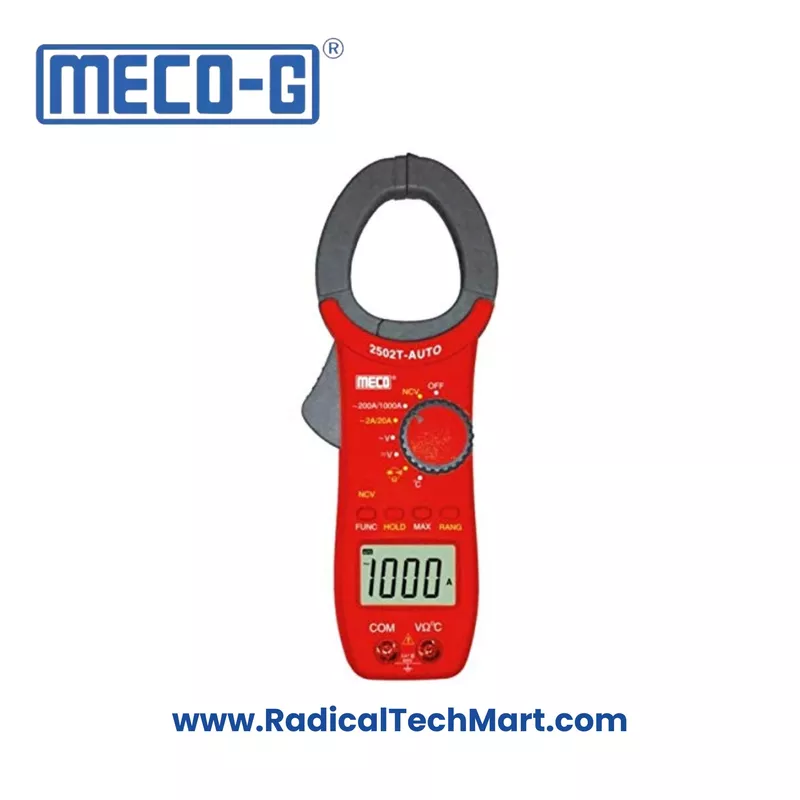

MECO-G 2502T-AUTO BL Clamp Meter
Customize
Share :
Product Summary:
The MECO-G 2502T-AUTOBL is a high-performance 3½ digit 2000-count TRMS clamp meter designed for professional AC measurements up to 1000A. It features backlit display, temperature reading, NCV, EF detection, torchlight, and more—ideal for industrial and field applications.
Key Features:
TRMS measurement up to 1000A AC
Auto/Manual range with 2000-count display
Voltage, resistance, diode & continuity test
Non-Contact Voltage (NCV) & EF detection with strength indicator
Temperature range: -20°C to 750°C with K-type thermocouple
Max Hold, Data Hold, Backlight & Torchlight functions
Jaw Opening: 52mm max cable diameter
Safety: CAT III 600V compliant
Applications:
Industrial AC current measurement
Electrical maintenance and troubleshooting
HVAC diagnostics and installations
Power distribution testing
Educational lab experiments
Product Benefits:
Accurate True RMS readings across a wide AC range
Enhanced visibility with backlight and built-in flashlight
Safe and reliable with CAT III protection
Multi-functional tool with added temperature & NCV sensing
Ergonomic and portable design with carry case
FAQs:
Q. What is the maximum AC current it can measure?
A. The MECO-G 2502T-AUTOBL can measure up to 1000A AC with TRMS accuracy.
Q. Does it support temperature measurement?
A. Yes, it supports temperature measurement from -20°C to 750°C using a K-type thermocouple.
Q. Is the meter suitable for non-contact voltage detection?
A. Yes, it has an NCV function with LED and buzzer indicators to detect live wires safely.
