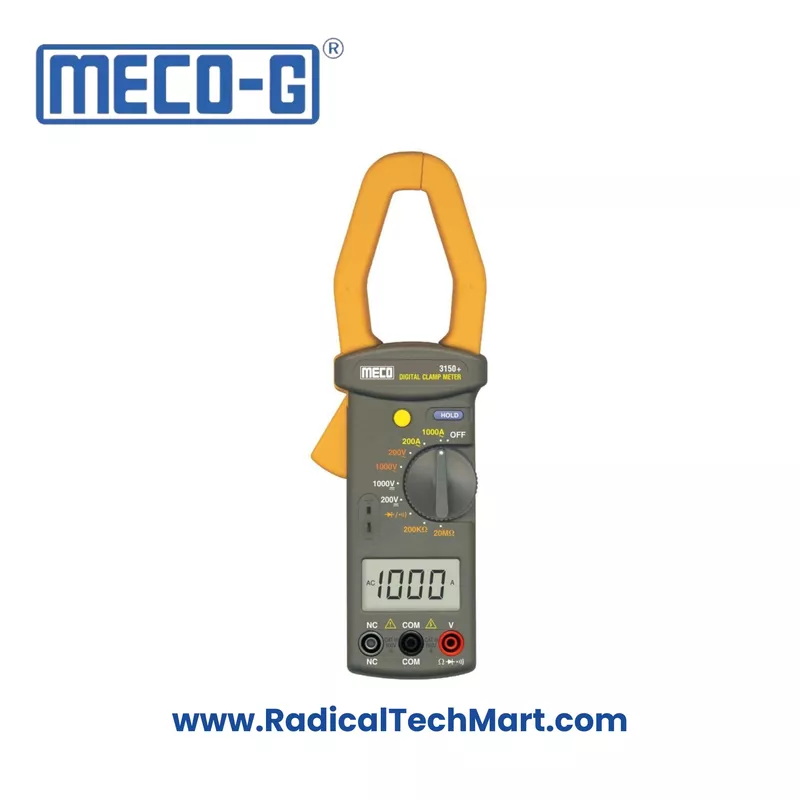

MECO-G 3150+ Digital Clamp Meter

Product Summary:
The MECO-G 3150+ is a versatile digital clamp meter ideal for industrial and field applications. It offers high-resolution measurements for AC current, voltage, frequency, capacitance, resistance, and diode testing with continuity checks. Designed for reliable and safe operation in harsh environments.

Key Features:

• Measures AC current up to 1000A with ±2% accuracy

• Auto-ranging for AC/DC voltage up to 1000V

• Resistance, frequency, duty cycle, diode, and capacitance measurement

• Max jaw opening: 43mm for cables; 65×16mm for busbars

• Overload protection up to 1200V DC / 800V AC

• Data Hold function for easy reading

• Compact and durable with backlit LCD display

• Comes with test leads, batteries, user manual, and carrying case

Applications:

• Electrical maintenance and troubleshooting

• Power distribution monitoring

• HVAC system diagnostics

• Industrial equipment servicing

• Automotive electrical inspections

Product Benefits:

• Accurate multi-parameter measurement in one device

• Safe operation with built-in overload protection

• Portable and battery-operated for field use

• Simple user interface with rotary selector and data hold

• Robust design suited for rough environments

FAQs:

Q1: What is the maximum current it can measure?
A1: The MECO-G 3150+ can measure AC current up to 1000A with ±2% accuracy.

Q2: Is it suitable for both AC and DC voltage measurements?
A2: Yes, it supports auto-ranging measurements for both AC and DC voltages up to 1000V.

Q3: Does the meter support continuity and diode testing?
A3: Yes, it features a continuity buzzer and a diode test mode with 0.4V open circuit voltage and 1mA test current.
