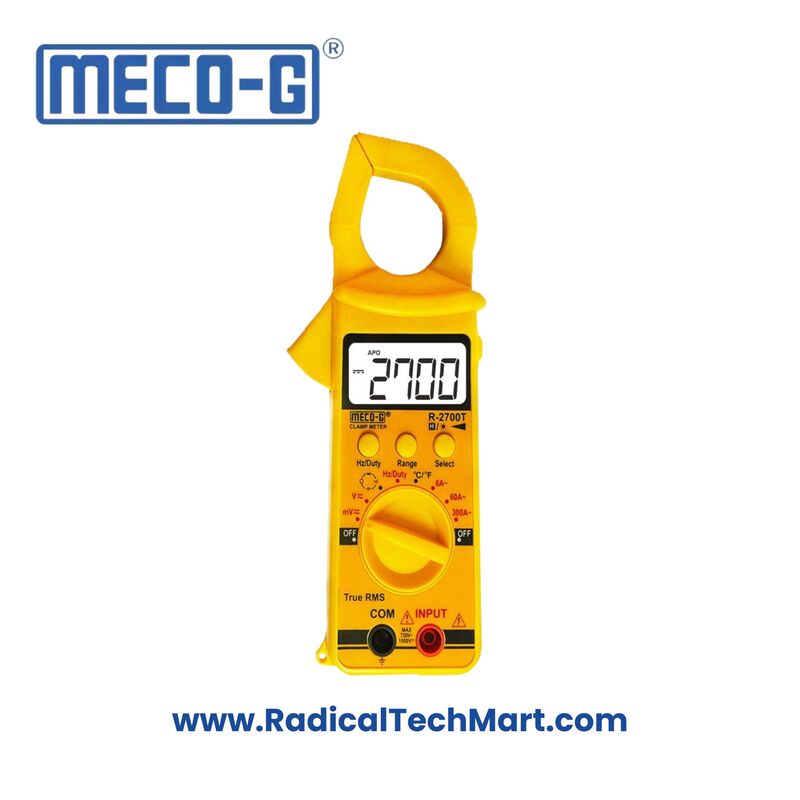

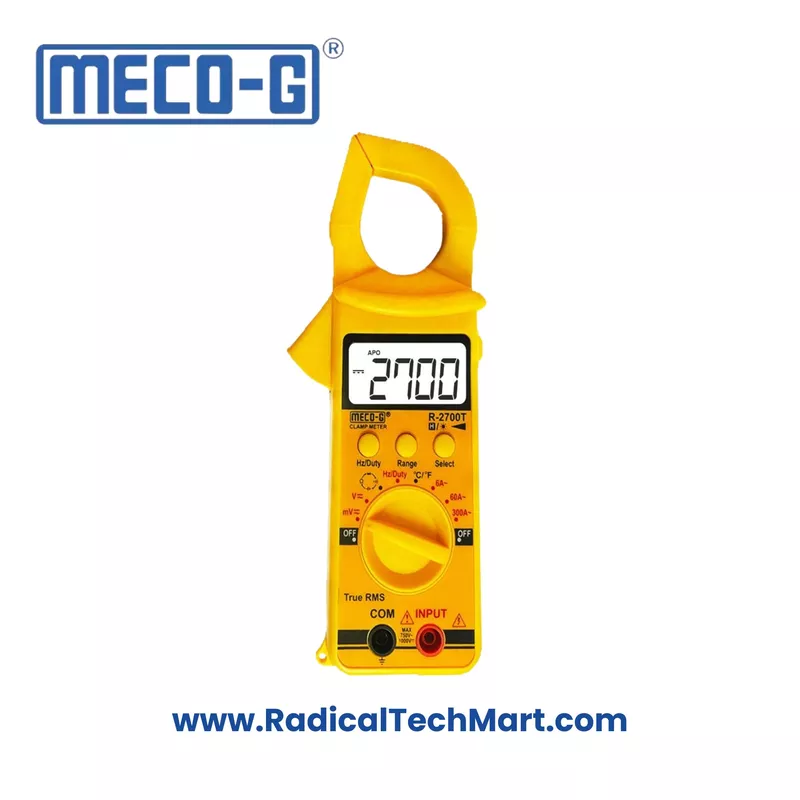

MECO-G R-2700T Digital Clamp Meter
Product Summary:
The MECO-G R-2700T is a professional-grade True RMS Digital Clamp Meter designed to measure AC/DC voltage, current, resistance, capacitance, frequency, temperature, and more. With a wide range and high accuracy, it is ideal for electricians, maintenance technicians, and industrial applications.
Key Features:
True RMS measurement for accurate AC signals
AC/DC Voltage up to 1000V & AC Current up to 300A
Measures Resistance up to 60MΩ and Capacitance up to 20mF
Temperature measurement range: -40°C to 1370°C
Frequency measurement up to 10MHz with ±(1.0%+5dgts) accuracy
Jaw opening of 40mm suitable for standard cables
Duty cycle measurement: 0.01%~99.9%
Large backlit LCD display and low battery indicator
Includes test leads, thermocouple, carrying case, and manual
Applications:
Electrical diagnostics and maintenance
HVAC systems and refrigeration troubleshooting
Industrial and manufacturing facility inspections
R&D and electronics testing labs
Power plant and energy audits
Product Benefits:
High accuracy with True RMS for real-world signal analysis
Wide measuring range for multipurpose testing
Integrated temperature and frequency measurement saves tool switching
User-friendly interface with clear display and portable design
Includes all essential accessories for immediate use
FAQs:
Q. Can the R-2700T measure both AC and DC voltage?
A. Yes, it can measure AC voltage up to 750V and DC voltage up to 1000V with high accuracy.
Q. Is the meter capable of measuring temperature?
A. Yes, it can measure temperatures ranging from -40°C to 1370°C using the included K-type thermocouple.
Q. What size conductors can fit in the clamp?
A. The clamp jaw opens up to 40mm, allowing standard industrial and residential conductors to be tested.
