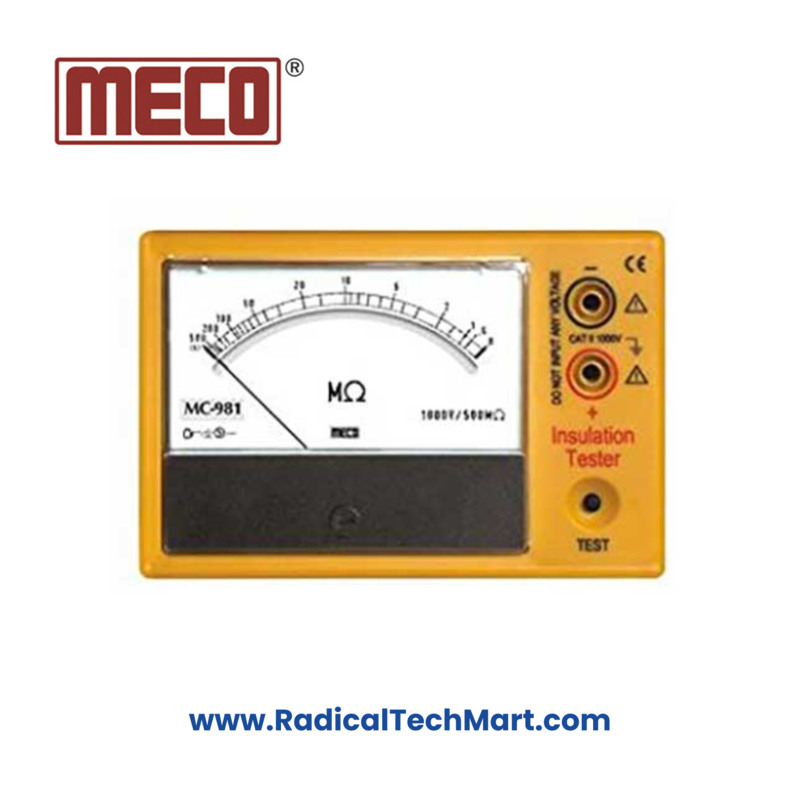

MECO MC 981 Analog Insulation Tester

Product Summary:
The MECO MC-900 Series Analog Insulation Tester is a highly accurate, durable, and easy-to-use device for testing insulation resistance across various voltage and MΩ ranges.

Key Features:

• Single-person push-button operation

• High accuracy ±5% of indicated value

• Scale length: approx. 80mm

• Measurement range: 10% to 100% of insulation resistance

• Terminal voltage >85% of rated voltage

• ABS resin yellow casing with polycarbonate front cover

• Meets IEC 61010 and IS 10656-1983 standards

• Dielectric strength: 3.5 KV at 50Hz for 1 min

• Battery adaptor (optional for MC-900BA)

• Powered by 6x 1.5V AA batteries (included)

Applications:

• Insulation resistance testing of motors, transformers, machines

• Testing electrical cables in communication networks

• Suitable for industrial, residential, and commercial installations

• Appliances like washing machines, mixers, toasters

• Cables in distribution networks

Product Benefits:

• Precise and reliable insulation resistance testing

• Portable and lightweight with carry case included

• Safety compliant with international standards

• Comes pre-fitted with batteries and test leads

• Flexible power options with optional battery adaptor

FAQs:
Q1. What is the operating temperature range for the MC-900 tester?
A1. The tester operates between 0°C to 50°C and can be stored from -10°C to 60°C.

Q2. Is the MECO MC-900 tester suitable for high-voltage installations?
A2. Yes, it meets IEC 61010 standards with installation category II up to 1000V phase-to-earth, making it suitable for such applications.

Q3. What accessories are included in the box?
A3. The product comes with a carrying case, test leads (red and black), 6 AA batteries (pre-installed), and a test/calibration certificate.
