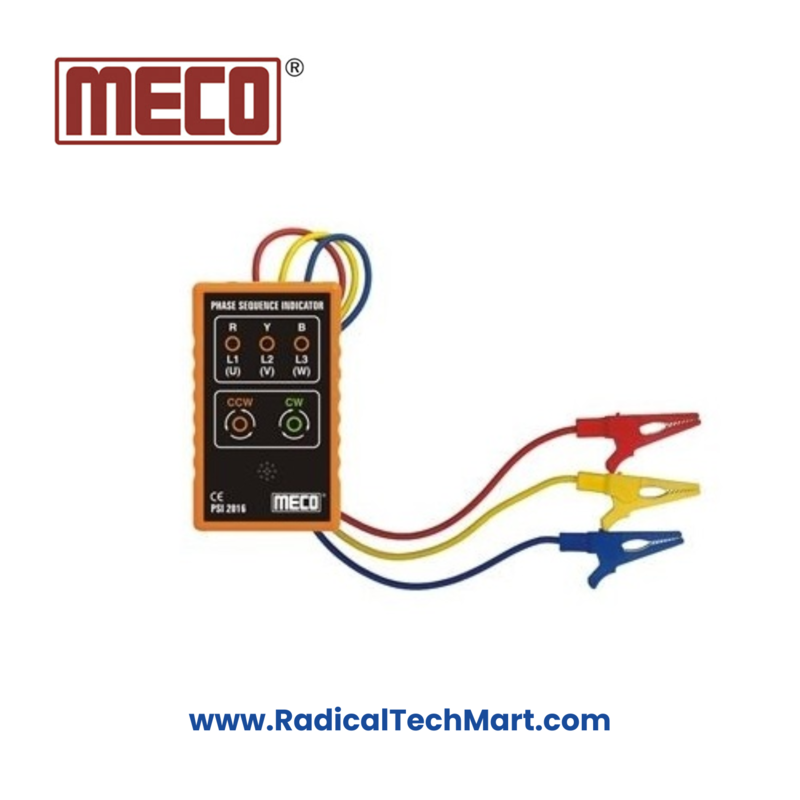

Meco Phase Sequence Indicator MECO PSI 2016 Phase Sequence Indicator

Product Summary:
The Meco Phase Sequence Indicator is a compact, durable tool designed to detect the correct phase sequence in three-phase power systems. Ideal for electricians and maintenance engineers.

Key Features:

• Voltage Range (PH-PH): 100 - 600V AC

• Frequency Range: 40 - 400Hz

• Continuous operation: Up to 60 min @ 200VAC

• Withstand Voltage: 4000V for one minute

• Operating Temperature: -10°C to 40°C

• Compact and lightweight (185g approx.)

• Durable ABS casing

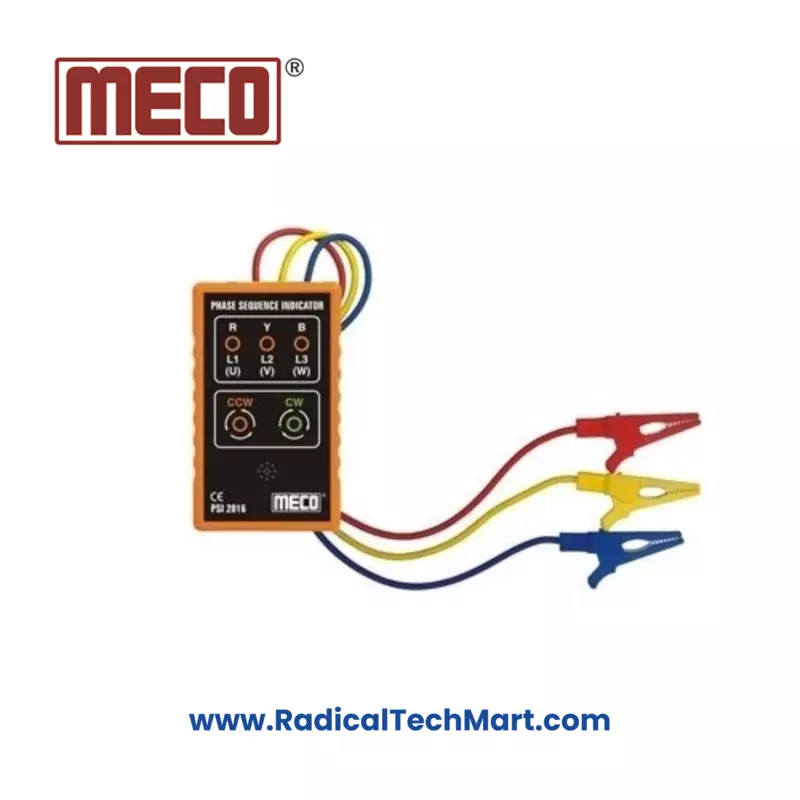

• Includes test leads with insulated crocodile clips & carrying case

• Conforms to EN 61010-1 safety standard

• CAT III 600V & CAT IV 300V compliant

Applications:

• Identify phase rotation in industrial 3-phase systems

• Troubleshooting motor and generator installations

• Electrical panel maintenance

• Power system diagnostics

• Ideal for site engineers, contractors, and electricians

Product Benefits:

• Ensures accurate and safe phase detection

• Increases troubleshooting efficiency

• Portable and easy to carry on-site

• Designed for industrial-grade reliability

• Built to withstand high voltage and rugged environments

FAQs:

• Q: Can I use the Meco Phase Sequence Indicator on a 440V 3-phase system?
  A: Yes, it supports 100-600V AC, making it suitable for 440V systems.

• Q: Does it come with the necessary test accessories?
  A: Yes, the product includes test leads with insulated crocodile clips and a carrying case.

• Q: What is the maximum safe operating time?
  A: Up to 60 minutes at 200VAC and 4 minutes max at 500VAC.
