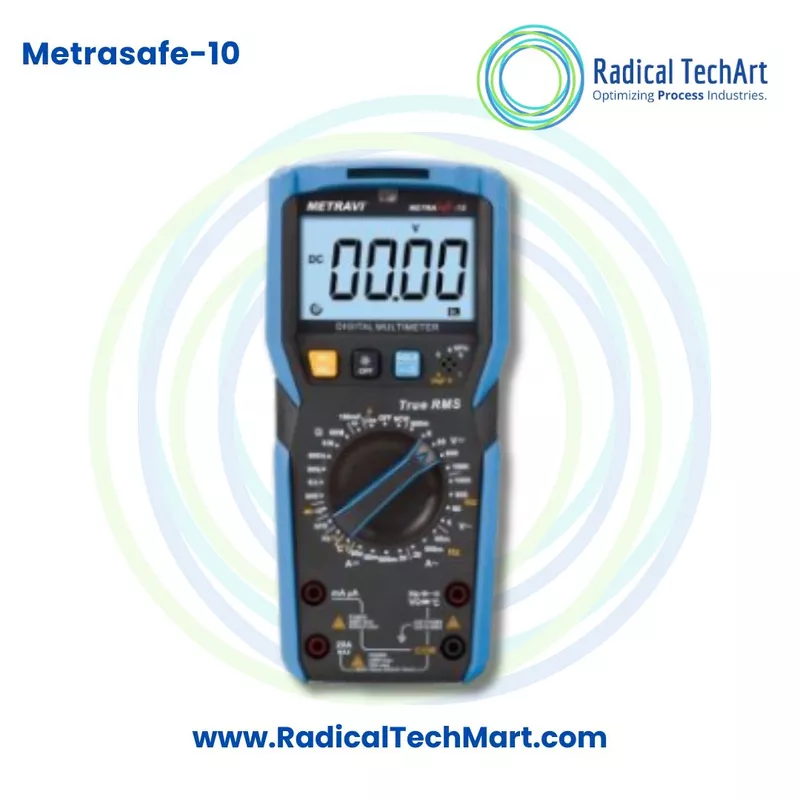

Metravi Metrasafe-10 TRMS Digital Multimeter

A. Product Overview

The Metravi Metrasafe-10 TRMS Digital Multimeter is a professional digital multimeter used for measuring AC voltage, DC voltage, AC current, DC current, resistance, capacitance, frequency, duty ratio and temperature. It is built with a 6000-count display for better measurement resolution and True RMS technology for more dependable readings in real electrical environments.

This multimeter is suitable for electricians, maintenance engineers, technicians, panel builders, service teams and electronics users who need a reliable testing instrument for daily electrical diagnosis. The meter comes with NCV detection, live wire identification, audio and visual alarm, auto-ranging function, LCD auto backlight and flashlight for better usability in low-light areas.

Its durable double-injection body and safety rating make it suitable for industrial, commercial and electrical maintenance applications.

B. Working Principle

The Metravi Metrasafe-10 works by sensing electrical parameters through test leads or non-contact voltage detection. When the test leads are connected to a circuit, the meter converts the electrical signal into a digital reading and displays it on the LCD screen.

For voltage and current measurement, the multimeter detects the signal level and shows the measured value in the selected or automatic range. Since it is a True RMS multimeter, it can provide better AC measurement accuracy even when the waveform is not a perfect sine wave.

For NCV testing, the meter senses the electric field around a live conductor without direct contact. It uses LED indication and buzzer alerts to help identify live wires and voltage presence. For live wire testing by contact, a single probe can help distinguish live and neutral wires.

For continuity, diode, transistor and capacitance testing, the meter applies a small internal test signal and checks the circuit response. The audio and visual alarm helps users identify results quickly during troubleshooting.

C. Why It Is Used

The Metravi Metrasafe-10 is used to test, diagnose and maintain electrical and electronic systems. It helps users check whether voltage is present, whether a wire is live, whether a circuit has continuity, whether a component is faulty and whether electrical values are within safe operating limits.

It is useful because it combines multiple testing functions in one handheld instrument. Users can measure voltage up to 1000V, current up to 20A, capacitance up to 100mF, frequency up to 10MHz and temperature from minus 40°C to 1000°C.

The NCV function, live wire detection, auto backlight and flashlight make it especially useful for field technicians working in control panels, wiring systems, industrial equipment, maintenance rooms and low-light environments.

D. Suitable Buyers

The Metravi Metrasafe-10 TRMS Digital Multimeter is suitable for:

Electrical contractors and electricians who need a daily-use multimeter for wiring, panels and fault checking.

Industrial maintenance teams who need to test voltage, current, resistance, continuity, frequency and temperature in machinery and electrical systems.

Panel builders and automation technicians who work with control panels, relays, power supplies, sensors, drives and electrical wiring.

HVAC and facility maintenance teams who need to check power supply, electrical connections, continuity and temperature.

Electronics repair technicians who require diode testing, transistor testing, capacitance measurement and resistance measurement.

Engineering students, hobbyists and lab users who need a reliable digital multimeter for learning, testing and project work.

FAQ

1. What is the Metravi Metrasafe-10 TRMS Digital Multimeter used for?
The Metravi Metrasafe-10 is used for measuring AC voltage, DC voltage, AC current, DC current, resistance, capacitance, frequency, duty ratio and temperature. It is also used for continuity testing, diode testing, transistor testing, NCV detection and live wire identification.

2. Does the Metravi Metrasafe-10 support True RMS measurement?
Yes, the Metravi Metrasafe-10 is a True RMS digital multimeter. This helps provide more accurate AC readings, especially when testing non-sine wave electrical signals.

3. What is the display count of the Metravi Metrasafe-10?
The Metravi Metrasafe-10 has a 6000-count display, which provides better resolution and more detailed readings compared to basic low-count multimeters.

4. Can the Metravi Metrasafe-10 detect live wires without contact?
Yes, it has an NCV function that can detect live voltage without direct contact. It can also help distinguish live and neutral wires through indication and buzzer alerts.

5. What is the maximum voltage measurement range of this multimeter?
The Metravi Metrasafe-10 can measure voltage up to 1000V. It is designed according to CAT III 600V and CAT II 1000V safety requirements.

6. Does this multimeter measure temperature?
Yes, the Metravi Metrasafe-10 can measure temperature from minus 40°C to 1000°C using the supplied K-type thermocouple.

7. Does the Metravi Metrasafe-10 have auto-ranging?
Yes, it supports auto-ranging and manual range selection. This makes measurement easier for users who want fast readings without manually selecting the range every time.

8. Is this multimeter suitable for electricians?
Yes, it is suitable for electricians because it includes voltage measurement, current measurement, continuity testing, NCV detection, live wire identification, flashlight, auto backlight and safety-rated operation.

9. What accessories are supplied with the Metravi Metrasafe-10?
The standard accessories include user manual, test leads, K-type thermocouple, AAA batteries, warranty card and indicator function description colour card.

10. Why should I buy the Metravi Metrasafe-10 instead of a basic multimeter?
The Metravi Metrasafe-10 offers True RMS measurement, 6000-count display, NCV detection, live wire testing, capacitance, frequency, temperature, duty ratio, transistor test, diode test, continuity test, auto backlight and flashlight, making it more useful for professional electrical troubleshooting.
