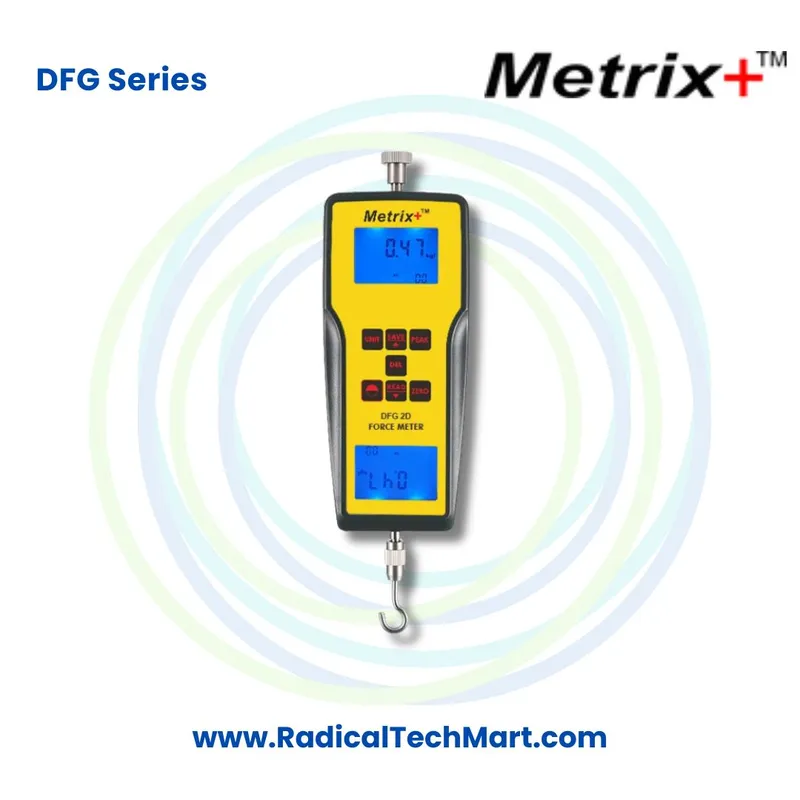

Metrix+ DFG Series Digital Force Gauge Push Pull Tension Compression Tester

A. Product Overview

The Metrix Plus DFG Series Digital Force Gauge Push Pull Tension Compression Tester is designed for measuring both tensile pulling force and compression pushing force across industrial, laboratory and quality control applications.

The series uses an internal strain gauge load cell to convert applied mechanical force into an electronic measurement. This provides digital force readings and allows users to monitor changing loads as well as capture the maximum force reached during a test.

The DFG Series is available in four force capacities:

DFG 2D: 2 kgf, 19.6 N, 4.4 lbf
DFG 20D: 20 kgf, 196 N, 44 lbf
DFG 50D: 50 kgf, 490 N, 110 lbf
DFG 100D: 100 kgf, 980 N, 220 lbf

Users can select between three commonly used force measurement units:

• Newton
• Kilogram force
• Pound force

The reversible backlit LCD automatically provides convenient viewing when the force gauge is used handheld or mounted vertically on a test stand.

The instrument also includes interchangeable attachments such as pulling hooks, flat compression tips, cone tips and V shaped accessories for different force testing applications.

Key Features

• Measures both push and pull force
• Tension and compression measurement
• Four capacity options up to 100 kgf
• Measurement in N, kgf and lbf
• Track mode for real time force measurement
• Peak mode for maximum force capture
• High precision internal strain gauge load cell
• Basic accuracy of plus or minus 0.2 percent full scale plus 1 digit
• Reversible backlit LCD display
• Internal data memory
• Overload protection up to 150 percent full scale
• Acoustic overload warning at 110 percent full scale
• Automatic power off
• Low battery indication
• Battery and 5 V DC power operation
• Multiple force testing attachments
• Portable carrying case included

B. Working Principle

The Metrix Plus DFG Digital Force Gauge works using a strain gauge load cell.

When a pushing or pulling force is applied to the measuring shaft, the internal load cell experiences a very small mechanical deformation.

The strain gauge detects this deformation and converts it into an electrical signal. The instrument processes the signal and calculates the corresponding force value.

The measured result is then displayed in the selected unit:

• Newton
• Kilogram force
• Pound force

The gauge can operate in two main measurement modes.

Track Mode

Track Mode continuously displays the force being applied in real time.

For example, if the user gradually compresses a spring, the displayed reading changes continuously as the compression force increases or decreases.

Peak Mode

Peak Mode captures and retains the highest force recorded during the test.

This is particularly useful for applications such as:

• Wire pull out testing
• Breaking force measurement
• Connector extraction testing
• Spring force testing
• Packaging seal testing
• Latch release force testing

The interchangeable attachments allow the same instrument to perform different tension and compression measurements.

C. Why Is the Metrix Plus DFG Series Used?

Force is an important quality parameter in many manufacturing and engineering applications.

A component may look correct visually but still fail if its insertion force, pulling force, compression force or breaking force does not meet the required specification.

The Metrix Plus DFG Series allows users to measure these mechanical forces numerically.

It can be used to:

• Measure push force
• Measure pull force
• Perform tension testing
• Perform compression testing
• Check maximum breaking force
• Test springs
• Measure connector insertion force
• Measure connector extraction force
• Test electrical switch actuation force
• Perform wire terminal pull tests
• Check crimp connection strength
• Test door and latch mechanisms
• Measure packaging seal peel force
• Test zipper operating force
• Evaluate component strength
• Perform incoming material inspection
• Conduct production quality control
• Compare product samples
• Verify assembly consistency

Using a digital force gauge helps manufacturers establish measurable acceptance limits rather than relying only on manual feel or visual inspection.

D. Suitable Buyers

The Metrix Plus DFG Series is suitable for industries, laboratories and technical departments that need quantitative push and pull force measurement.

Quality Control Departments

Quality engineers can use the gauge to verify whether components meet specified tension, compression, insertion or extraction force requirements.

Wire Harness Manufacturers

Wire harness and cable manufacturers can perform pull off tests on terminals, lugs, crimps and wire connections to evaluate mechanical integrity.

Electronics Manufacturers

Useful for checking connector insertion force, connector extraction force, switches and small mechanical components.

Automotive Component Manufacturers

Automotive suppliers can use the DFG Series for testing latches, switches, triggers, springs and other mechanical assemblies.

Spring Manufacturers

Spring manufacturers can measure compression and tension force at specific positions to verify product consistency.

Packaging Manufacturers

The gauge can be used for evaluating packaging seal strength, peel force and other mechanical packaging characteristics.

Textile and Zipper Manufacturers

Suitable for measuring zipper operating force and selected textile related breaking or pulling force applications.

Product Testing Laboratories

Testing laboratories can use different DFG capacities for general push and pull force measurement.

Research and Development Departments

Engineering teams can compare prototypes and evaluate mechanical force characteristics during product development.

Machine Builders and OEMs

Machine manufacturers can use the gauge during component inspection, assembly verification and product testing.

Educational Institutes

Engineering colleges and technical laboratories can use digital force gauges for experiments involving tension, compression, load cells and mechanical force measurement.

Model and Capacity Selection

Metrix Plus DFG 2D

Maximum Capacity: 2 kgf, 19.6 N, 4.4 lbf
Resolution: 0.001 kgf and 0.01 N
Thread Size: M6

Suitable for lower force applications requiring finer resolution.

Metrix Plus DFG 20D

Maximum Capacity: 20 kgf, 196 N, 44 lbf
Resolution: 0.01 kgf and 0.1 N
Thread Size: M6

Suitable for general component, spring and pull force testing.

Metrix Plus DFG 50D

Maximum Capacity: 50 kgf, 490 N, 110 lbf
Resolution: 0.01 kgf and 0.1 N
Thread Size: M6

Suitable for medium range industrial tension and compression testing.

Metrix Plus DFG 100D

Maximum Capacity: 100 kgf, 980 N, 220 lbf
Resolution: 0.01 kgf and 0.1 N
Thread Size: M6

Suitable for higher capacity industrial push and pull force measurements.

Technical Specifications

Brand: Metrix Plus
Series: DFG Series
Product Type: Digital Force Gauge
Measurement: Tension and Compression
Available Models: DFG 2D, DFG 20D, DFG 50D and DFG 100D
Maximum Capacity: Up to 100 kgf or 980 N
Measurement Units: N, kgf and lbf
Basic Accuracy: Plus or minus 0.2 percent full scale plus 1 digit
Measurement Modes: Track Mode and Peak Mode
Display: Reversible backlit LCD
Safe Overload Capacity: 150 percent full scale
Overload Alarm: Acoustic warning at 110 percent full scale
Data Storage: Integrated internal memory
Power Supply: Two 1.5 V AA batteries or 5 V DC supply
Operating Temperature: 0 to 40 degrees Celsius
Operating Humidity: Less than 80 percent RH
Dimensions: Approximately 211 x 80 x 36 mm
Weight: Approximately 390 g

Frequently Asked Questions

1. What is the Metrix Plus DFG Series Digital Force Gauge?

The Metrix Plus DFG Series is a handheld digital force measuring instrument designed to measure both pulling force and pushing force in tension and compression applications.

2. What force ranges are available in the DFG Series?

The series is available in four capacities:

DFG 2D up to 2 kgf
DFG 20D up to 20 kgf
DFG 50D up to 50 kgf
DFG 100D up to 100 kgf

3. Can the DFG Series measure both tension and compression?

Yes. The same instrument can perform both tension pull measurements and compression push measurements by using the appropriate attachment.

4. What units can the force gauge display?

The DFG Series can display measurements in Newton, kilogram force and pound force.

5. What is Track Mode?

Track Mode continuously displays the force currently being applied to the gauge.

6. What is Peak Mode?

Peak Mode captures the maximum force reached during a test. It is useful for breaking force, pull off force, insertion force and extraction force testing.

7. What is the accuracy of the Metrix Plus DFG Series?

The specified basic measurement accuracy is plus or minus 0.2 percent of full scale plus 1 digit.

8. Can the Metrix Plus DFG be used for wire pull testing?

Yes. The product is suitable for pull off testing of wire terminals, lugs and crimped connections.

9. Can it test springs?

Yes. The DFG Series can be used for compression and tension spring force testing within the selected model's measurement capacity.

10. Can it measure connector insertion and extraction force?

Yes. Connector insertion and extraction force testing is one of the intended applications of the DFG Series.

11. Can the DFG Series measure breaking force?

Peak Mode can capture the highest force reached during a test, making it useful for suitable breaking force and pull off force measurements within the instrument capacity.

12. Does the force gauge have overload protection?

Yes. The instrument has a safe overload capacity of up to 150 percent of full scale. An acoustic warning is triggered at approximately 110 percent of full scale.

13. Does the Metrix Plus DFG have a backlit display?

Yes. It has a reversible backlit LCD designed to remain convenient to read during handheld or vertically mounted operation.

14. Can the force gauge be mounted on a test stand?

The reversible display is specifically designed to improve readability when the instrument is handheld or mounted vertically on a testing setup.

15. What is the maximum force of the DFG 100D?

The DFG 100D has a maximum capacity of 100 kgf, 980 N or 220 lbf.
