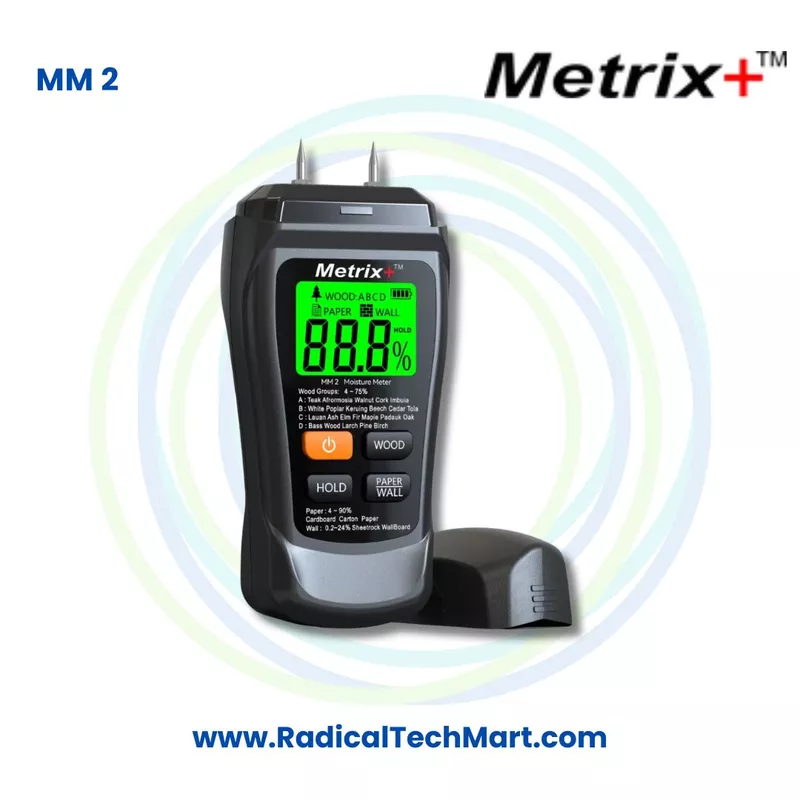

A. Product Overview

The Metrix Plus MM 2 Digital Moisture Meter is designed for quick and convenient measurement of moisture content in different materials. Instead of using one general measurement setting, the meter provides dedicated modes for wood, paper and wall, allowing the user to select the appropriate material before taking a reading.

The instrument uses an integrated 10 mm electrode sensor and displays the moisture reading on a large 1.7 inch LCD. The 3 color backlight and buzzer make it easier for the operator to interpret moisture conditions during inspection.

Measurement Ranges

Wood: 4 to 75 percent
Paper: 4 to 90 percent
Wall: 1.5 to 30 percent
Resolution: 0.1
Display: 3 color backlit 1.7 inch LCD
Sensor: Integrated 10 mm electrode
Power Supply: 2 x 1.5 V AAA batteries
Automatic Power Off: Approximately 5 minutes
Operating Temperature: 0 to 40 degrees Celsius
Operating Humidity: 5 to 95 percent RH

Additional functions include reading lock, battery level warning, buzzer indication and automatic or manual power off.

B. Working Principle

The Metrix Plus MM 2 measures the moisture condition of a material through its integrated electrode sensor.

The basic measurement procedure is:

1. Select the appropriate mode for wood, paper or wall.

2. Place the electrode sensor in contact with the material being tested.

3. The instrument senses the electrical characteristics associated with moisture inside the material.

4. The internal electronics process the measurement according to the selected material mode.

5. The moisture value is displayed as a percentage on the LCD.

6. The color backlight and buzzer help the operator identify the measured moisture condition quickly.

Moisture affects the electrical properties of materials. By evaluating these changes, a digital moisture meter can estimate the amount of moisture present and provide an immediate reading for inspection or quality control purposes.

C. Why Is the Metrix Plus MM 2 Moisture Meter Used?

Excess moisture can cause problems in wood, walls, paper products and stored materials. Visual inspection alone may not reliably indicate how much moisture is present.

The Metrix Plus MM 2 provides a quick numerical indication so that users can make better decisions before processing, installing, storing or accepting a material.

Common Reasons for Using the MM 2

Detect moisture in walls:
Useful for checking walls where dampness, seepage or excessive moisture is suspected.

Check wood before use:
Woodworkers and furniture manufacturers can check whether timber or wooden components contain excessive moisture before processing.

Inspect paper and packaging material:
Paper, cardboard and packaging materials can be checked before manufacturing, storage or dispatch.

Prevent moisture related damage:
Early detection can help identify conditions that may contribute to material deterioration, swelling, warping or mold development.

Improve quality control:
Manufacturers and inspectors can compare moisture readings instead of relying only on visual judgement.

Monitor drying:
Measurements can be taken repeatedly to determine whether a material is becoming progressively drier.

D. Suitable Buyers

The Metrix Plus MM 2 Multi Material Moisture Meter is suitable for a wide range of professional and industrial users.

Woodworking and Furniture Industry

Suitable for carpenters, furniture manufacturers, timber processors, plywood users and woodworking workshops that need to check moisture in wooden materials.

Building and Construction Professionals

Contractors, civil engineers, building inspectors and maintenance technicians can use the meter for moisture checking in walls and building materials.

Waterproofing and Restoration Companies

Useful for investigating suspected dampness, leakage affected areas and moisture conditions during building restoration work.

Paper and Packaging Industry

Suitable for paper manufacturers, printing companies, cardboard manufacturers, packaging companies and storage facilities.

Warehouses and Storage Facilities

Warehouse operators can use moisture measurements as part of incoming material inspection and storage monitoring.

Quality Control Departments

Useful for organizations requiring quick moisture checks during material receipt, production, inspection or final quality control.

Home and Property Inspection

The meter can also be used to investigate suspected damp areas in residential, commercial and industrial buildings.

Frequently Asked Questions

1. What is the Metrix Plus MM 2?

The Metrix Plus MM 2 is a digital multi material moisture meter designed for measuring moisture in wood, paper and wall materials.

2. What materials can the MM 2 measure?

The instrument has dedicated measurement modes for:

Wood
Paper
Wall

3. What is the moisture measurement range for wood?

The wood measurement range is 4 to 75 percent.

4. What is the measurement range for paper?

The paper measurement range is 4 to 90 percent.

5. What is the wall moisture measurement range?

The wall measurement range is 1.5 to 30 percent.

6. Can the Metrix Plus MM 2 be used as a wall dampness meter?

Yes. It includes a dedicated wall mode with a measurement range of 1.5 to 30 percent, making it useful for checking moisture conditions and suspected damp areas in walls.

7. Can it be used as a wood moisture meter?

Yes. The MM 2 has a dedicated wood measurement mode covering 4 to 75 percent moisture.

8. Is it suitable for paper and cardboard?

It has a dedicated paper measurement mode covering 4 to 90 percent. This makes it useful for moisture checking in paper and similar materials during production, storage and inspection.

9. Does the moisture meter have an alarm?

The instrument has a buzzer indication together with a 3 color backlit display.

10. Does the MM 2 have a reading hold function?

Yes. It provides a reading lock function, allowing the measured value to remain visible for convenient recording.

11. What type of display does it use?

The MM 2 uses a 1.7 inch 3 color backlit LCD display designed to provide clear and easy to read measurements.

12. What is the resolution of the meter?

The stated resolution is 0.1.

13. What type of sensor does the MM 2 use?

It has an integrated 10 mm electrode sensor.

14. What batteries are required?

The meter operates using two 1.5 V AAA batteries.
