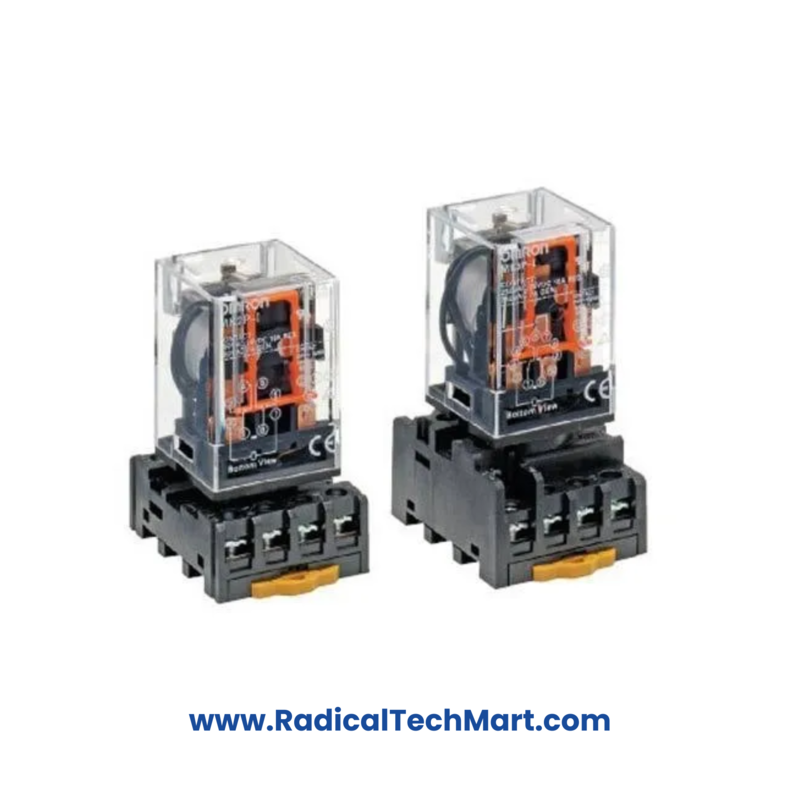

MK2 MY-3 Relay

Product Specifications and Details

Product Name: General Relay MK2 MY-3

Type: Electromagnetic relay

Voltage Rating: 12V DC or 24V DC (depending on variant)

Coil Resistance: Typically around 110 ohms (depends on voltage variant)

Contact Configuration:

• NO (Normally Open): 3 pins
• NC (Normally Closed): 1-2 pins

Switching Capacity:

• Current: 10A (depends on model)
• Voltage: 250V AC (or 30V DC depending on application)

Applications:

• Industrial automation systems
• Power control
• Motor protection circuits
• HVAC systems
• Electrical appliances and circuits
• Control panels

Relay Type: SPDT (Single Pole Double Throw) / DPDT (Double Pole Double Throw) depending on configuration

Physical Dimensions:

• Length: Approx. 32mm
• Width: Approx. 26mm
• Height: Approx. 28mm

Material:

• High-quality metal contacts
• Durable plastic housing
• Insulation class: Class B (up to 130°C)

Features:

• High voltage and current handling capacity
• Long lifespan with over 100,000 switching cycles
• Compact size suitable for control panels
• Reliable operation in demanding environments
• Easy mounting with standard socket types

Certifications:

• CE certified
• UL listed
• RoHS compliant

Applications in Automation:

• Control and monitoring in industrial equipment
• Switching operations in robotic systems
• Signal and safety control circuits
• Used in circuit protection and load management tasks

The MK2 MY-3 relay is a trusted component in automation systems where reliable switching is required for both high-voltage and low-voltage circuits. Ideal for long-term use and heavy-duty applications, it provides optimal performance and reliability.
