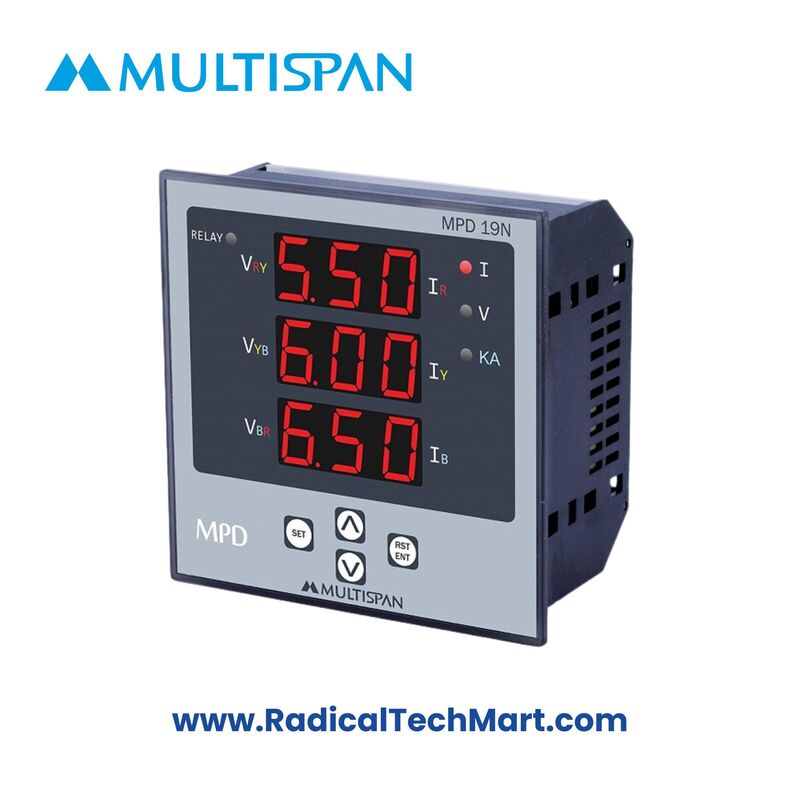

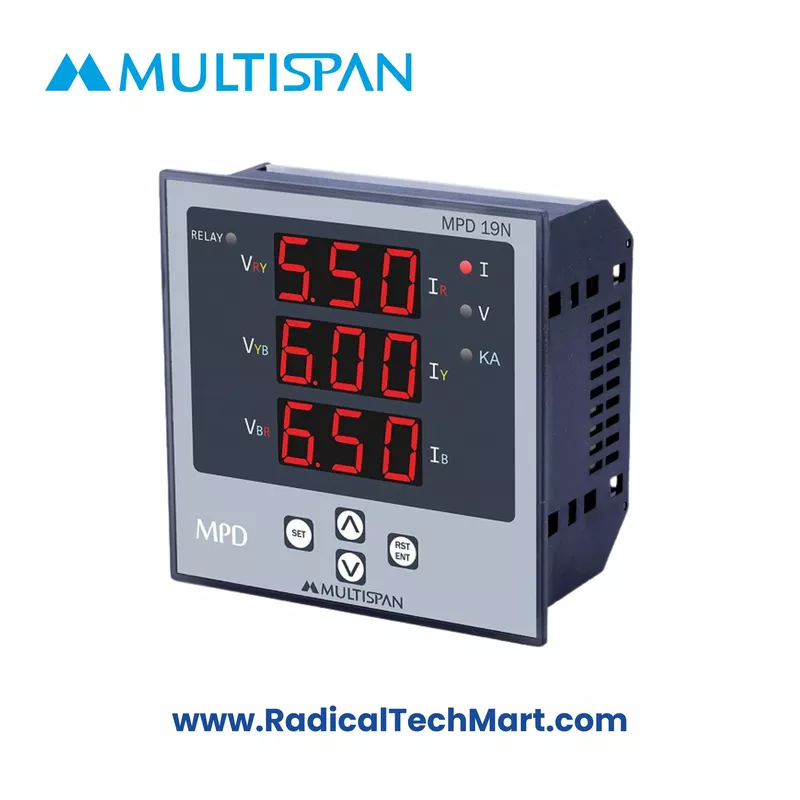

MPD-19N Multispan

Product Summary:
The Multispan MPD 19N is a compact and reliable 3-phase protection device featuring real-time voltage and current monitoring, tripping control, and 7+ configurable parameters for industrial machinery safety.

Key Features:

• 3-Line, 7-segment LED Display

• Monitors 3-Phase Voltage & Current

• 7+ Programmable Tripping Parameters

• Class 1 Accuracy

• Handles Current Range from 5A to 2000A

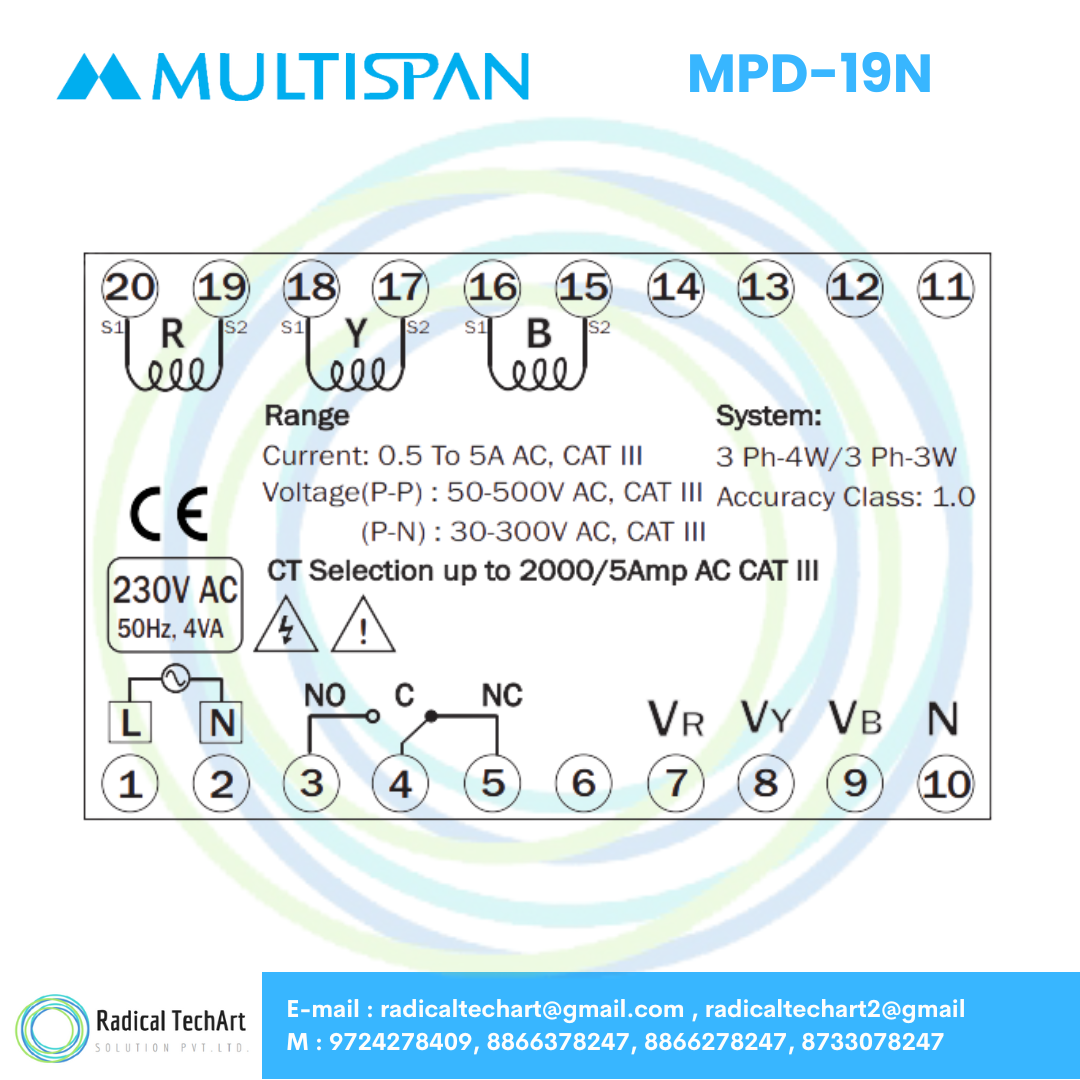

• Supports 3Ø 4-wire Input Signal

• Compact Size (96x96x50mm), Panel Cutout: 92x92mm

• Power Supply: 230V AC, 50 Hz

Applications:

• Stone Cutting Machines

• All Types of Grinding Machines

• Agricultural Motors & Pump Panels

• Industrial Automation Panels

Product Benefits:

• Enhances equipment life by preventing phase failures

• Quick diagnosis with bright LED display

• Reduces downtime through accurate fault detection

• Easy installation in standard panel sizes

• Programmable settings for customized protection

FAQs:

Q1. What parameters does the MPD 19N monitor and trip for?
A1. It monitors overcurrent, undercurrent, short circuit, single-phase unbalance, and locked rotor conditions.

Q2. Can the MPD 19N work with high current loads up to 2000 A?
A2. Yes, it supports a wide current range from 5A to 2000A, suitable for heavy-duty industrial applications.

Q3. Is this device suitable for agriculture pump panels?
A3. Absolutely, its protection features make it ideal for preventing motor failures in agricultural applications.
